| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems AC7F BULK |
| Series: | AC |
| Connector Type: | XLR |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc Alloy |
| Number of Contacts: | 7 |
| Termination Method: | Solder |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 75 °C |
| Minimum Operating Temperature: | -25 °C |
| IP Rating: | IP40 |
| Mating Cycles: | 1000 cycle |
| Wire Size: | 20 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 5 A |
| Voltage Rating: | 133 V |
| SKU: | AMEAC7F BULK |

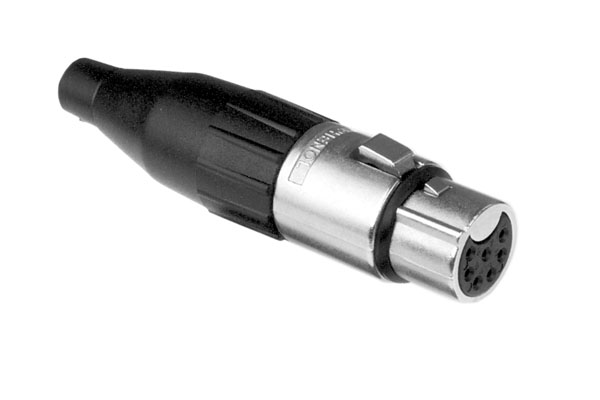

AC7F BULK
Specifications
Detailed Description
Introducing the AC7F BULK, a high-performance XLR female cable connector designed for professional audio applications. Featuring a durable die-cast zinc alloy housing with a sleek nickel finish, this connector ensures reliable signal transmission. With machined brass contacts plated in gold, it guarantees optimal conductivity and signal integrity. Suitable for 20 AWG wire and rated at 5A and 133V, it meets the demands of audio, video, and broadcast systems. With a temperature range of -25°C to 75°C and an IP40 rating for dust protection, it is built to withstand harsh environments. Whether you're a musician, sound engineer, or broadcaster, the AC7F Bulk provides the connectivity you can trust.
