| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems AC7MP |
| Series: | AC "Z" |
| Connector Type: | XLR |
| Gender: | Male |
| Housing Material: | Die-Cast Zinc Alloy |
| Number of Contacts: | 7 |
| Mount Type: | Chassis Mount |
| Termination Method: | Solder |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 75 °C |
| Minimum Operating Temperature: | -25 °C |
| IP Rating: | IP40 |
| Housing Color: | Nickel |
| Mating Cycles: | 1000 cycle |
| Wire Size: | 20 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 5 A |
| Voltage Rating: | 133 V |
| SKU: | AMEAC7MP |
AC7MP
Specifications
Detailed Description

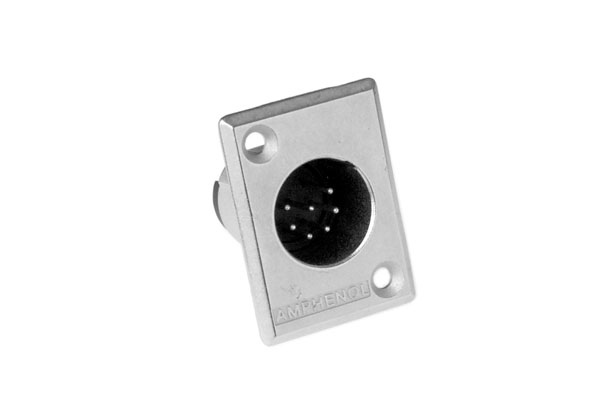

Introducing the AC7MP, a rugged and reliable 7 Pole XLR Male Chassis Mount connector from the AC "Z" series. Designed for professional audio, video, and broadcast applications, this connector features a P Flange and machined contacts for secure installations. The die-cast zinc alloy housing with a nickel finish ensures durability, while the gold-plated brass contacts guarantee optimal signal transmission. With a maximum operating temperature of 75°C and an IP40 rating for dust protection, the AC7MP is suitable for a wide range of environments. Its solder termination method and 20 AWG wire size make it easy to install, and with a current rating of 5A and voltage rating of 133V, it meets industry standards for performance. UL 94V-0 rated for flammability, this connector is not only high-quality but also safe to use. Trust the AC7MP for your connectivity needs in demanding audio and video setups.
