| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ACJM-PH |
| Series: | M |
| Connector Type: | Phone |
| Gender: | Female |
| Housing Material: | Glass-Filled Nylon |
| Number of Contacts: | 2 |
| Mount Type: | PCB Mount |
| Termination Method: | Solder |
| Contact Material: | Brass |
| Maximum Operating Temperature: | 70 °C |
| Minimum Operating Temperature: | -25 °C |
| IP Rating: | IP40 |
| Mount Angle: | Straight |
| Mating Cycles: | 10000 cycle |
| Flammability Rating: | UL 94HB, UL 94V-0 |
| Current Rating: | 10 A |
| Voltage Rating: | 34 V |
| SKU: | AMEACJM-PH |

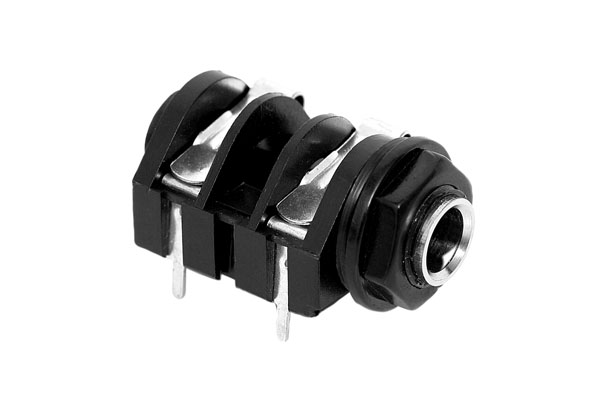

ACJM-PH
Specifications
Detailed Description
Introducing the ACJM-PH, a high-performance 1/4 inch Single Vertical PCB Phone Jack designed for seamless audio connectivity. This Mono jack features a durable construction with a Metal Bore and Plastic Nut, ensuring secure connections. The female connector type and two contacts offer reliable signal transmission. With a straight mount angle and PCB termination method, installation is efficient. Meeting IP40 standards for protection against solids, this jack is suitable for various environments. Its UL 94HB and 94V-0 flammability ratings guarantee safety. Operating between -25°C to 70°C, it is versatile. RoHS compliant and with a current rating of 10A and voltage rating of 34V, the ACJM-PH is ideal for audio, video, and broadcast applications. Trust in its 10000 mating cycle durability for long-lasting performance. Elevate your connectivity with this essential component.
