ACPS-TN

AMEACPS-TN
Heilind Number:AMEACPS-TN
Manufacturer:Amphenol Sine Systems
Manufacturer Number:ACPS-TN
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

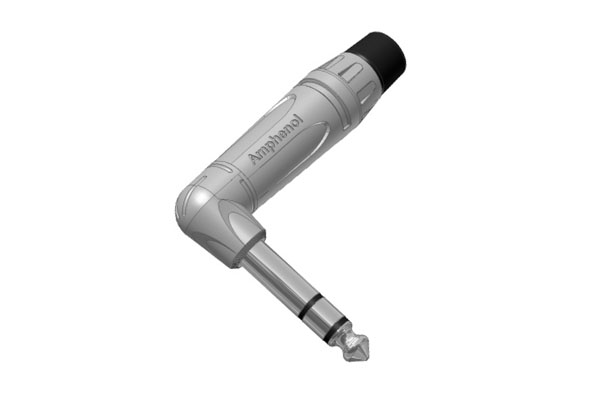

ACPS-TN 1/4 in Right Angle Audio Phone Plug, Stereo, Musician Range, Nickel Finish

More >>

Specifications

AttributeValue
Product Category:
Audio, Video & Broadcast Connectors & Accessories Audio, Video & Broadcast Connectors
Manufacturer:Amphenol Sine Systems
Manufacturer Part Number:Amphenol Sine Systems ACPS-TN
Gender:Male
Series:M II
IP Rating:IP40
Wire Size:18 AWG
Mount Angle:Right Angle
Housing Color:Nickel
Mating Cycles:1000 cycle
Connector Type:Phone
Current Rating:10 A
Contact Plating:Nickel
Contact Material:Brass
Housing Material:Die-Cast Zinc Alloy
Number of Contacts:3
Termination Method:Solder
Flammability Rating:UL 94HB, UL 94V-0
Maximum Operating Temperature:70 °C
Minimum Operating Temperature:-25 °C
SKU:AMEACPS-TN

Detailed Description

Introducing the ACPS-TN 1/4" Right Angle Audio Phone Plug, a must-have for musicians and audio professionals seeking high-quality connectivity. Part of the M II series, this plug features a durable die-cast zinc alloy housing with a sleek nickel finish. Engineered for optimal performance, it offers stereo functionality with 3 contacts and solder termination. The brass contacts with nickel plating ensure reliable signal transmission, even in demanding environments. With a wide operating temperature range from -25°C to 70°C and an IP40 rating, this plug is built to last. Its right-angle design allows for convenient cable management, while the UL 94HB and 94V-0 flammability ratings guarantee safety. RoHS compliant and rated for 10A current, the ACPS-TN is a versatile choice for audio, video, and broadcast applications. Trust in its 1000 mating cycles and compatibility with 18 AWG wire, making it a dependable solution for any setup. Elevate your connectivity with this essential component from our Plugs & Jacks campaign.
