| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems AG5M |
| Series: | AG |
| Connector Type: | XLR |
| Gender: | Male |
| Housing Material: | Bronze, Zinc |
| Number of Contacts: | 5 |
| Mount Type: | Chassis Mount |
| Termination Method: | Solder |
| Contact Material: | Brass |
| Contact Plating: | Gold Over Silver |
| Maximum Operating Temperature: | 80 °C |
| Minimum Operating Temperature: | -30 °C |
| IP Rating: | IP00 |
| Housing Color: | Nickel |
| Mating Cycles: | 5000 cycle |
| Wire Size: | 24 AWG - 0.5 mm² |
| Flammability Rating: | UL 94V-HB |
| Current Rating: | 4 A |
| SKU: | AMEAG5M |

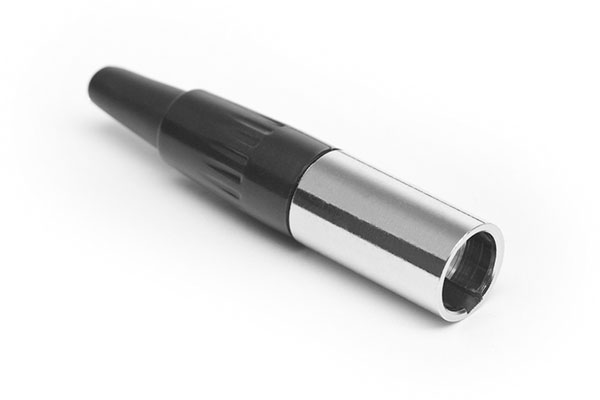

AG5M
Specifications
Detailed Description
Introducing the AG5M 5 Pole Mini XLR Chassis Mount connector, a durable and reliable solution for your audio, video, and broadcast connectivity needs. Designed for male gender with a housing made of zinc and bronze, this connector ensures secure and stable connections. With 5 gold-plated brass contacts and a solder termination method, it guarantees excellent conductivity and signal integrity. Operating smoothly in temperatures ranging from -30°C to 80°C, this connector is suitable for a variety of environments. Its nickel housing color and UL 94V-HB flammability rating offer additional safety and visual appeal. RoHS compliant and with a maximum current rating of 4A, the AG5M is the perfect choice for high-performance applications. Trust in its 5000 mating cycles and 24 AWG wire size compatibility for long-lasting, efficient connectivity. Explore the XLR Series and enhance your audio and video setups with the AG5M connector.
