| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems AT13-12PB-BM03 |
| Color: | Black |
| Series: | BoardLock™ AT |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 12 |
| Mount Type: | Panel Mount, PCB Mount, Through Hole |
| Termination Method: | Solder |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP67 |
| Mount Angle: | Right Angle |
| Seal Material: | Silicone Rubber |
| Mating Cycles: | 100 cycle |
| Wire Size: | 20 - 14 AWG |
| Current Rating: | 13 A |
| Voltage Rating: | 250 V |
| SKU: | AMEAT13-12PB-BM03 |

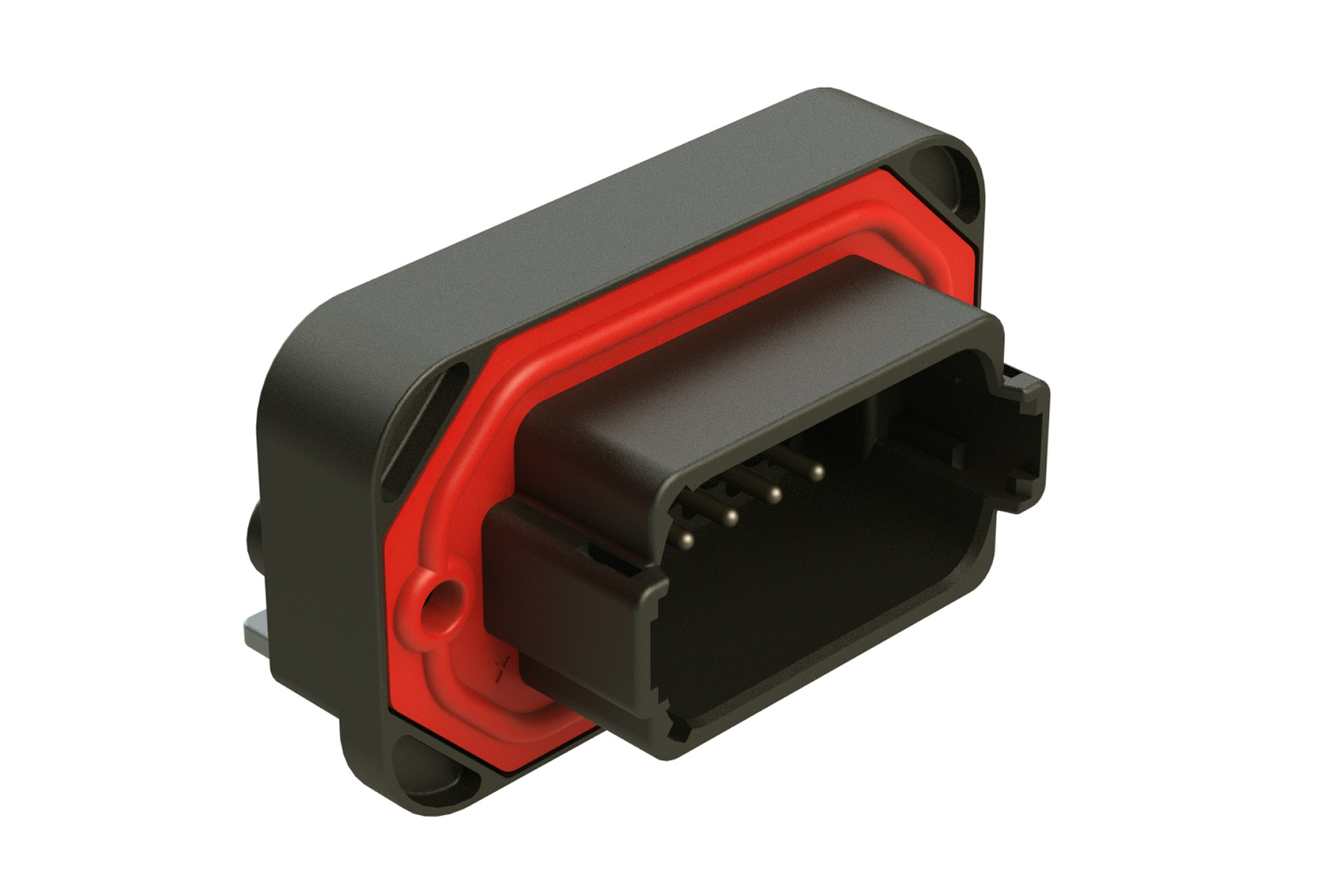

AT13-12PB-BM03
Specifications
Detailed Description
Introducing the BoardLock™ AT Male Connector, SKU AT13-12PB-BM03, designed for reliable connectivity in automotive applications. Featuring a durable black plastic housing, this connector ensures secure panel, through hole, or PCB mounting with its solder termination method. With a maximum operating temperature of 125°C and an IP67 rating, it offers dependable performance in harsh environments. The 12 tin-plated contacts accommodate wire sizes ranging from 20 to 14 AWG, supporting a current rating of 13A and a voltage rating of 250V. Engineered for longevity, it boasts a mating cycle of 100 cycles. RoHS compliant and suitable for right-angle mounting, this connector is an essential component for automotive systems where high reliability is paramount.
