| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ATHD04-1-8P-8G-M10 |
| Color: | Black |
| Gender: | Male |
| IP Rating: | IP68 |
| Wire Size: | 8 AWG |
| Contact Size: | 8 |
| Mating Cycles: | 100 cycle |
| Current Rating: | 75 A |
| Voltage Rating: | 600 V |
| Contact Plating: | Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Nylon |
| Number of Contacts: | 1 |
| Flammability Rating: | FT1 |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| Series: | ATHD |
| SKU: | AMEATHD04-1-8P-8G-M10 |

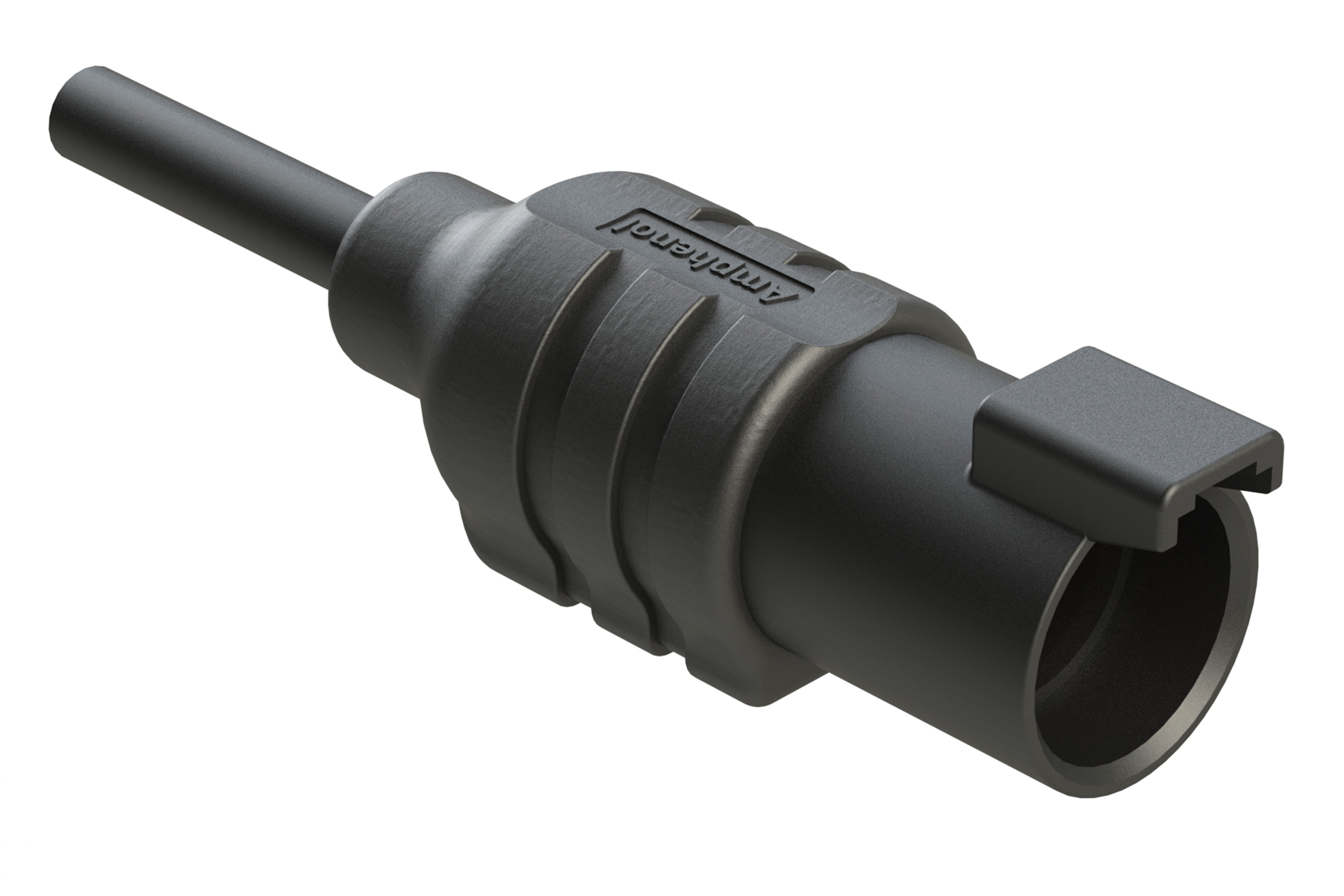

ATHD04-1-8P-8G-M10
Specifications
Detailed Description
Introducing the ATHD04-1-8P-8G-M10, a robust and reliable heavy-duty power connector designed for demanding industrial applications. With its durable black nylon housing and IP68 rating, this connector ensures secure and waterproof connections, even in harsh environments. Featuring a single copper alloy contact plated with nickel, it guarantees efficient power transmission with a current rating of 75A and a voltage rating of 600V. The contact size 8 and wire size 8 AWG accommodate high-power requirements, while the wide operating temperature range from -40°C to 100°C guarantees performance in extreme conditions. With a mating cycle of 100, this connector offers long-term durability. Part of the Structure Plus™ Series, it is the perfect solution for heavy-duty power connectivity in industrial settings.
