| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ATHD04-1-8P-PM05 |
| Color: | Black |
| Series: | PanelMate™ ATHD |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 1 |
| Mount Type: | Panel Mount |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP69K |
| Contact Size: | 8 |
| Mating Cycles: | 100 cycle |
| Wire Size: | 10 - 8 AWG |
| Current Rating: | 60 A |
| Voltage Rating: | 500 V |
| SKU: | AMEATHD04-1-8P-PM05 |

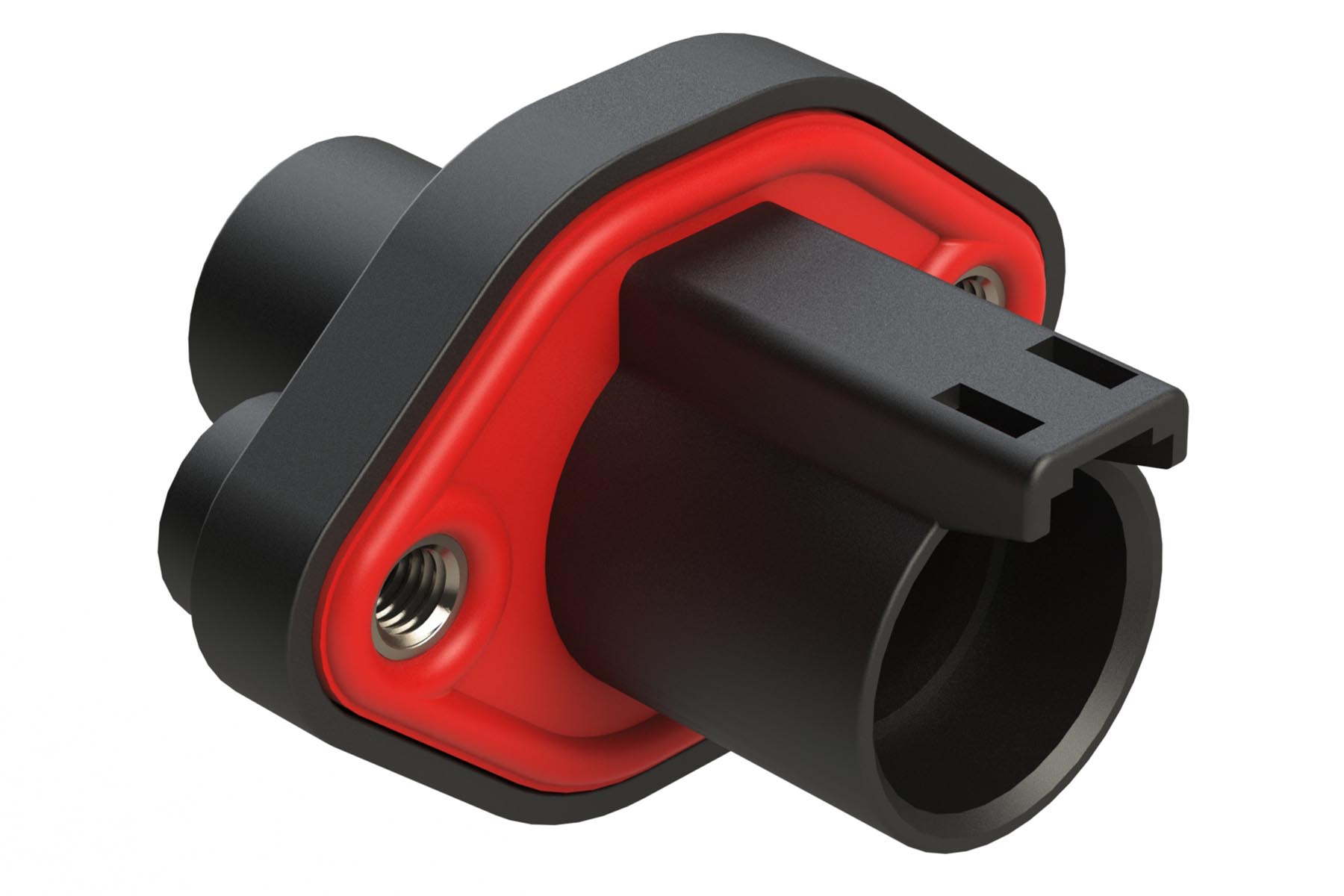

ATHD04-1-8P-PM05
| Heilind Number: | AMEATHD04-1-8P-PM05 |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Number: | ATHD04-1-8P-PM05 |
| Datasheet: | Datasheet |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the PanelMate™ ATHD04-1-8P-PM05, a heavy-duty power connector designed for rugged environments. With a black plastic housing and IP69K rating, this connector ensures reliable performance even in harsh conditions. Featuring one contact with a contact size of 8, it's suitable for high-power applications. The panel mount design allows for easy installation. Rated for a maximum operating temperature of 125°C and a minimum of -55°C, it's built to withstand extreme temperatures. With a current rating of 60A and a voltage rating of 500V, this connector is ideal for heavy-duty power transmission. The ATHD04-1-8P-PM05 is part of the Panelmate™ Series, known for its quality and durability. Trust in this connector for your most demanding power connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
