| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ATHP062S25ELD-S2 |
| Color: | Orange |
| Gender: | Female |
| IP Rating: | IP67 |
| Wire Size: | 2.5 mm², 4 mm², 6 mm² |
| Contact Size: | 2.5 mm |
| Mating Cycles: | 100 cycle |
| Current Rating: | 20 A, 25 A, 35 A |
| Voltage Rating: | 1000 V |
| Contact Plating: | Silver |
| Contact Material: | Copper Alloy |
| Housing Material: | Plastic |
| Number of Contacts: | 2 |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 130 °C |
| Minimum Operating Temperature: | -40 °C |
| Series: | MagnaMate™ ATHP Mini |
| SKU: | AMEATHP062S25ELD-S2 |
ATHP062S25ELD-S2
Specifications
Detailed Description

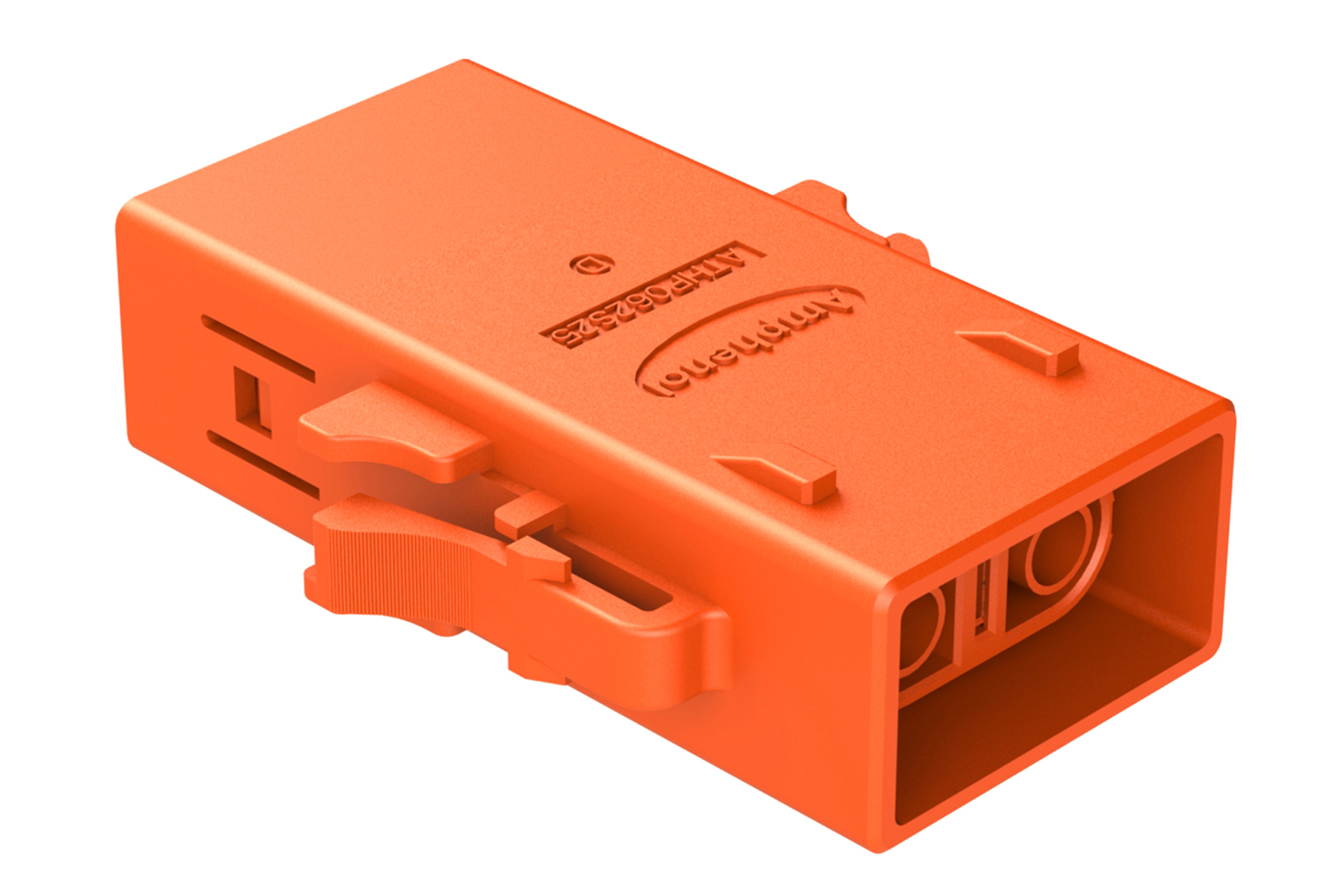

Introducing the MagnaMate™ ATHP Mini Series Female Connector, featuring a vibrant Orange color for easy identification. Crafted with durable Plastic housing, this connector ensures reliable performance even in harsh environments with an IP67 rating. With 2 Copper Alloy contacts plated in Silver, it guarantees efficient conductivity. Operating between -40°C to 130°C, it suits a wide range of applications. Its compact design accommodates 2.5mm contacts and can handle wire sizes of 2.5mm², 4mm², and 6mm². Rated for 1000V and offering current ratings of 20A, 25A, and 35A, it's ideal for heavy-duty power applications. Certified with UL 94V-0 flammability rating, it prioritizes safety. The ATHP062S25ELD-S2 is part of the Magnamate™ Series, delivering reliable connectivity with 100 mating cycles. Upgrade your power connections with this high-performance connector.
