| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ATM13-08PB-BM04 |
| Color: | Gray |
| Gender: | Male |
| IP Rating: | IP67 |
| Wire Size: | 22 - 16 AWG |
| Mount Type: | Panel Mount, PCB Mount, Through Hole |
| Mount Angle: | Right Angle |
| Mating Cycles: | 100 cycle |
| Seal Material: | Silicone Rubber |
| Current Rating: | 7.5 A |
| Voltage Rating: | 250 V |
| Contact Plating: | Tin |
| Housing Material: | Plastic |
| Number of Contacts: | 8 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Series: | BoardLock™ ATM |
| SKU: | AMEATM13-08PB-BM04 |

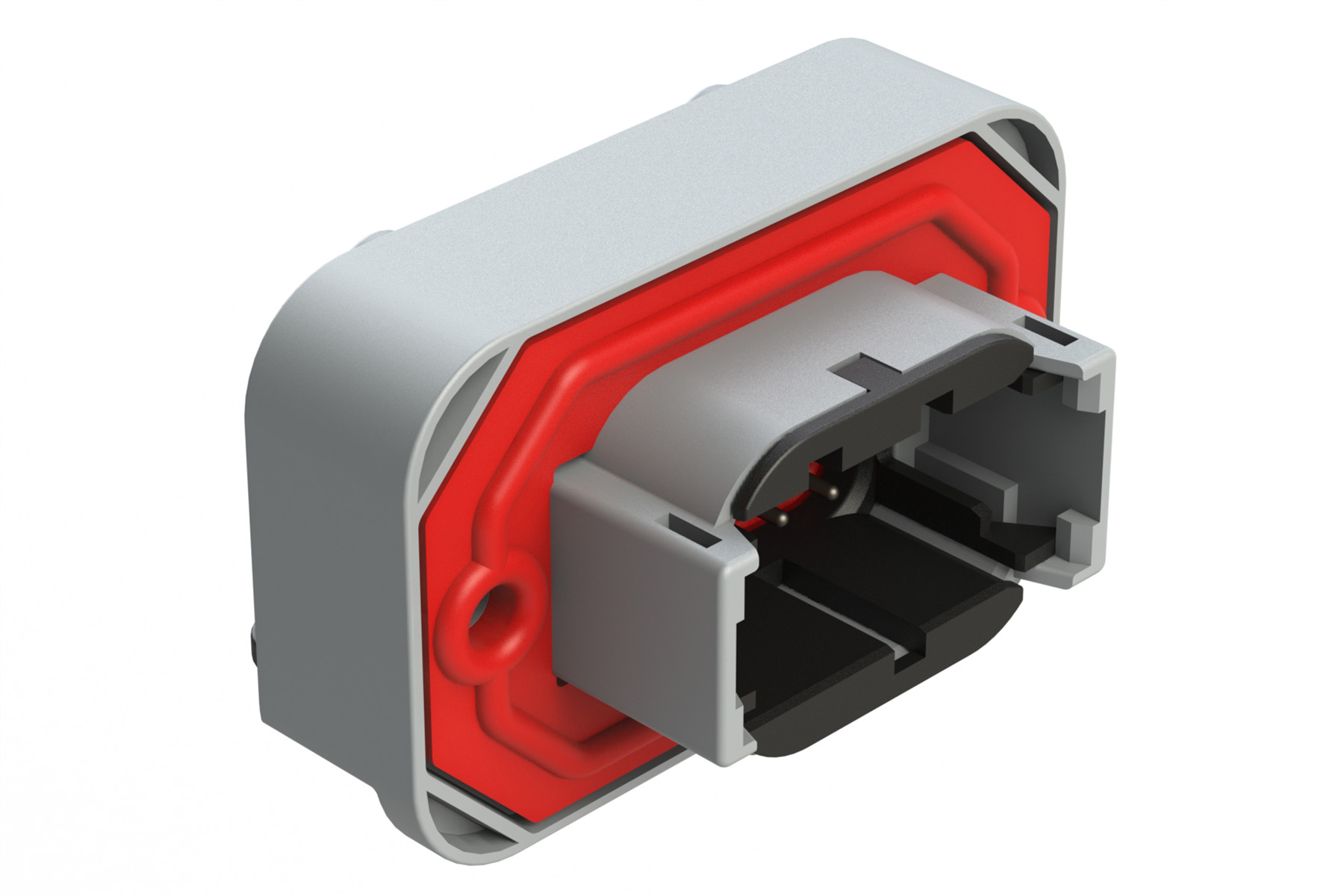

ATM13-08PB-BM04
Specifications
Detailed Description
Introducing the ATM13-08PB-BM04, a crucial component in our BoardLock™ ATM series designed for male connectors in automotive applications. Crafted with durable gray plastic housing and featuring eight tin-plated contacts, this connector ensures reliable performance even in harsh environments with its IP67 rating. Suitable for panel, through hole, and PCB mounting with a right-angle orientation, it offers versatility in installation. Operating flawlessly between -55°C to 125°C, it guarantees functionality in extreme temperatures. With a 7.5A current rating and 250V voltage rating, it meets high power demands. The silicone rubber seal and 100 mating cycles further enhance its durability. Compliant with automotive connector standards, this component is a must-have for robust and secure electrical connections in vehicles.
