| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ATM13-08PD-BM03 |
| Color: | Gray |
| Series: | BoardLock™ ATM |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 8 |
| Mount Type: | Panel Mount, PCB Mount, Through Hole |
| Termination Method: | Solder |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP67 |
| Mount Angle: | Right Angle |
| Seal Material: | Silicone Rubber |
| Mating Cycles: | 100 cycle |
| Wire Size: | 22 - 16 AWG |
| Current Rating: | 7.5 A |
| Voltage Rating: | 250 V |
| SKU: | AMEATM13-08PD-BM03 |

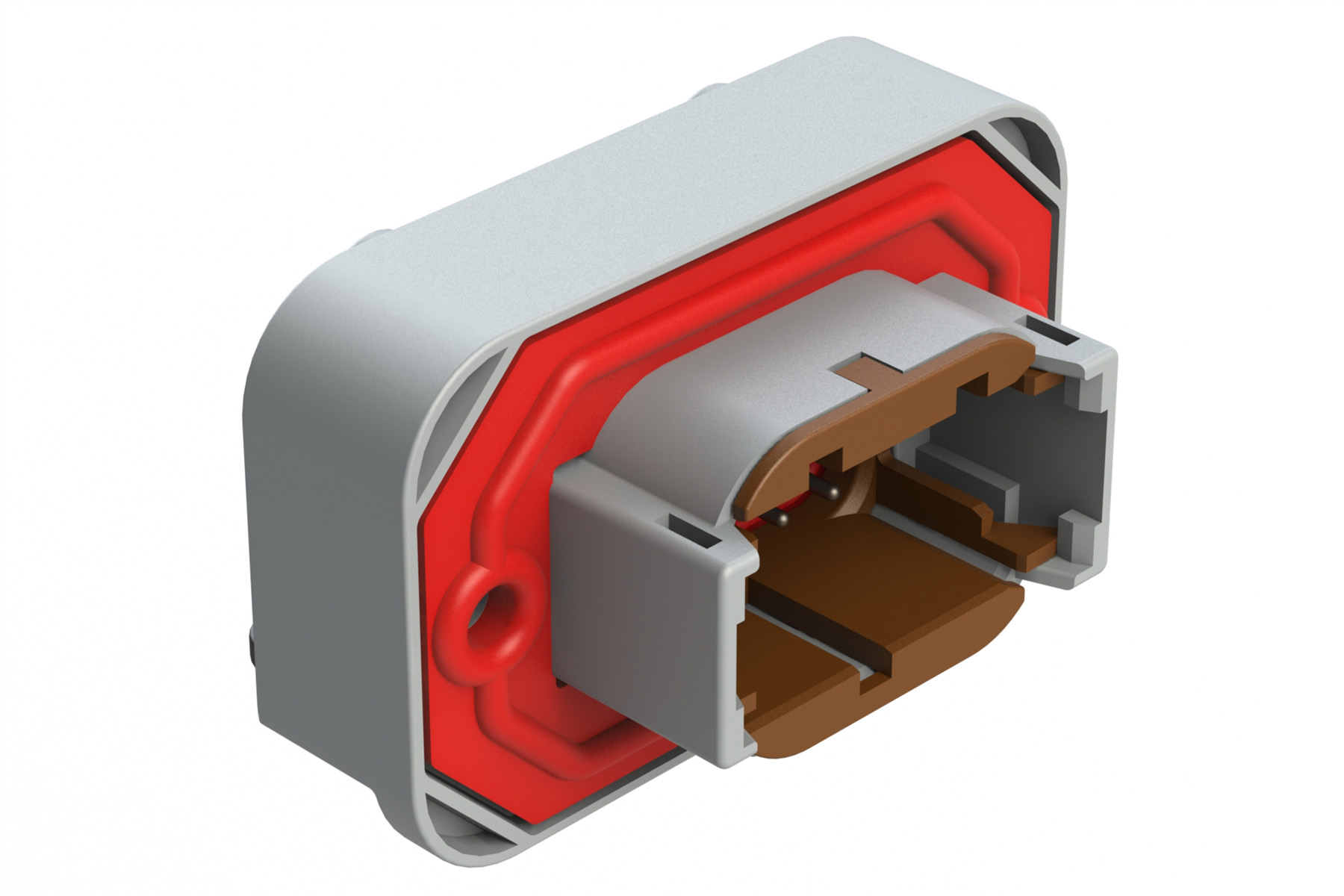

ATM13-08PD-BM03
Specifications
Detailed Description
Introducing the ATM13-08PD-BM03, a crucial component in our BoardLock™ ATM series designed for automotive applications. This male connector, featuring a durable plastic housing in a sleek Gray finish, ensures reliable performance even in harsh environments with its IP67 rating. With 8 contacts, it offers secure connectivity, perfect for panel mount, Through Hole, or PCB installations. Solder termination with tin plating guarantees excellent conductivity. Operating efficiently between -55°C and 125°C, this connector is built to withstand extreme temperatures. The silicone rubber seal provides additional protection, making it ideal for automotive use. Offering a current rating of 7.5A and voltage rating of 250V, it meets industry standards for performance. With a mating cycle of 100, it ensures longevity in use. Suitable for wire sizes 22-16 AWG, it caters to a range of applications. Whether for automotive systems or other industrial uses, the ATM13-08PD-BM03 is a reliable solution. Explore the full ATM Series™ and Boardlock™ Series for comprehensive connectivity options.
