| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ATM13-12PB-BM04 |
| Color: | Gray |
| Gender: | Male |
| IP Rating: | IP67 |
| Wire Size: | 22 - 16 AWG |
| Mount Type: | Panel Mount, PCB Mount, Through Hole |
| Mount Angle: | Right Angle |
| Mating Cycles: | 100 cycle |
| Seal Material: | Silicone Rubber |
| Current Rating: | 7.5 A |
| Voltage Rating: | 250 V |
| Contact Plating: | Tin |
| Housing Material: | Plastic |
| Number of Contacts: | 12 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Series: | BoardLock™ ATM |
| SKU: | AMEATM13-12PB-BM04 |

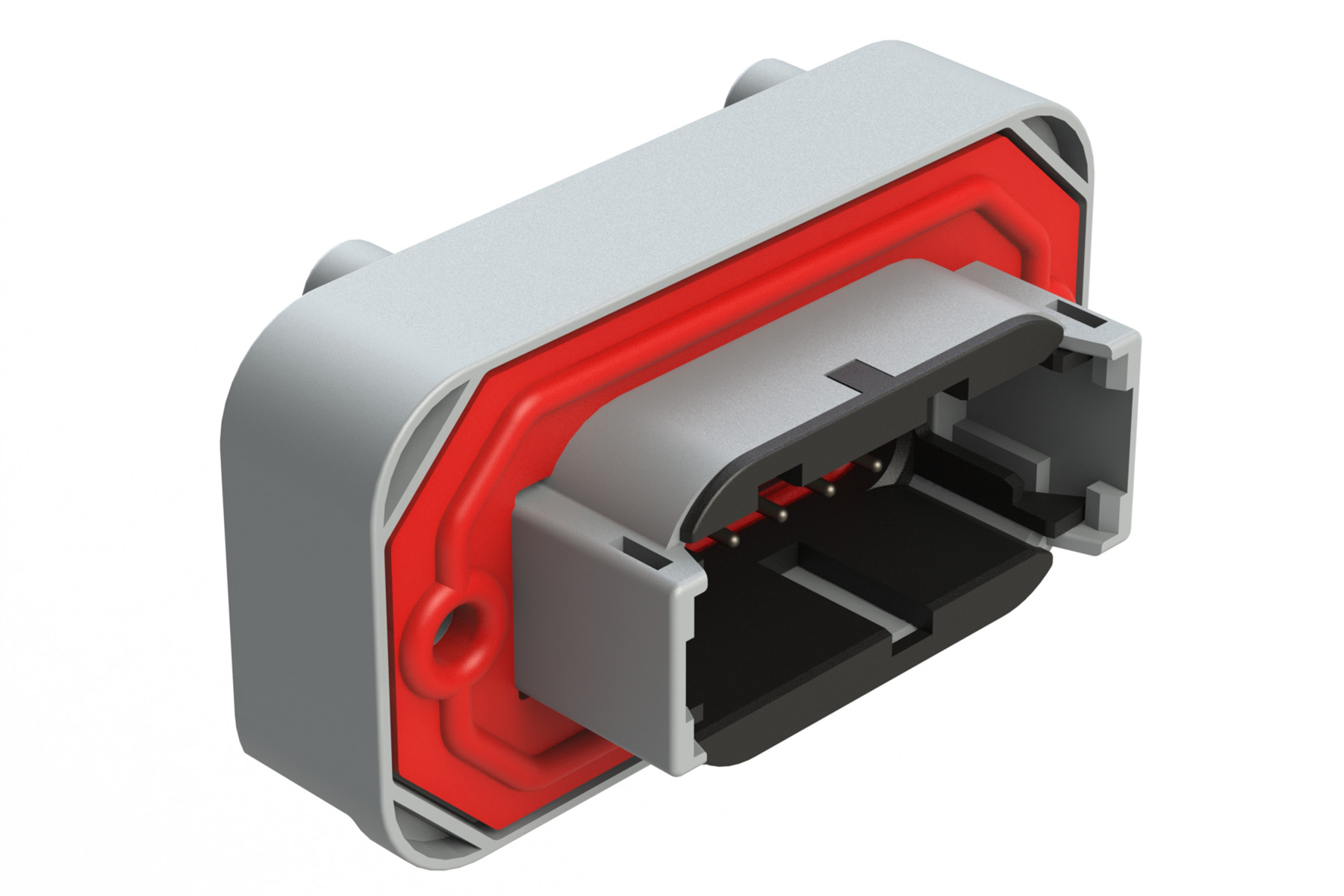

ATM13-12PB-BM04
Specifications
Detailed Description
Introducing the ATM13-12PB-BM04, a rugged and reliable connector designed for automotive applications. Featuring a sleek gray housing made of durable plastic, this male connector is part of the BoardLock™ ATM series, ensuring secure and stable connections. With 12 contacts and a panel mount, through hole, or PCB mount option, it offers flexibility in installation. The termination method is solder, with tin contact plating for enhanced conductivity. Operating temperature ranges from -55°C to 125°C, with an IP67 rating for protection against dust and water ingress. The right-angle mount angle and silicone rubber seal ensure optimal performance in demanding environments. With a current rating of 7.5A and voltage rating of 250V, this connector is suitable for a wide range of automotive electrical systems. ROHS compliant and boasting a mating cycle of 100, it guarantees long-lasting quality and performance. Upgrade your automotive connectors with the ATM1312PBBM04.
