| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ATM13-12PC-BM02 |
| Color: | Gray |
| Gender: | Male |
| IP Rating: | IP67 |
| Wire Size: | 22 - 16 AWG |
| Mount Type: | Panel Mount, PCB Mount, Through Hole |
| Mount Angle: | Right Angle |
| Mating Cycles: | 100 cycle |
| Seal Material: | Silicone Rubber |
| Current Rating: | 7.5 A |
| Voltage Rating: | 250 V |
| Contact Plating: | Gold |
| Housing Material: | Plastic |
| Number of Contacts: | 12 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Series: | BoardLock™ ATM |
| SKU: | AMEATM13-12PC-BM02 |

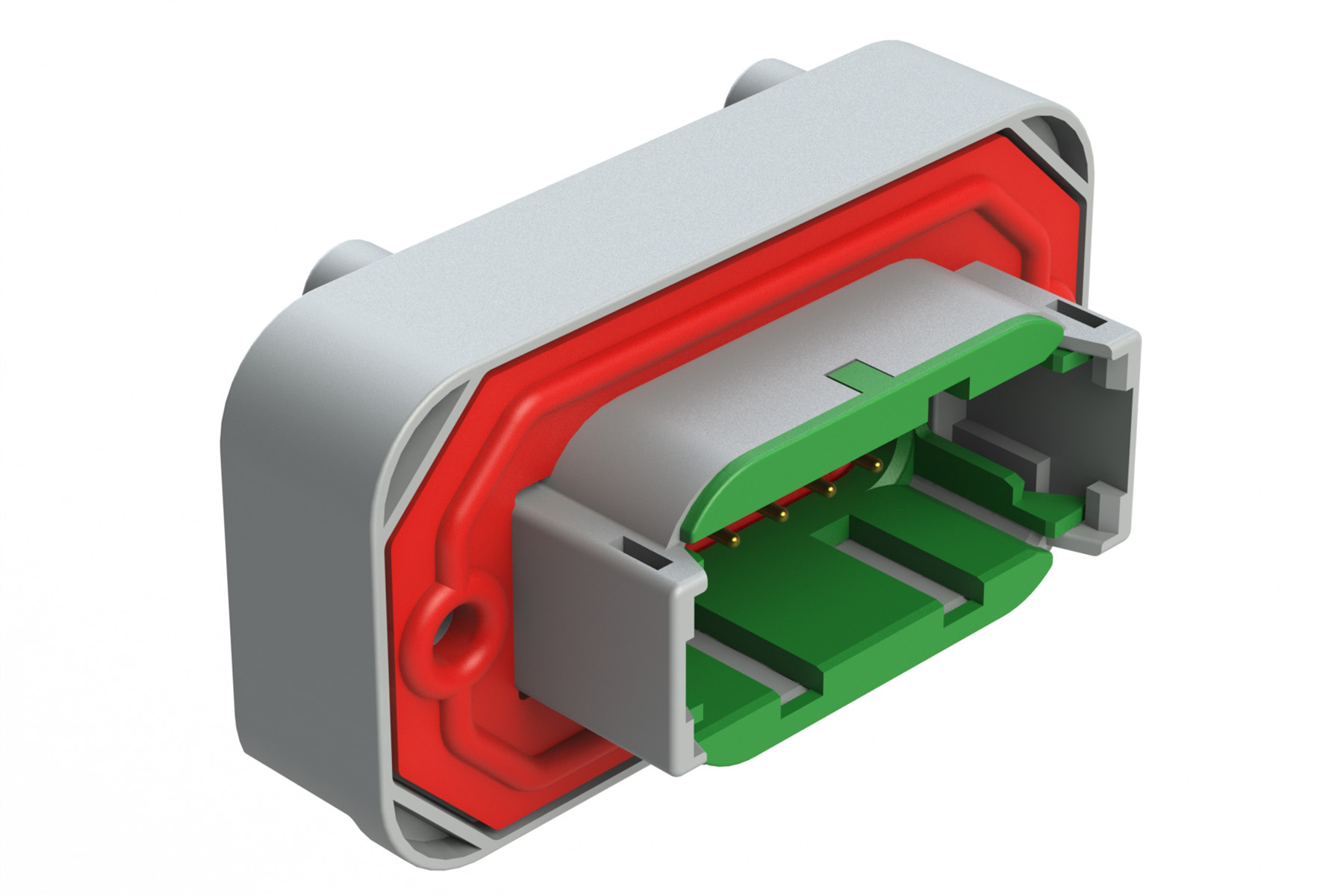

ATM13-12PC-BM02
Specifications
Detailed Description
Introducing the ATM13-12PC-BM02, a vital component in the realm of automotive connectors. This male connector, part of the BoardLock™ ATM series, boasts a durable plastic housing in a sleek Gray finish. With 12 gold-plated contacts, it ensures reliable conductivity even in harsh environments, with an impressive IP67 rating for dust and water resistance. Suitable for panel mount, Through Hole, and PCB applications, its versatile termination method via solder guarantees secure connections. Operating flawlessly from -55°C to 125°C, it's built to withstand extreme temperatures. The silicone rubber seal further enhances its durability, allowing for up to 100 mating cycles. Designed for wire sizes ranging from 22 to 16 AWG, it offers a current rating of 7.5 A and a voltage rating of 250 V, making it ideal for various automotive electrical systems. Trust in the ATM1312PCBM02 for high-performance connectivity in automotive applications.
