| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ATM13-12PC-BM04 |
| Color: | Gray |
| Series: | BoardLock™ ATM |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 12 |
| Mount Type: | Panel Mount, PCB Mount, Through Hole |
| Termination Method: | Solder |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP67 |
| Mount Angle: | Right Angle |
| Seal Material: | Silicone Rubber |
| Mating Cycles: | 100 cycle |
| Wire Size: | 22 - 16 AWG |
| Current Rating: | 7.5 A |
| Voltage Rating: | 250 V |
| SKU: | AMEATM13-12PC-BM04 |

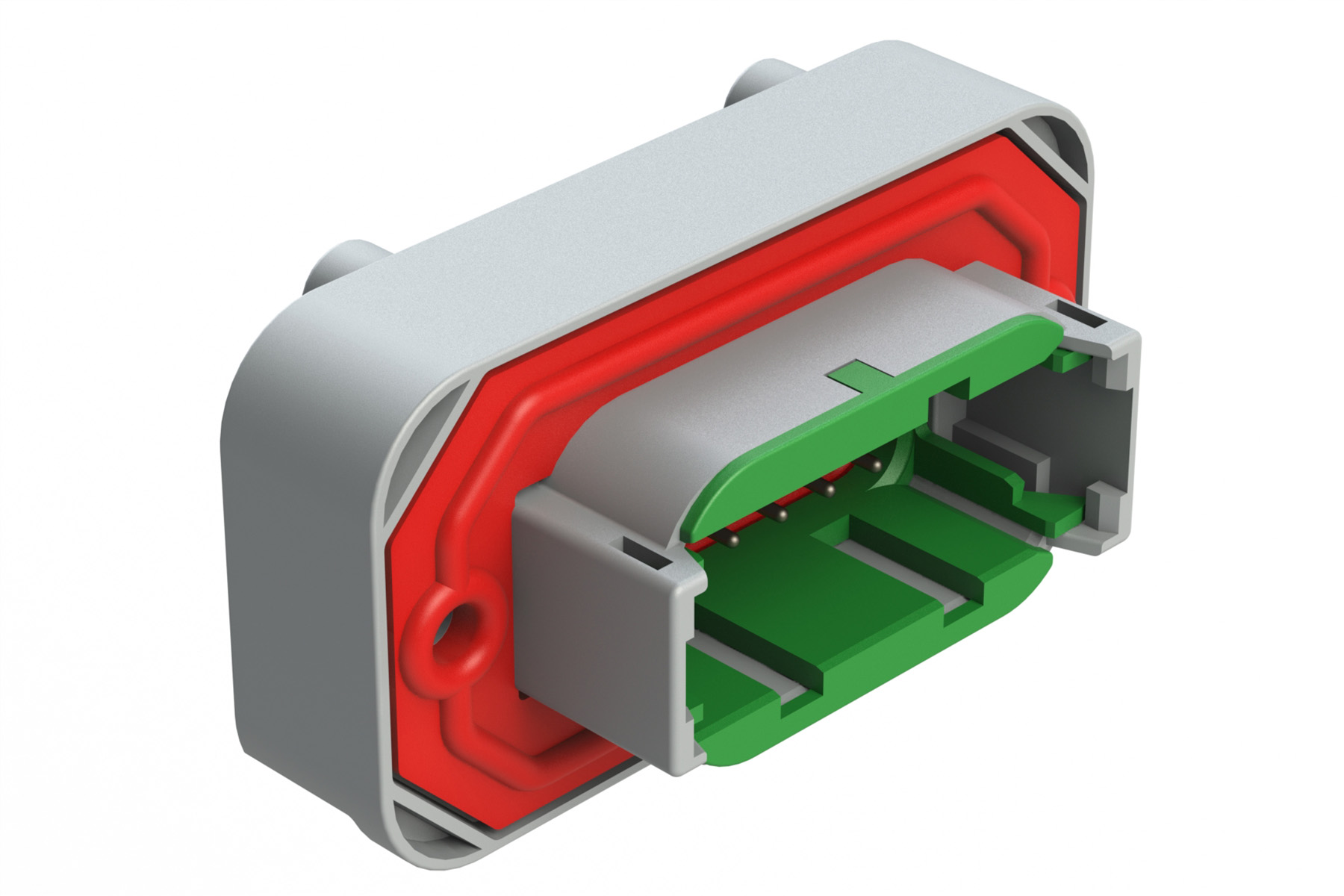

ATM13-12PC-BM04
Specifications
Detailed Description
Introducing the ATM13-12PC-BM04, a rugged and reliable connector designed for male applications in automotive and industrial settings. Part of the BoardLock™ ATM series, this gray-colored connector features a robust plastic housing with an IP67 rating, ensuring protection against dust and water ingress. With a panel mount, through-hole, or PCB mount option, installation is versatile and secure. Solder termination and tin contact plating guarantee optimal conductivity even in harsh environments, with a wide operating temperature range from -55°C to 125°C. The silicone rubber seal and 100 mating cycles provide durability and longevity. Suitable for wire sizes 22 to 16 AWG, this connector offers a current rating of 7.5A and voltage rating of 250V, making it ideal for power and signal transmission in demanding applications. Trust in the ATM Series™ BoardLock™ for high-quality connectivity solutions in your projects.
