| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ATM13-12PD-BM02 |
| Color: | Gray |
| Series: | BoardLock™ ATM |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 12 |
| Mount Type: | Panel Mount, PCB Mount, Through Hole |
| Termination Method: | Solder |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP67 |
| Mount Angle: | Right Angle |
| Seal Material: | Silicone Rubber |
| Mating Cycles: | 100 cycle |
| Wire Size: | 22 - 16 AWG |
| Current Rating: | 7.5 A |
| Voltage Rating: | 250 V |
| SKU: | AMEATM13-12PD-BM02 |
ATM13-12PD-BM02
Specifications
Detailed Description

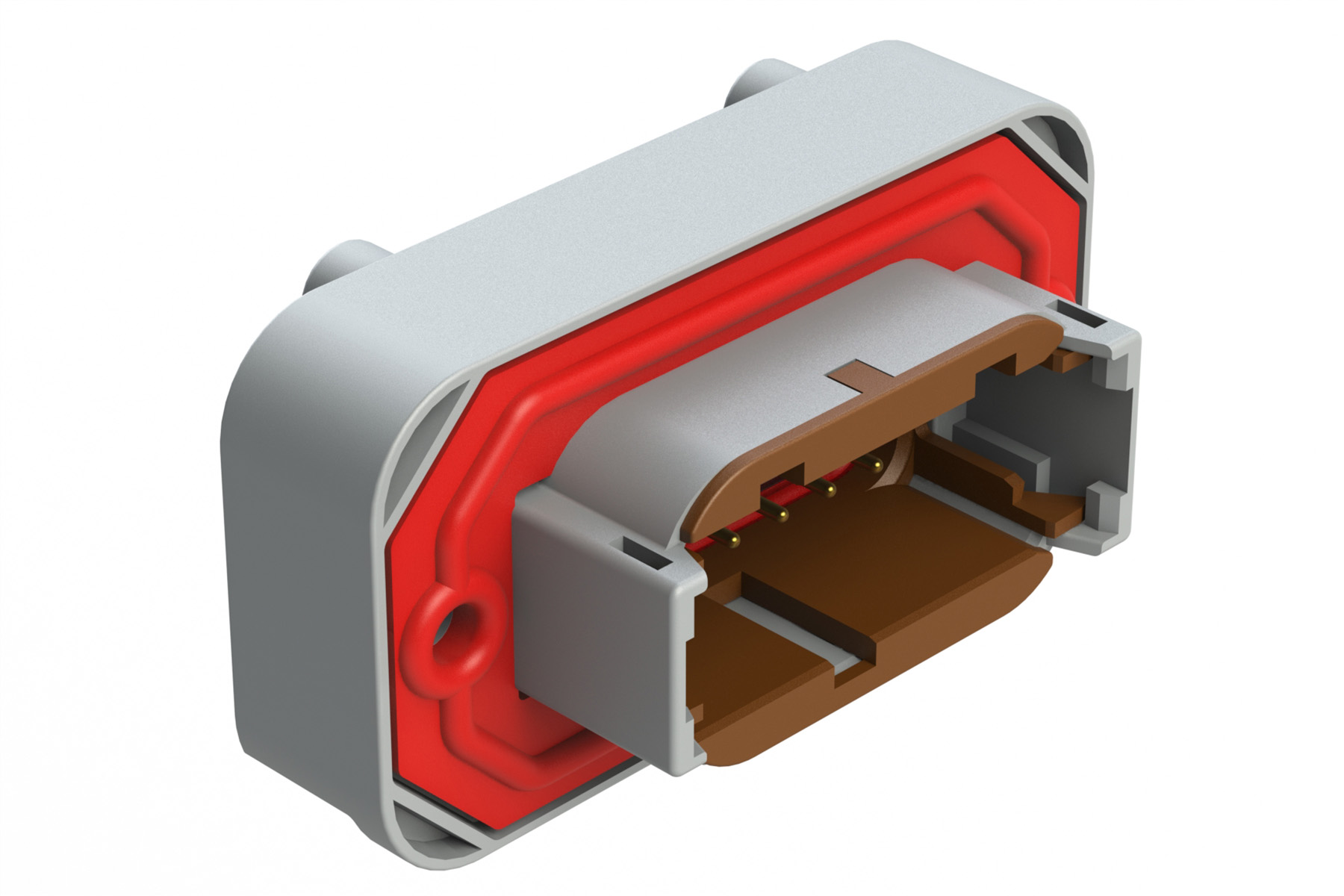

Introducing the BoardLock™ ATM Series™ Male Connector, SKU ATM13-12PD-BM02, designed for reliable automotive applications. Featuring a sleek Gray housing crafted from durable plastic and boasting a secure panel mount, Through Hole, and PCB mount compatibility, this connector ensures effortless installation. With 12 gold-plated contacts, it guarantees optimal conductivity even in harsh environments, rated IP67 for dust and water resistance. Operating flawlessly between -55°C to 125°C, it's ideal for a wide range of automotive systems. The Silicone Rubber seal material and 100 mating cycles further enhance its durability. Suitable for wire sizes 22-16 AWG, it offers a current rating of 7.5A and voltage rating of 250V, meeting rigorous automotive standards. Upgrade your connectivity with the ATM1312PDBM02, a true industry leader.
