| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ATM13-12PD-BM04 |
| Color: | Gray |
| Gender: | Male |
| IP Rating: | IP67 |
| Wire Size: | 22 - 16 AWG |
| Mount Type: | Panel Mount, PCB Mount, Through Hole |
| Mount Angle: | Right Angle |
| Mating Cycles: | 100 cycle |
| Seal Material: | Silicone Rubber |
| Current Rating: | 7.5 A |
| Voltage Rating: | 250 V |
| Contact Plating: | Tin |
| Housing Material: | Plastic |
| Number of Contacts: | 12 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Series: | BoardLock™ ATM |
| SKU: | AMEATM13-12PD-BM04 |

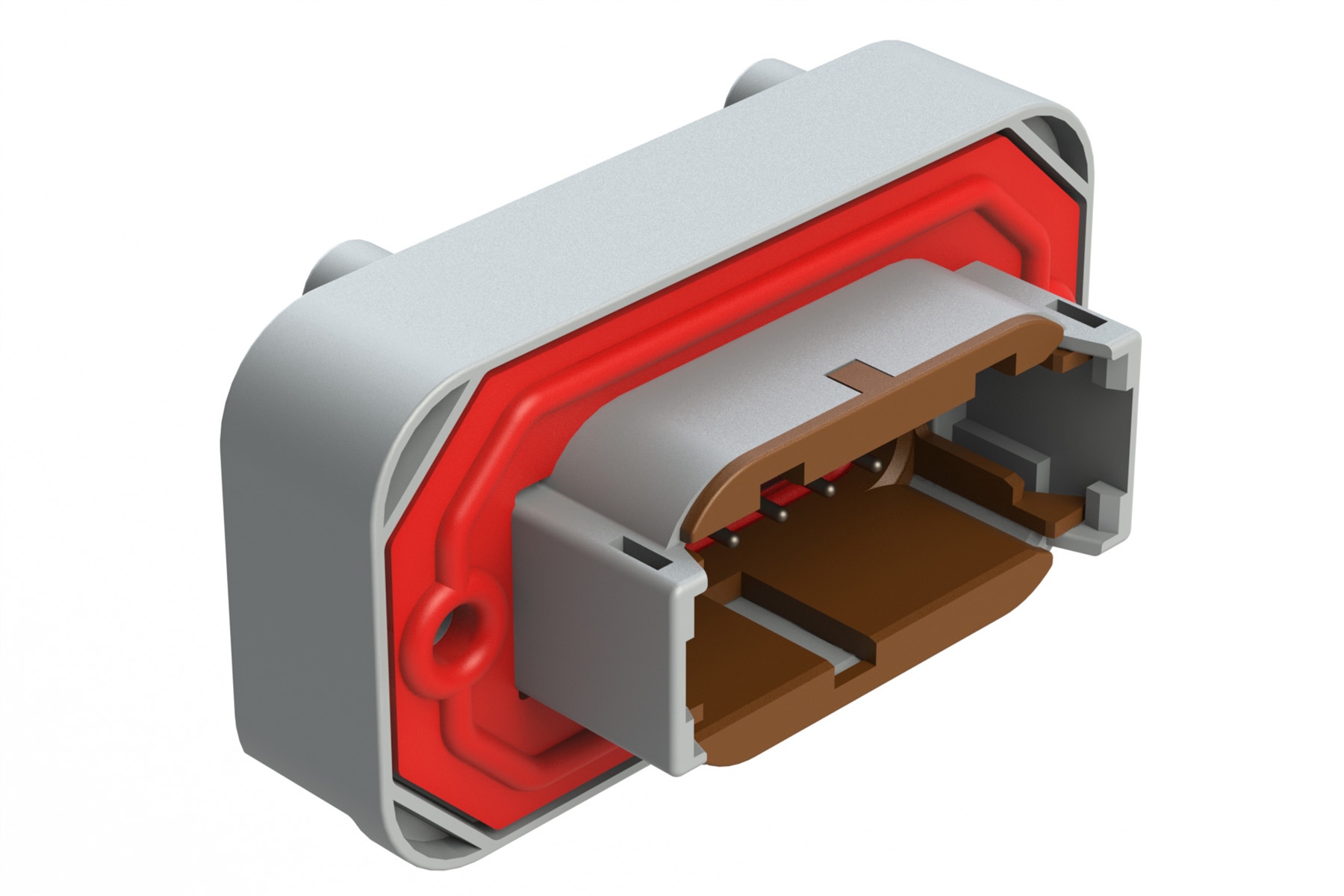

ATM13-12PD-BM04
Specifications
Detailed Description
Introducing the ATM13-12PD-BM04, a rugged and reliable automotive connector designed for male gender applications. Part of the BoardLock™ ATM series, this connector features a durable gray plastic housing and is panel mountable, offering secure and easy installation. With 12 contacts and a solder termination method plated with tin, it ensures efficient conductivity even in harsh environments, with an IP67 rating for dust and water resistance. Operating between -55°C to 125°C, it guarantees performance in extreme temperatures, making it ideal for automotive applications. Its right-angle mount angle and silicone rubber seal further enhance its durability, with a high mating cycle of 100. Supporting wire sizes of 22-16 AWG, it can handle a current rating of 7.5A and voltage rating of 250V, meeting stringent automotive connector standards. Trust in the ATM1312PDBM04 for dependable power and signal transmission in automotive systems.
