| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ATM13-3P-BM04 |
| Color: | Gray |
| Gender: | Male |
| IP Rating: | IP67 |
| Wire Size: | 22 - 16 AWG |
| Mount Type: | Panel Mount, PCB Mount, Through Hole |
| Mount Angle: | Right Angle |
| Mating Cycles: | 100 cycle |
| Seal Material: | Silicone Rubber |
| Current Rating: | 7.5 A |
| Voltage Rating: | 250 V |
| Contact Plating: | Tin |
| Housing Material: | Plastic |
| Number of Contacts: | 3 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Series: | BoardLock™ ATM |
| SKU: | AMEATM13-3P-BM04 |

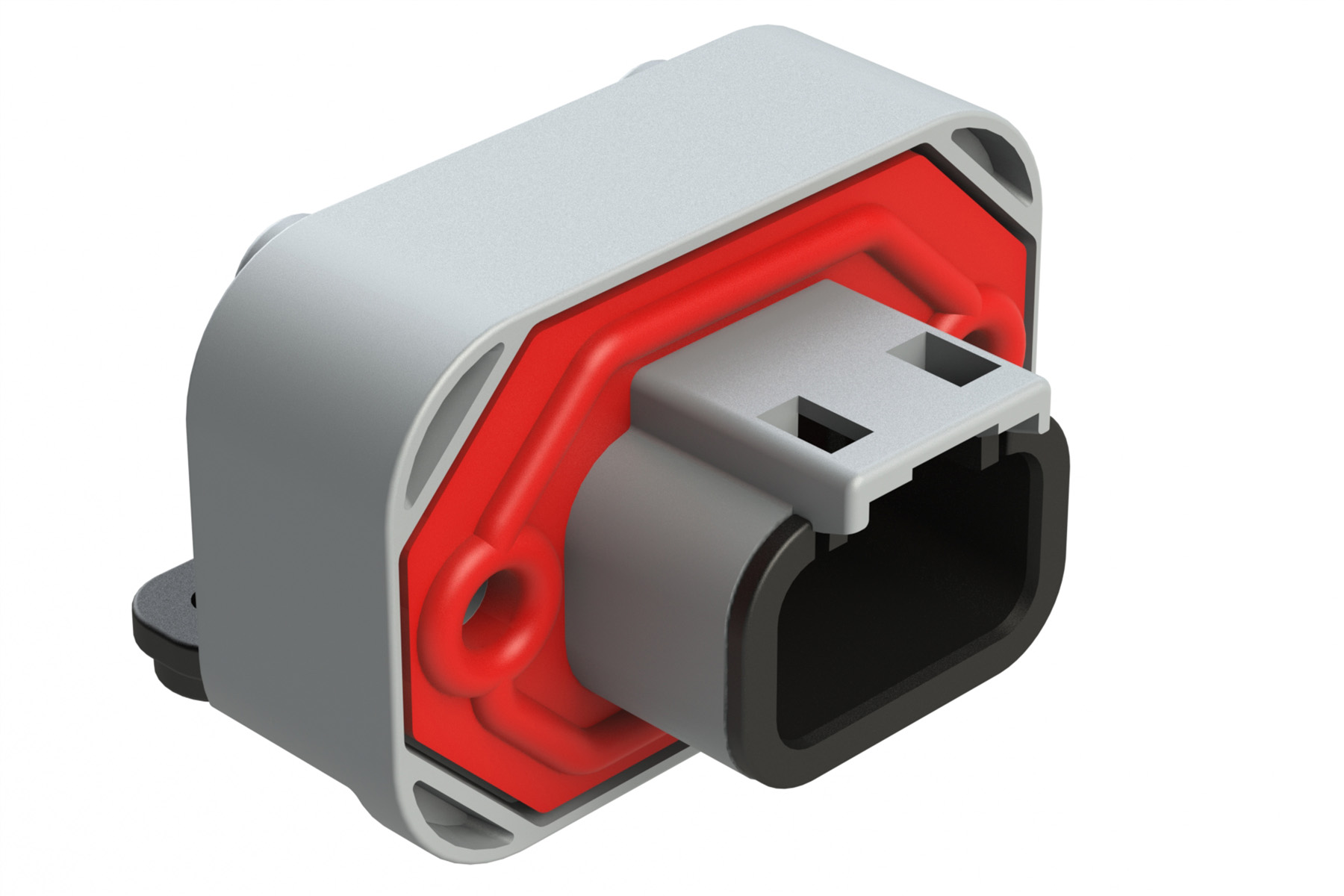

ATM13-3P-BM04
Specifications
Detailed Description
Introducing the ATM13-3P-BM04, a rugged and reliable male connector designed for automotive applications. Part of the BoardLock™ ATM series, this connector features a durable plastic housing in a sleek gray color, perfect for seamlessly integrating into your vehicle's system. With a panel mount, through-hole, or PCB mount option, installation is versatile and convenient. The solder termination method ensures secure connectivity, while the tin contact plating and silicone rubber seal offer excellent protection against harsh environmental conditions, with an IP67 rating. Operating efficiently in temperatures ranging from -55°C to 125°C, this connector is built to withstand extreme temperature fluctuations. Boasting a 7.5A current rating and 250V voltage rating, it guarantees reliable performance in demanding automotive environments. With 100 mating cycles and accommodating wire sizes from 22 to 16 AWG, the ATM133PBM04 is the ideal solution for your automotive connectivity needs.
