| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ATM13-6P-BM01 |
| Color: | Gray |
| Gender: | Male |
| IP Rating: | IP67 |
| Wire Size: | 22 - 16 AWG |
| Mount Type: | Panel Mount, PCB Mount, Through Hole |
| Mount Angle: | Right Angle |
| Mating Cycles: | 100 cycle |
| Seal Material: | Silicone Rubber |
| Current Rating: | 7.5 A |
| Voltage Rating: | 250 V |
| Contact Plating: | Gold |
| Housing Material: | Plastic |
| Number of Contacts: | 6 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Series: | BoardLock™ ATM |
| SKU: | AMEATM13-6P-BM01 |
ATM13-6P-BM01
Specifications
Detailed Description

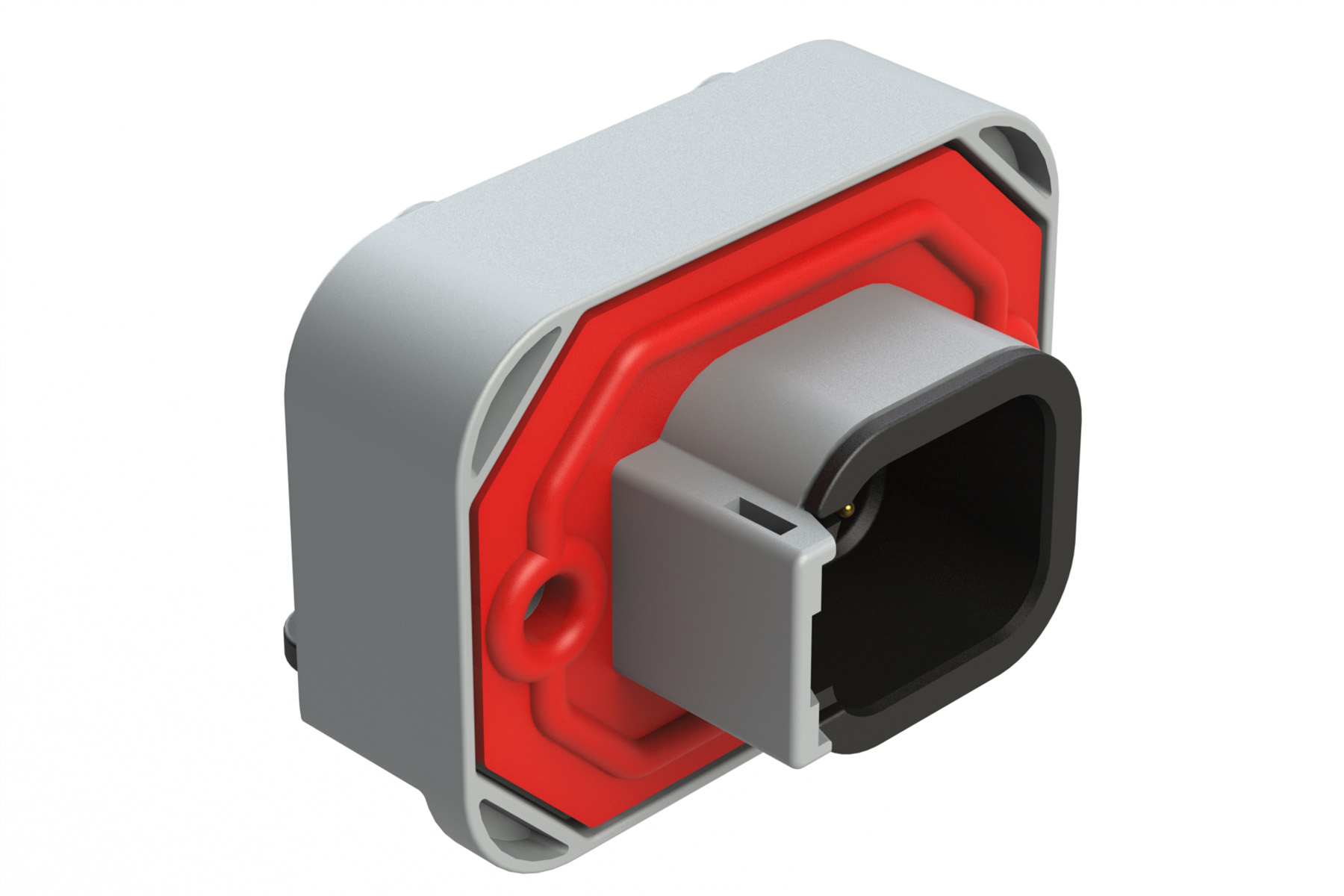

Introducing the ATM13-6P-BM01, a rugged and reliable male connector designed for automotive applications. Part of the BoardLock™ ATM series, this gray-colored connector features a robust plastic housing and gold-plated contacts, ensuring optimal conductivity in any environment. With a panel mount, through-hole, or PCB mount option, installation is versatile and secure. Operating between -55°C to 125°C and boasting an IP67 rating, it guarantees performance even in harsh conditions. The right-angle mount and silicone rubber seal further enhance its durability. Supporting wire sizes from 22 to 16 AWG, it offers a current rating of 7.5A and a voltage rating of 250V, making it ideal for power delivery in vehicles. With 100 mating cycles, it's built to last. Trust the ATM136PBM01 for high-quality automotive connectivity needs.
