| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ATM15-08PC-BM03 |
| Color: | Gray |
| Series: | BoardLock™ ATM |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 8 |
| Mount Type: | Panel Mount, PCB Mount, Through Hole |
| Termination Method: | Solder |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP67 |
| Mount Angle: | Straight |
| Seal Material: | Silicone Rubber |
| Mating Cycles: | 100 cycle |
| Wire Size: | 22 - 16 AWG |
| Current Rating: | 7.5 A |
| Voltage Rating: | 250 V |
| SKU: | AMEATM15-08PC-BM03 |

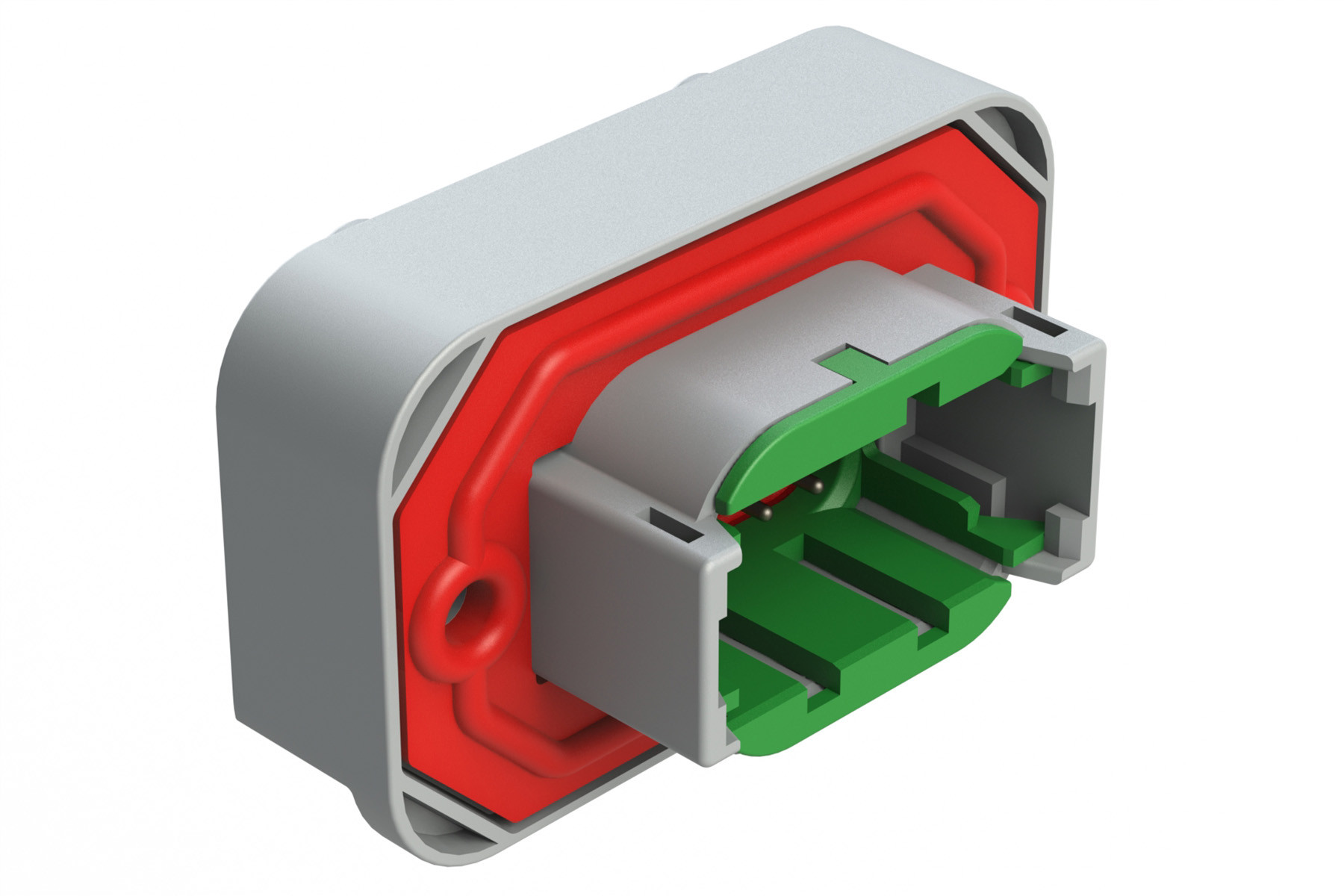

ATM15-08PC-BM03
Specifications
Detailed Description
This BoardLock™ ATM male connector ( ATM15-08PC-BM03) in gray is a reliable solution for automotive applications. With a housing made of durable plastic and a silicone rubber seal, it ensures IP67-rated protection against harsh environmental conditions. Featuring 8 tin-plated contacts for secure solder termination, this connector guarantees a maximum operating temperature of 125°C and a minimum of -55°C, making it suitable for a wide range of operating environments. Its straight mount angle and panel, Through Hole, and PCB mount options offer versatile installation possibilities. With a current rating of 7.5A and a voltage rating of 250V, it meets automotive industry standards, while its 100 mating cycle lifespan ensures long-term performance. Perfect for wire sizes ranging from 22 to 16 AWG, this connector from the ATM Series™ and BoardLock™ Series is a dependable choice for your automotive connectivity needs.
