| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ATM15-08PD-BM01 |
| Color: | Gray |
| Series: | BoardLock™ ATM |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 8 |
| Mount Type: | Panel Mount, PCB Mount, Through Hole |
| Termination Method: | Solder |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP67 |
| Mount Angle: | Straight |
| Seal Material: | Silicone Rubber |
| Mating Cycles: | 100 cycle |
| Wire Size: | 22 - 16 AWG |
| Current Rating: | 7.5 A |
| Voltage Rating: | 250 V |
| SKU: | AMEATM15-08PD-BM01 |

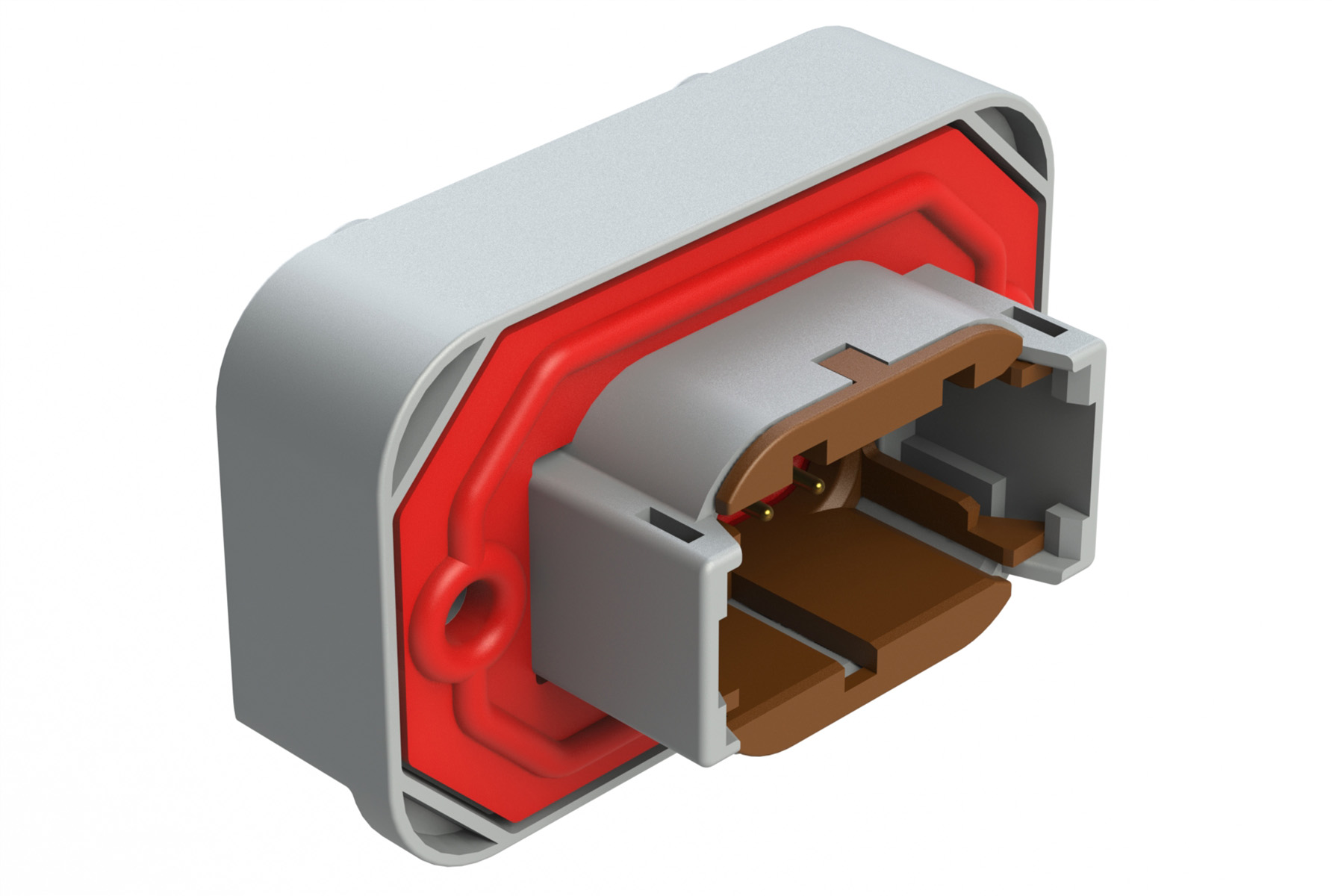

ATM15-08PD-BM01
Specifications
Detailed Description
Introducing the ATM15-08PD-BM01, a male connector from the BoardLock™ ATM series designed for seamless automotive applications. With a rugged gray plastic housing and IP67 rating, this connector ensures reliable performance even in harsh environments. Featuring 8 gold-plated contacts, it guarantees optimal conductivity with a current rating of 7.5 A and voltage rating of 250 V. Its straight mount angle and panel/PCB Through Hole compatibility offer versatile installation options. The silicone rubber seal and wide operating temperature range from -55°C to 125°C make it suitable for diverse automotive settings. With a 100-cycle mating life and accommodating wire sizes from 22 to 16 AWG, this connector is a dependable choice for high-stress automotive connectivity needs. Upgrade your automotive connectors with the ATM1508PDBM01 for enhanced durability and performance.
