| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ATM15-08PD-BM04 |
| Color: | Gray |
| Series: | BoardLock™ ATM |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 8 |
| Mount Type: | Panel Mount, PCB Mount, Through Hole |
| Termination Method: | Solder |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP67 |
| Mount Angle: | Straight |
| Seal Material: | Silicone Rubber |
| Mating Cycles: | 100 cycle |
| Wire Size: | 22 - 16 AWG |
| Current Rating: | 7.5 A |
| Voltage Rating: | 250 V |
| SKU: | AMEATM15-08PD-BM04 |

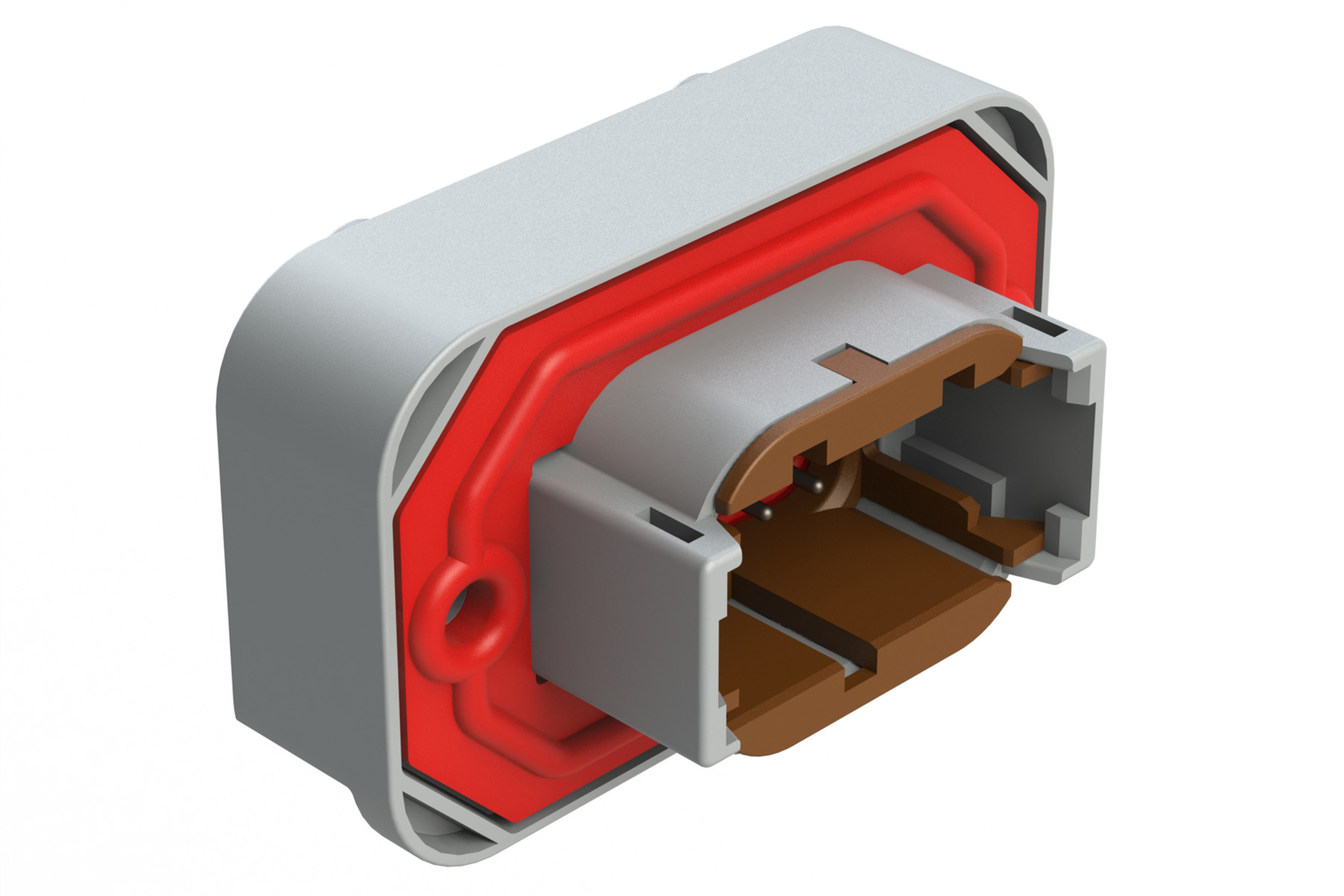

ATM15-08PD-BM04
Specifications
Detailed Description
The ATM15-08PD-BM04 Connector, part of the BoardLock™ ATM series, is a reliable solution for automotive applications. With a durable plastic housing in a sleek gray finish, this male connector offers secure panel, through hole, or PCB mounting options. Featuring 8 tin-plated contacts, it ensures efficient solder termination for wire sizes ranging from 22 to 16 AWG. Operating flawlessly in temperatures ranging from -55°C to 125°C and boasting an IP67 rating for dust and water resistance, this connector guarantees performance even in harsh environments. With a current rating of 7.5 A and a voltage rating of 250 V, it meets the demands of automotive systems. The silicone rubber seal provides added protection, and with a mating cycle of 100, this connector offers long-term reliability. Perfect for automotive connectors and accessories, the ATM1508PDBM04 is a must-have for any automotive application.
