| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ATM15-12PA-BM03 |
| Color: | Gray |
| Series: | BoardLock™ ATM |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 12 |
| Mount Type: | Panel Mount, PCB Mount, Through Hole |
| Termination Method: | Solder |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP67 |
| Mount Angle: | Straight |
| Seal Material: | Silicone Rubber |
| Mating Cycles: | 100 cycle |
| Wire Size: | 22 - 16 AWG |
| Current Rating: | 7.5 A |
| Voltage Rating: | 250 V |
| SKU: | AMEATM15-12PA-BM03 |
ATM15-12PA-BM03
Specifications
Detailed Description

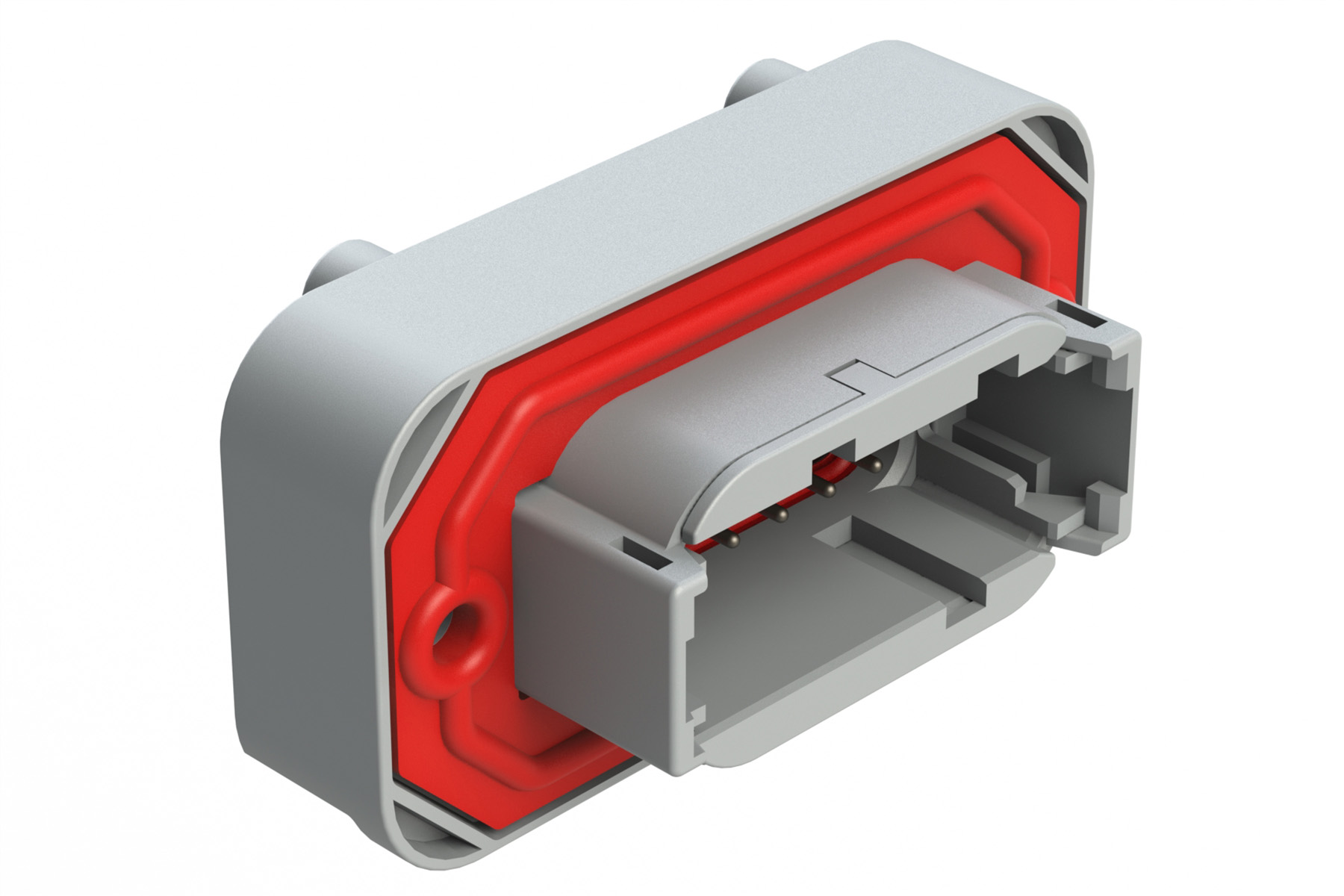

Introducing the BoardLock™ ATM Series™ Male Connector, SKU ATM15-12PA-BM03, designed for rugged automotive applications. Featuring a durable gray plastic housing with IP67 sealing, this connector ensures reliable performance in harsh environments. With 12 tin-plated contacts capable of accommodating wire sizes ranging from 22 to 16 AWG, it offers secure and efficient solder termination. Operating temperature ranges from -55°C to 125°C and a voltage rating of 250V make it suitable for a wide range of automotive systems. Boasting a current rating of 7.5A and a mating cycle of 100, this connector guarantees long-lasting and high-performance connectivity. ROHS compliant and offering straight panel, through hole, and PCB mounting options, the ATM1512PABM03 is the ideal choice for demanding automotive connectivity needs.
