| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ATM15-12PB-BM04 |
| Color: | Gray |
| Series: | BoardLock™ ATM |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 12 |
| Mount Type: | Panel Mount, PCB Mount, Through Hole |
| Termination Method: | Solder |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP67 |
| Mount Angle: | Straight |
| Seal Material: | Silicone Rubber |
| Mating Cycles: | 100 cycle |
| Wire Size: | 22 - 16 AWG |
| Current Rating: | 7.5 A |
| Voltage Rating: | 250 V |
| SKU: | AMEATM15-12PB-BM04 |

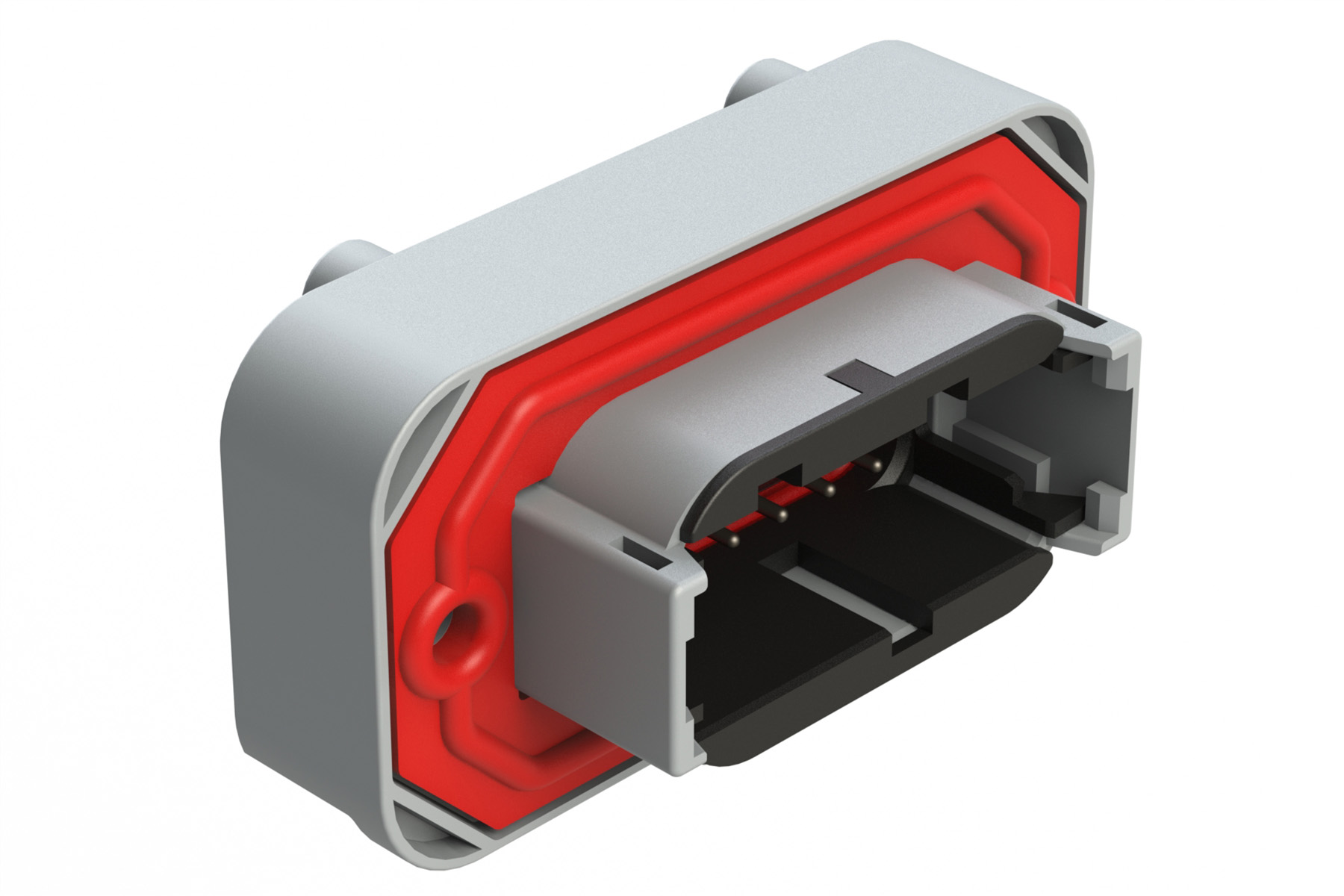

ATM15-12PB-BM04
Specifications
Detailed Description
Introducing the ATM15-12PB-BM04, a rugged and reliable connector designed for automotive applications. Featuring a durable gray plastic housing with an IP67 rating, this connector ensures protection against dust and water ingress, making it ideal for use in harsh environments. With 12 contacts and a current rating of 7.5A, it provides secure and efficient power and signal transmission. The contact plating of tin guarantees excellent conductivity, while the silicone rubber seal material ensures long-lasting performance. Suitable for panel mount, through hole, and PCB mount installations, this connector offers versatile connectivity options. Operating in temperatures ranging from -55°C to 125°C, it is built to withstand extreme conditions. The ATM Series™ Boardlock™ ATM connector, part of the hi_rel category, is a must-have for any automotive wiring project.
