| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ATM15-12PC-BM04 |
| Color: | Gray |
| Series: | BoardLock™ ATM |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 12 |
| Mount Type: | Panel Mount, PCB Mount, Through Hole |
| Termination Method: | Solder |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP67 |
| Mount Angle: | Straight |
| Seal Material: | Silicone Rubber |
| Mating Cycles: | 100 cycle |
| Wire Size: | 22 - 16 AWG |
| Current Rating: | 7.5 A |
| Voltage Rating: | 250 V |
| SKU: | AMEATM15-12PC-BM04 |

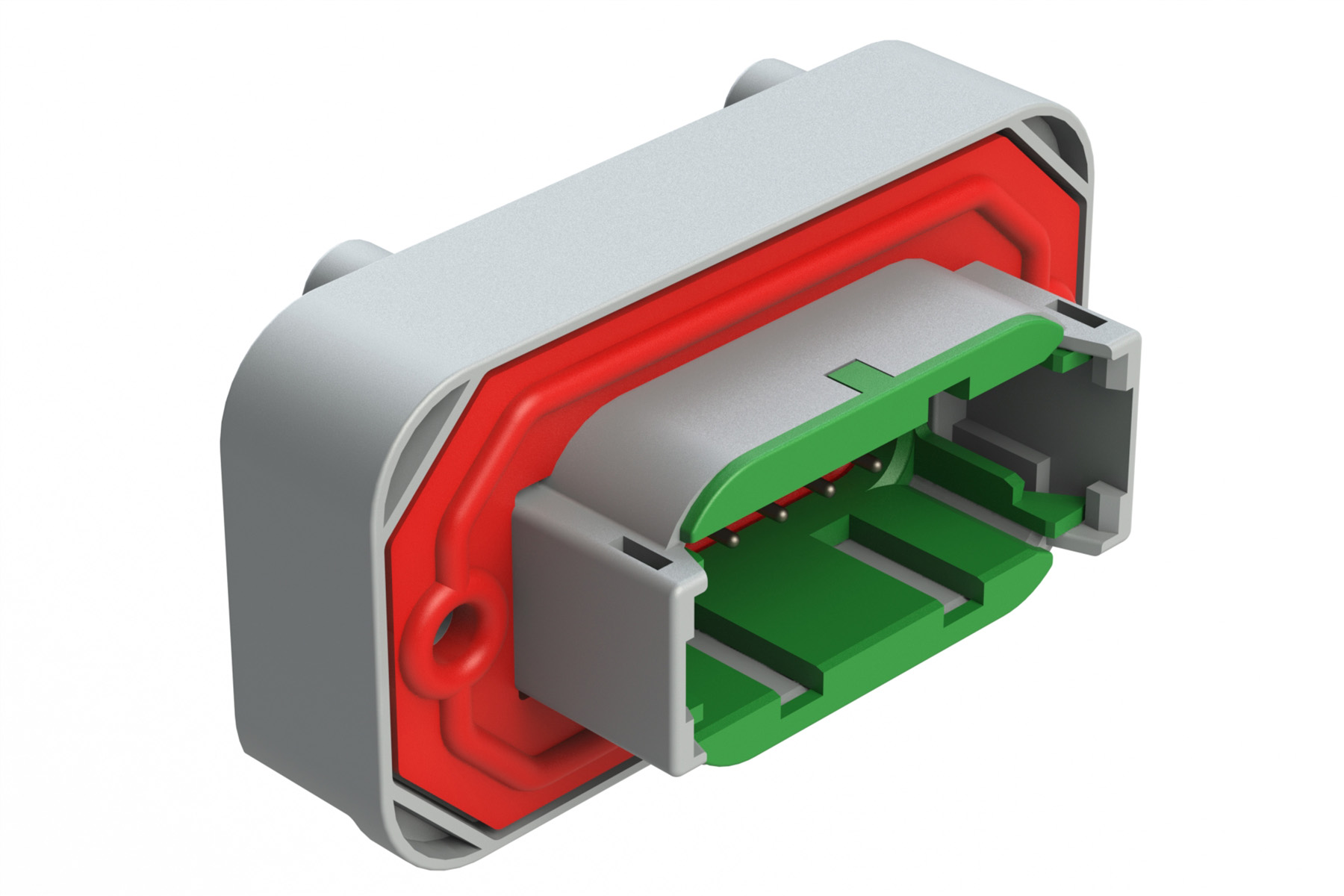

ATM15-12PC-BM04
Specifications
Detailed Description
Introducing the BoardLock™ ATM Series™ Male Connector, ATM15-12PC-BM04. Designed for automotive applications, this gray connector features a durable plastic housing with IP67-rated silicone rubber seals, ensuring reliable performance in harsh environments. With a panel mount, through-hole, or PCB mount option, installation is versatile. The 12 contacts, terminated via solder with tin plating, accommodate wire sizes from 22 to 16 AWG. Operating between -55°C to 125°C, this connector offers a wide temperature range, making it suitable for various conditions. Rated at 7.5A and 250V, it meets automotive standards for current and voltage requirements. With a mating cycle of 100 cycles, it guarantees long-lasting connectivity. Ideal for automotive connectors and accessories, the ATM1512PCBM04 is a dependable choice for your connectivity needs.
