| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ATM15-4P-BM01 |
| Color: | Gray |
| Series: | BoardLock™ ATM |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 4 |
| Mount Type: | Panel Mount, PCB Mount, Through Hole |
| Termination Method: | Solder |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP67 |
| Mount Angle: | Straight |
| Seal Material: | Silicone Rubber |
| Mating Cycles: | 100 cycle |
| Wire Size: | 22 - 16 AWG |
| Current Rating: | 7.5 A |
| Voltage Rating: | 250 V |
| SKU: | AMEATM15-4P-BM01 |

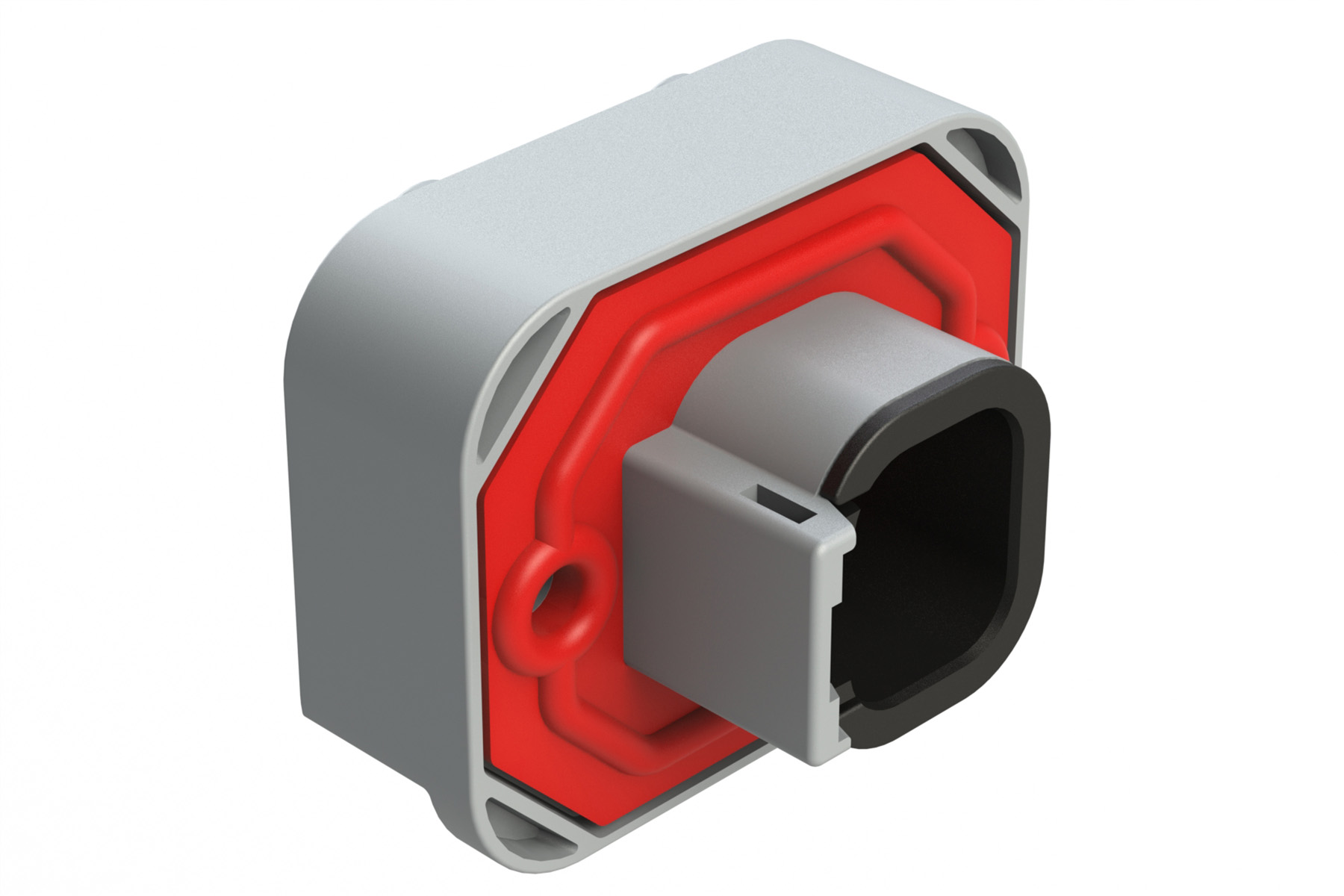

ATM15-4P-BM01
Specifications
Detailed Description
The ATM15-4P-BM01 connector, part of the BoardLock™ ATM series, is a crucial component in automotive applications. Designed for male gender and featuring a durable plastic housing, this gray connector ensures reliable performance even in harsh environments with its IP67 rating. With a straight mount angle and compatibility for panel, through hole, and PCB mounting, it offers versatility in installation. The gold-plated contacts provide optimal conductivity and corrosion resistance. Operating efficiently in temperatures ranging from -55°C to 125°C, this connector guarantees stability in extreme conditions. Boasting a current rating of 7.5 A and a voltage rating of 250 V, it is suitable for high-power applications. With a wire size range of 22-16 AWG and a 100-cycle mating durability, it ensures long-lasting connectivity. Perfect for automotive connectors and accessories, the ATM154PBM01 is a reliable solution for your connectivity needs.
