| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 11D003 001 2 |
| Color: | Nickel |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 3 |
| Mount Type: | Cable Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP69K |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Shielded: | Yes |
| Wire Size: | 28 - 18 AWG |
| Current Rating: | 10 A |
| Voltage Rating: | 250 V, 300 V |
| SKU: | AMEC091 11D003 001 2 |

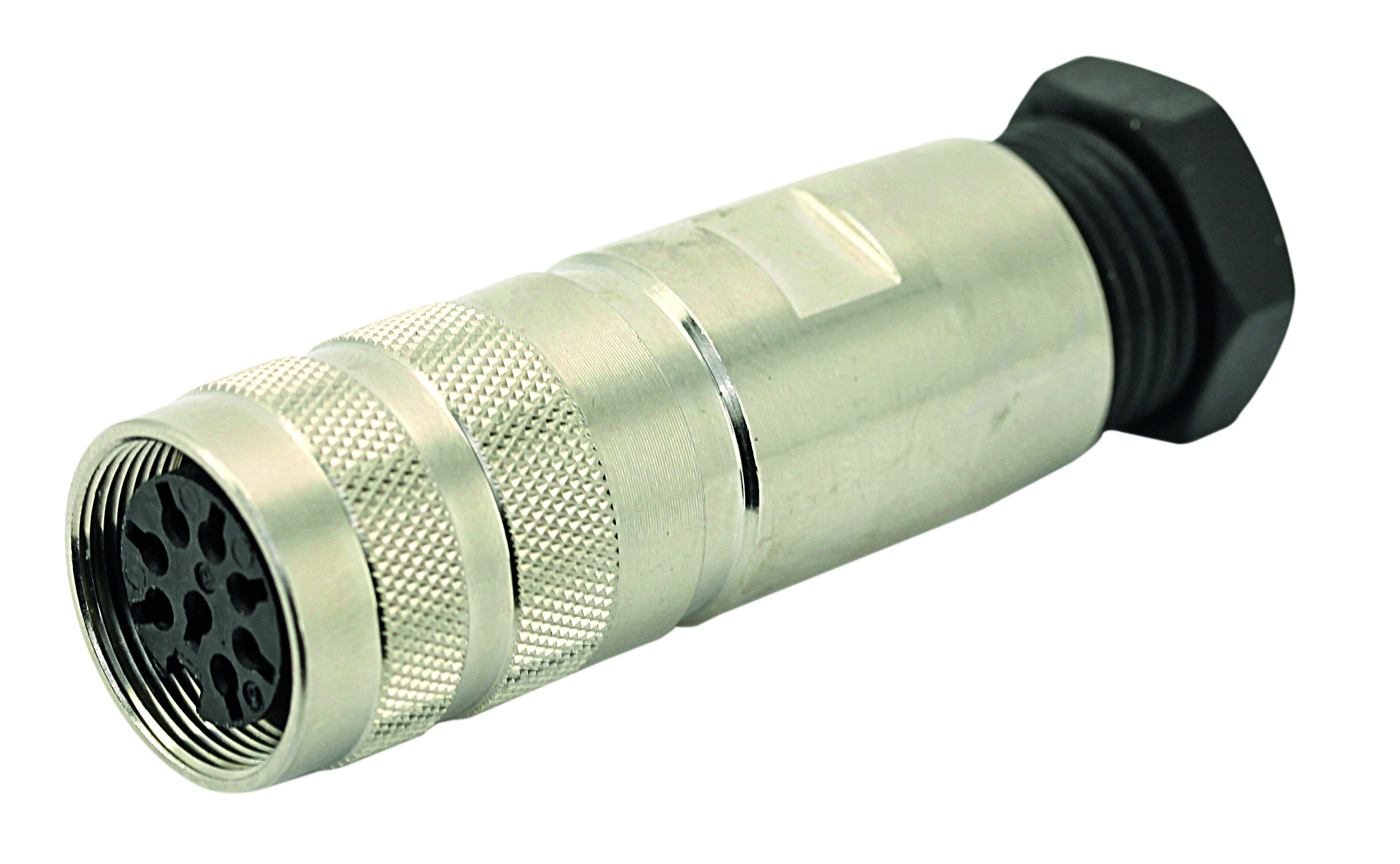

C091 11D003 001 2
Specifications
Detailed Description
The C091 11D003 001 2 is a high-performance female cable connector designed for industrial applications. Featuring a durable die-cast zinc housing in a sleek nickel finish, this connector ensures reliable connectivity in harsh environments. With three gold-plated contacts, it guarantees secure signal transmission. The IP69K rating certifies its resistance to dust, water, and high-pressure cleaning. Suitable for cable mounting with a straight screw mating type, it offers easy installation. Its crimp termination method supports wire sizes ranging from 28 to 18 AWG, accommodating a current rating of 10A and voltage ratings of 250V and 300V. Ideal for use in circular DIN connectors, this product meets stringent quality standards, making it a dependable choice for your connectivity needs.
