| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 11F008 001 2 |
| Color: | Nickel |
| Gender: | Female |
| Shielded: | Yes |
| IP Rating: | IP69K |
| Wire Size: | 28 - 20 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Right Angle |
| Current Rating: | 7 A |
| Voltage Rating: | 100 V, 250 V |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 8 |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMEC091 11F008 001 2 |
C091 11F008 001 2
Specifications
Detailed Description

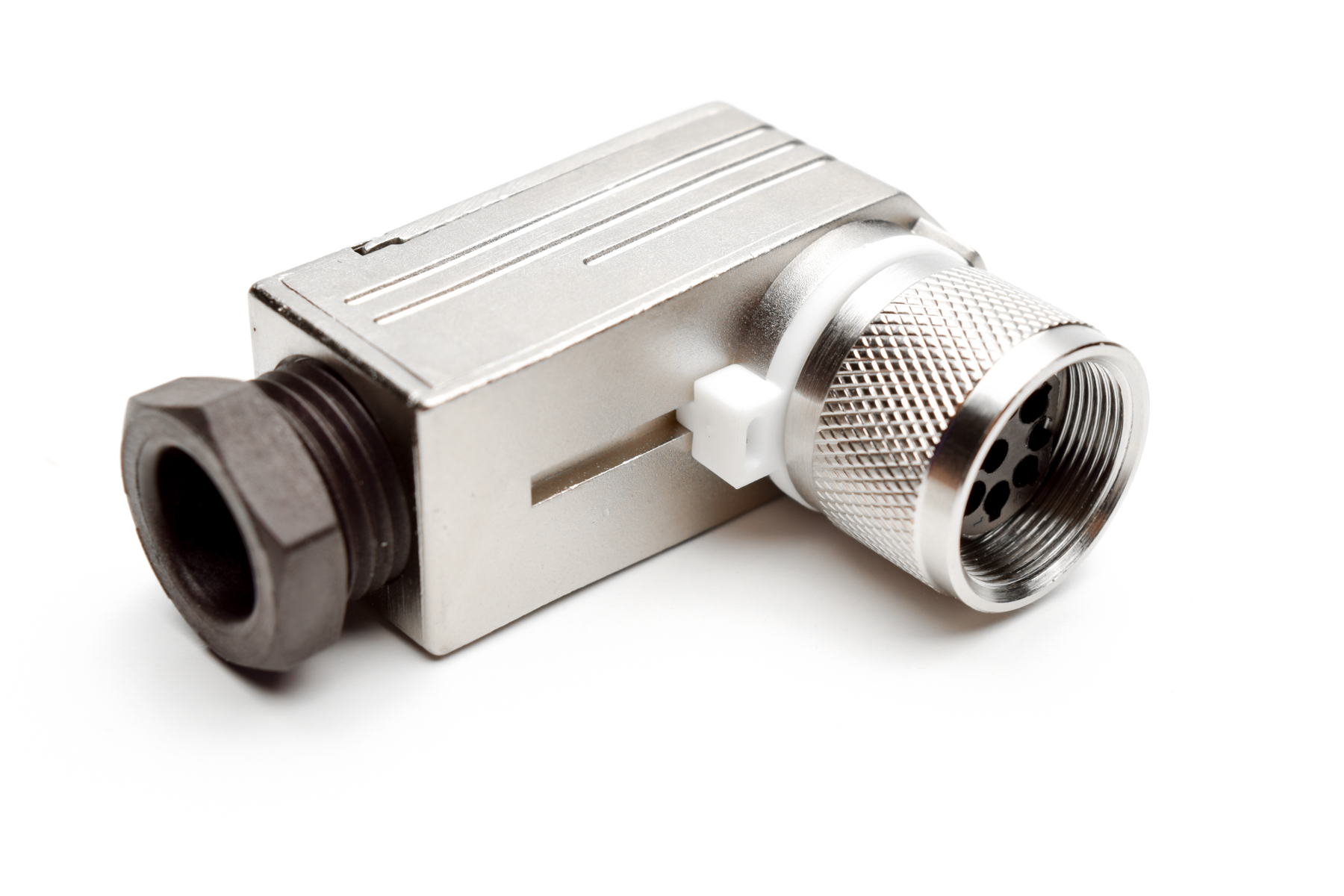

Introducing the C091 11F008 001 2 Female Cable Connector 8 Way, a high-performance connectivity solution designed for industrial applications. Featuring a rugged die-cast zinc housing in a sleek nickel finish, this connector ensures durability and reliable signal transmission in even the harshest environments. With eight contacts and a cable mount configuration, it offers seamless integration into your setup. The crimp termination method guarantees secure connections, while its IP69K rating certifies protection against dust and water ingress. Operating between -40°C to 100°C, this connector is built to withstand extreme temperatures. Suitable for use with 28-20 AWG wire sizes, it supports a current rating of 7A at voltages up to 100V and 250V. RoHS compliant and engineered for performance, the C091 11F008 001 2 is the perfect choice for your circular DIN connector needs.
