| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 11F012 000 2 |
| Color: | Nickel |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 12 |
| Mount Type: | Cable Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP69K |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Right Angle |
| Shielded: | Yes |
| Wire Size: | 28 - 24 AWG |
| Current Rating: | 3 A |
| Voltage Rating: | 150 V, 60 V |
| SKU: | AMEC091 11F012 000 2 |

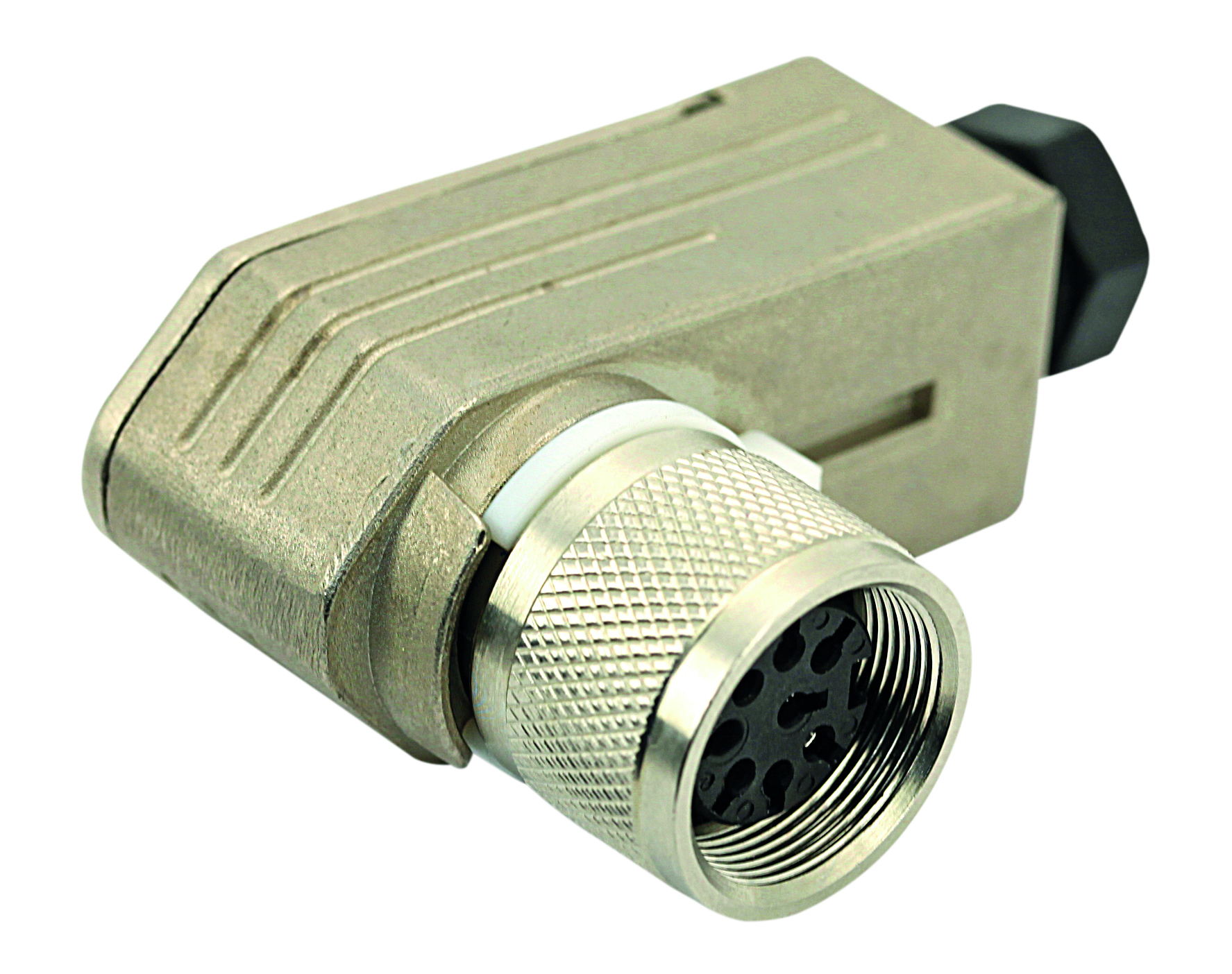

C091 11F012 000 2
Specifications
Detailed Description
C091 11F012 000 2 features a high-quality FEMALE CABLE CONNECTOR WITH IN, designed for reliable and efficient connectivity in demanding environments. With a durable Die Cast Zinc housing and Nickel color finish, this connector ensures longevity and corrosion resistance. The 12 contacts, Cable Mount design, and Crimp termination method guarantee secure and stable connections. Operating between -40°C to 100°C and boasting an IP69K rating, it's suitable for use in a wide range of applications. The M16 shell size, Screw mating type, and Right Angle mount angle offer versatility in installation. Featuring shielding for enhanced signal integrity, and compatibility with 28-24 AWG wire sizes, it meets stringent performance standards. With a current rating of 3A and voltage ratings of 150V and 60V, this connector is ideal for Circular DIN and other high-reliability applications. Stay connected with confidence using the C09111F0120002.
