| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 11G012 000 2 |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 12 |
| Mount Type: | Panel Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP67 |
| Mating Type: | Screw |
| Shielded: | Yes |
| Wire Size: | 28 - 24 AWG |
| Current Rating: | 3 A |
| Voltage Rating: | 150 V |
| SKU: | AMEC091 11G012 000 2 |
C091 11G012 000 2
Specifications
Detailed Description

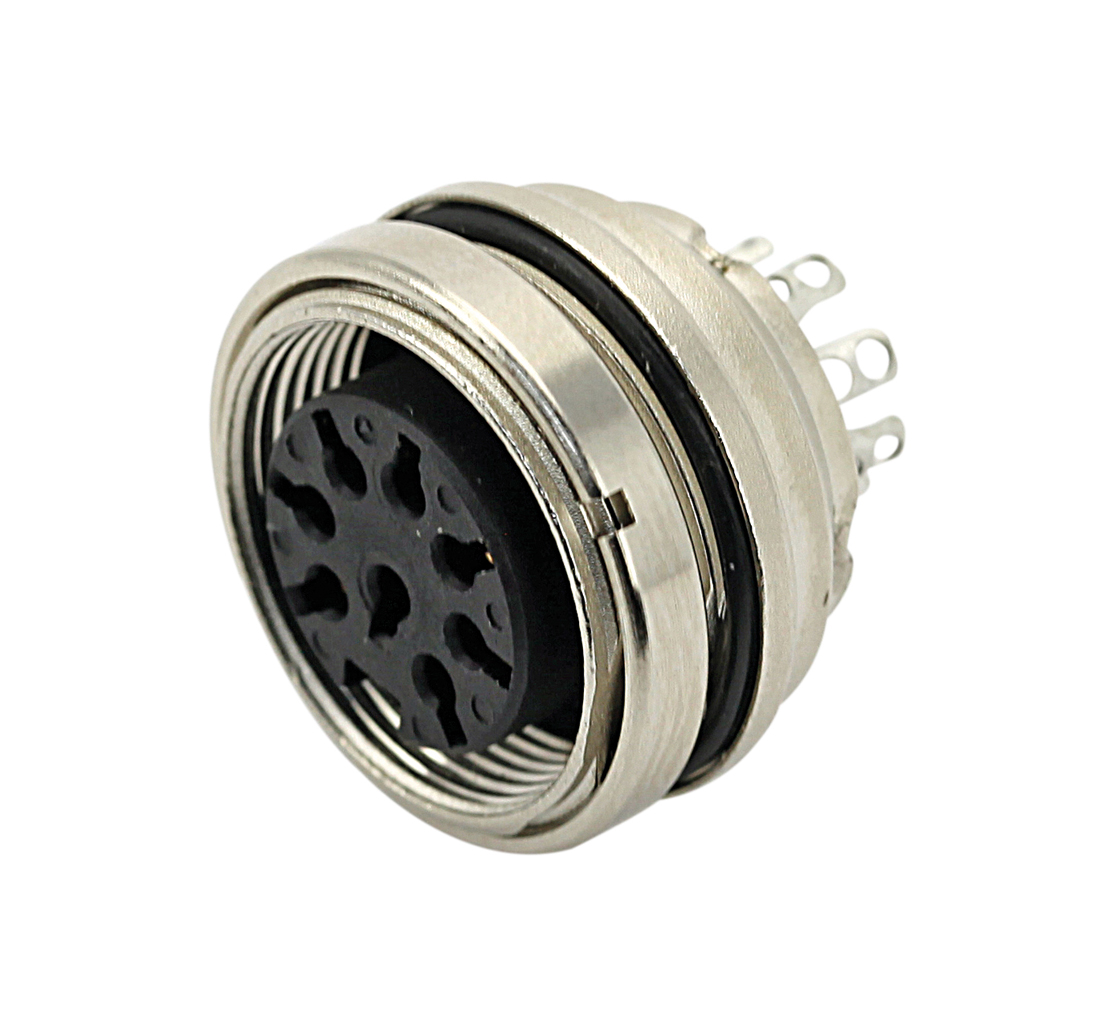

Introducing the C091 11G012 000 2, a high-performance Rear Mounting Female Metal Rec connector designed for seamless panel installations. Constructed with durable Die Cast Zinc housing, this connector ensures reliable connectivity in various environments. Featuring 12 contacts with Crimp termination, it offers secure and efficient wire connections. With a wide operating temperature range from -40°C to 100°C and IP67 rating, it guarantees performance in harsh conditions. The Screw mating type and shielded design enhance signal integrity, making it ideal for industrial applications. Accommodating wire sizes of 28-24 AWG, it supports a current rating of 3A and voltage rating of 150V. Discover the perfect solution for your Circular DIN connector needs with the C091 11G012 000 2.
