| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 11H003 001 2 |
| Color: | Nickel |
| Gender: | Male |
| Shielded: | Yes |
| IP Rating: | IP69K |
| Wire Size: | 28 - 18 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Current Rating: | 10 A |
| Voltage Rating: | 250 V, 300 V |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 3 |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMEC091 11H003 001 2 |
C091 11H003 001 2
Specifications
Detailed Description

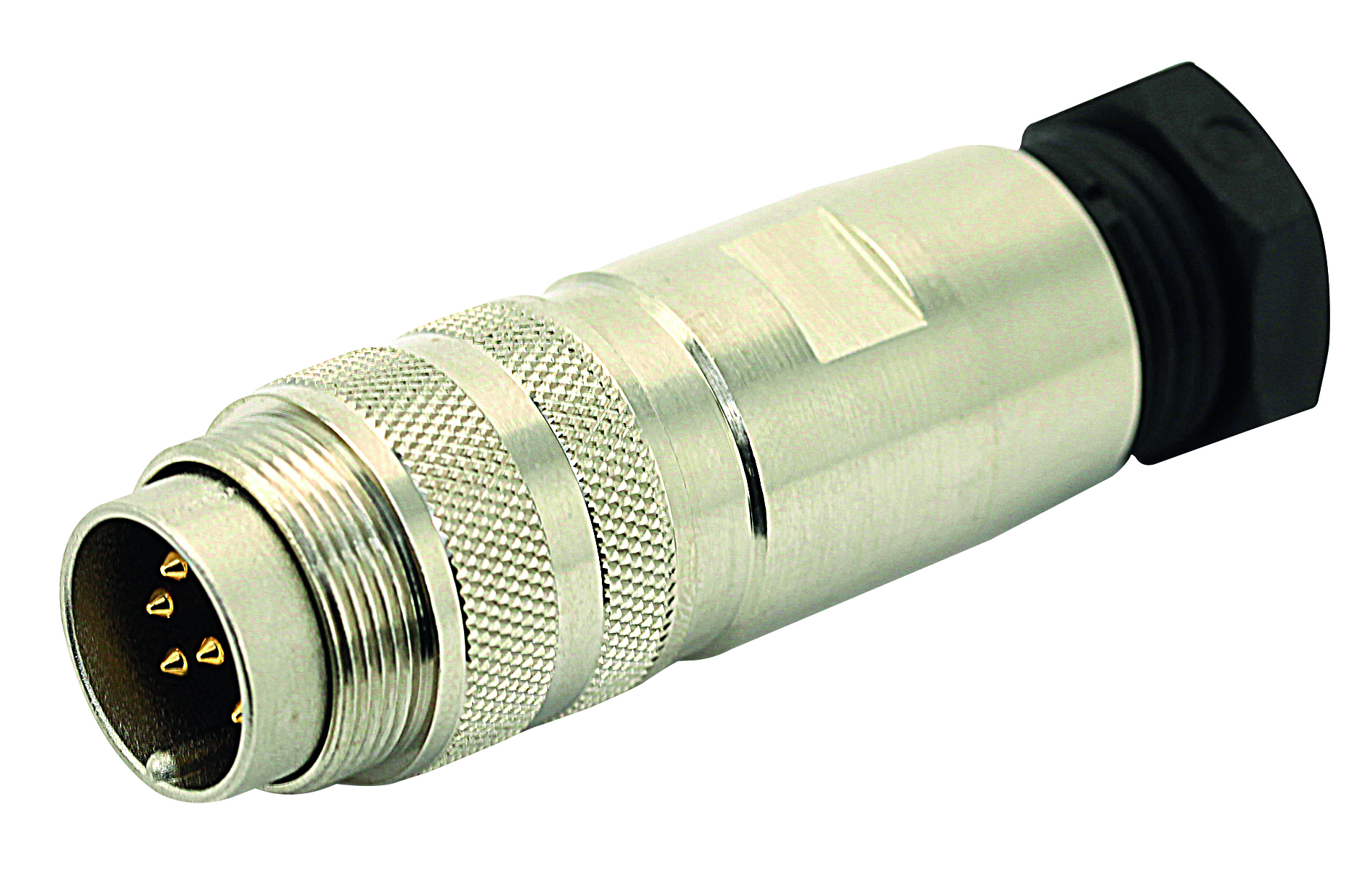

Introducing the C091 11H003 001 2, a male cable connector designed for seamless industrial connectivity. Constructed with durable nickel and die-cast zinc housing, this connector ensures reliable performance even in harsh environments with its IP69K rating. Featuring a cable mount with straight angle termination via crimping, installation is quick and secure. With three contacts and a shielded design, signal integrity is maintained. Suitable for wire sizes ranging from 28 to 18 AWG, it offers a current rating of 10A and voltage ratings of 250V and 300V. RoHS compliant, this connector meets environmental standards. Perfect for circular DIN applications, it’s a must-have in your connectivity solutions.
