| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 11H007 000 2 |
| Color: | Nickel |
| Gender: | Male |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 7 |
| Mount Type: | Cable Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP69K |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Shielded: | Yes |
| Wire Size: | 28 - 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 250 V, 300 V |
| SKU: | AMEC091 11H007 000 2 |

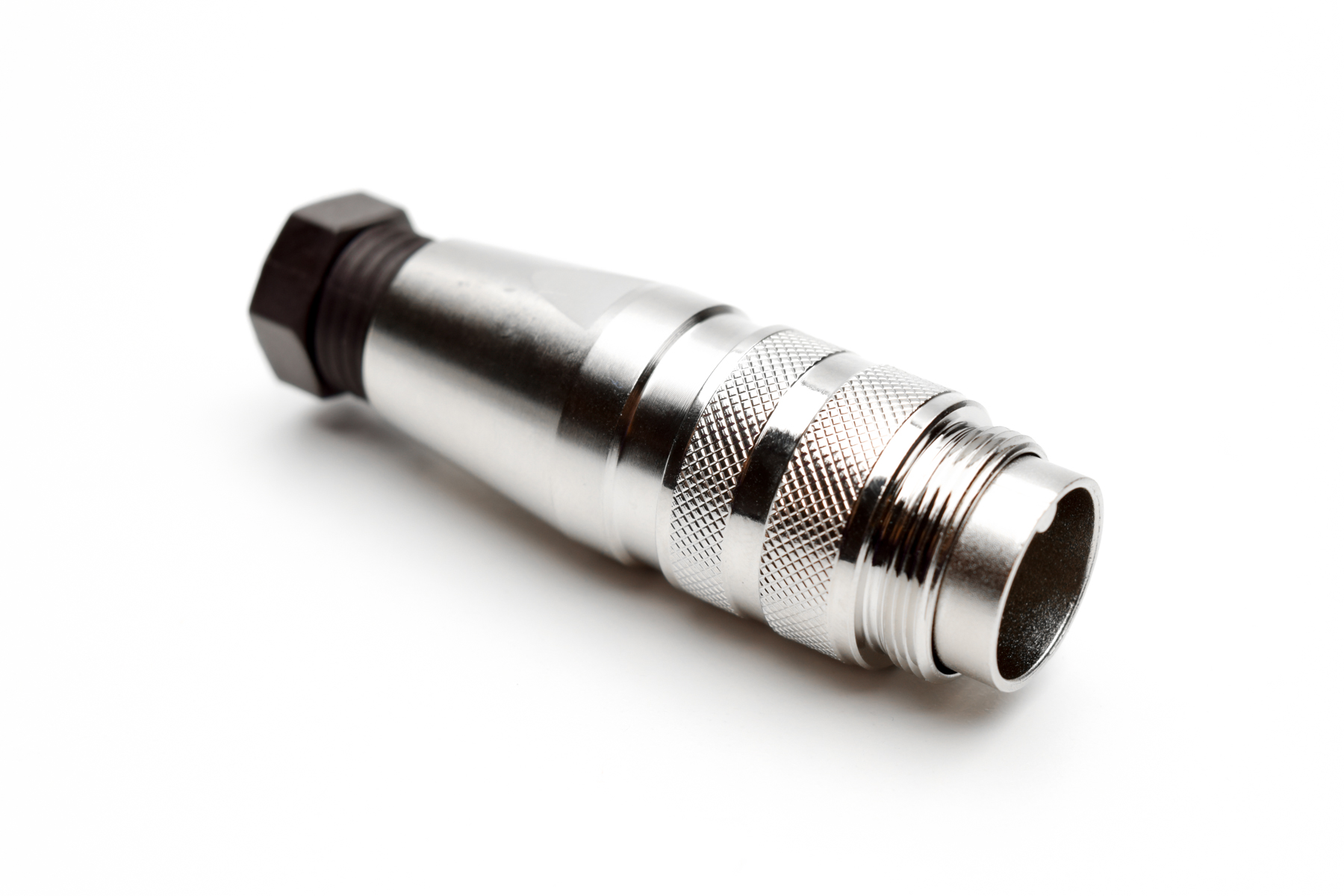

C091 11H007 000 2
Specifications
Detailed Description
The C091 11H007 000 2 is a robust male cable connector designed for industrial applications. Constructed with durable nickel-plated die-cast zinc housing, this connector ensures reliable performance in harsh environments. Featuring 7 contacts and a cable mount design, it offers secure and efficient connections. The crimp termination method guarantees a strong and stable attachment. With an IP69K rating, it provides high protection against dust, water, and high-pressure cleaning. The M16 shell size, screw mating type, and straight mount angle make installation easy. Shielded for added security, it accommodates wire sizes ranging from 28 to 20 AWG. With a current rating of 7A and voltage rating of 250V/300V, this connector is suitable for various power applications. RoHS compliant, it meets environmental standards. Perfect for circular DIN connectors, this product is a reliable solution for your connectivity needs.
