| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 11H012 000 2 |
| Color: | Nickel |
| Gender: | Male |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 12 |
| Mount Type: | Cable Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP69K |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Shielded: | Yes |
| Wire Size: | 28 - 24 AWG |
| Current Rating: | 3 A |
| Voltage Rating: | 150 V, 60 V |
| SKU: | AMEC091 11H012 000 2 |

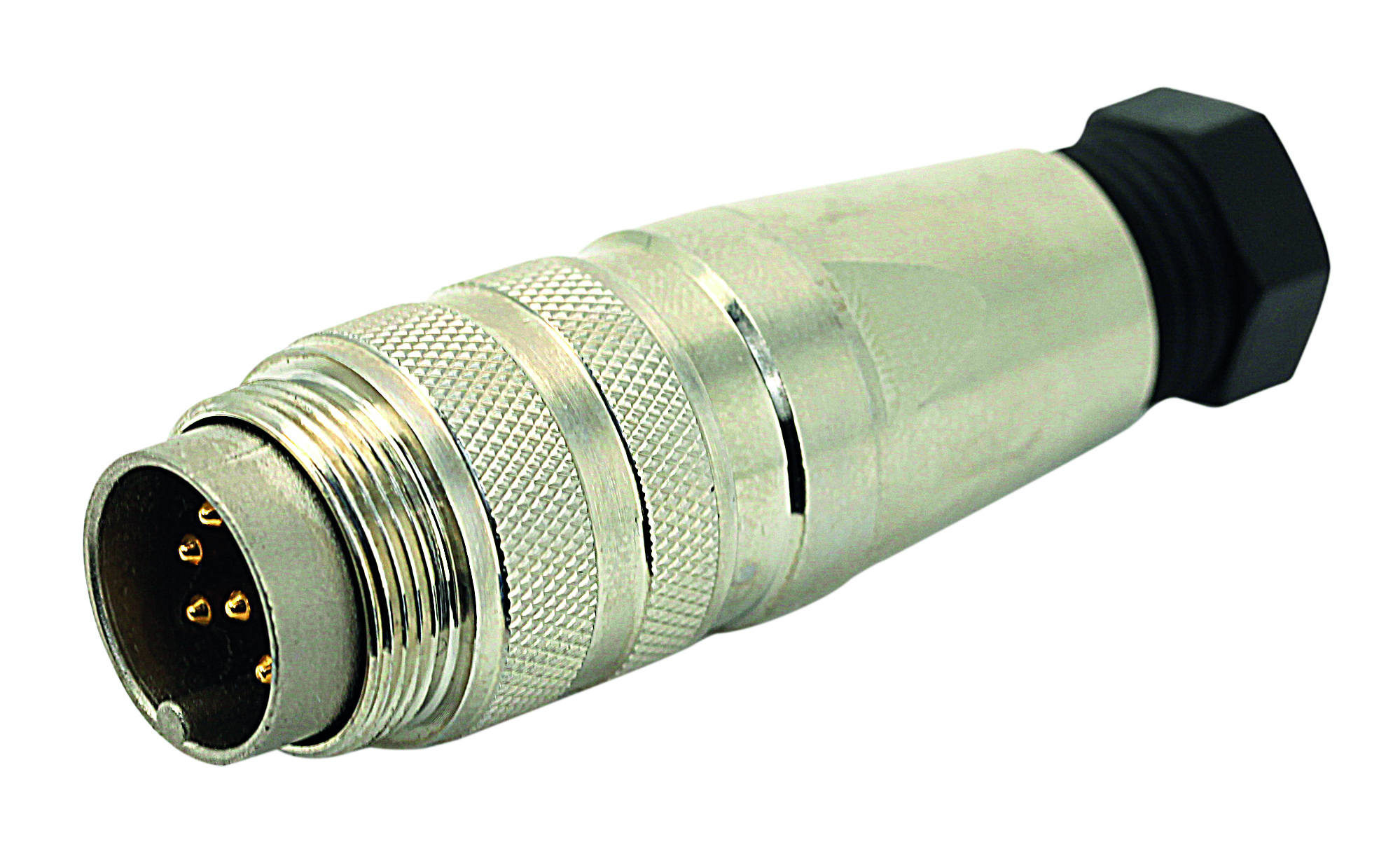

C091 11H012 000 2
Specifications
Detailed Description
The C091 11H012 000 2 Circular DIN Connector in Nickel is designed for male gender applications, featuring a sturdy Die Cast Zinc housing with 12 contacts for reliable connectivity. Suitable for cable mount installations, it ensures secure termination via crimping. Operating efficiently in temperatures ranging from -40°C to 100°C and boasting an IP69K rating, this connector is highly durable and resistant to harsh environments. With a shell size of M16 and a straight mount angle, it offers easy integration. Shielded for added protection, it accommodates wire sizes of 28-24 AWG and supports a current rating of 3A at voltage ratings of 150V and 60V. RoHS compliant, it guarantees environmental responsibility. Ideal for industrial applications, this connector belongs to the high-performance C091 series, delivering exceptional quality and reliability.
