| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 11N006 000 2 |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 6 |
| Mount Type: | Panel Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP67 |
| Mating Type: | Screw |
| Shielded: | Yes |
| Wire Size: | 28 - 18 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 300 V |
| SKU: | AMEC091 11N006 000 2 |

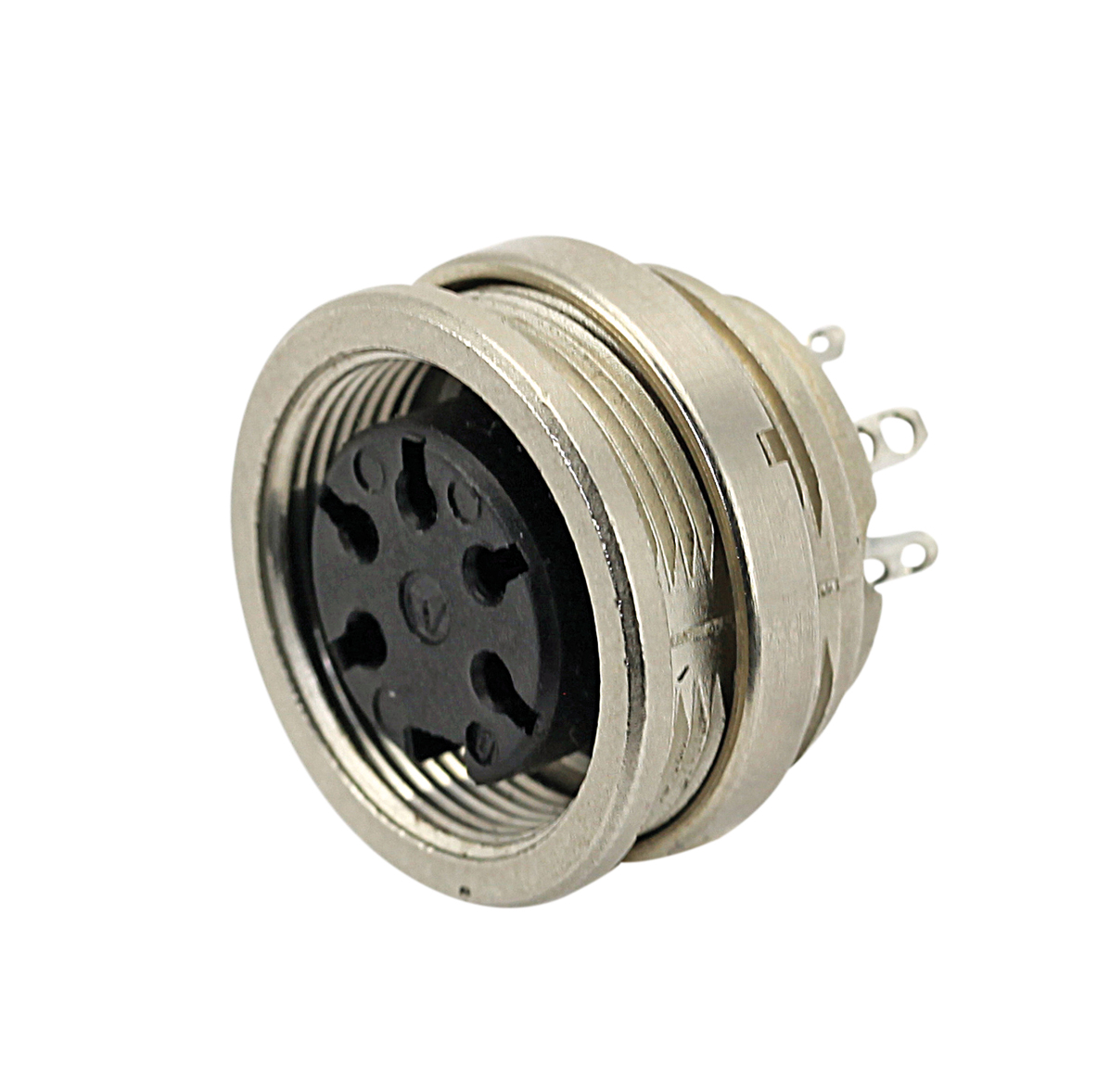

C091 11N006 000 2
Specifications
Detailed Description
Introducing the C091 11N006 000 2, a high-performance FRONT MOUNTING FEMALE METAL RE connector designed for robust connectivity in industrial environments. Crafted with durable Die Cast Zinc housing, this panel mount connector features 6 contacts for secure and efficient data transmission. The Crimp termination method ensures easy installation, while its IP67 rating guarantees reliable operation even in harsh conditions. With a wide operating temperature range from -40°C to 100°C, this connector is suitable for diverse applications. The shielded design and screw mating type provide added protection and stability. Accommodating wire sizes ranging from 28 to 18 AWG, it offers versatility in wiring configurations. Rated for 7A at 300V, this connector delivers high performance, making it ideal for use in Circular DIN Connectors and other industrial settings. Trust in the C091 11N006 000 2 for secure and efficient connectivity in demanding environments.
