| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 11W005 000 2 |
| Gender: | Male |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 5 |
| Mount Type: | Panel Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP67 |
| Mating Type: | Screw |
| Shielded: | Yes |
| Wire Size: | 28 - 18 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 300 V |
| SKU: | AMEC091 11W005 000 2 |
C091 11W005 000 2
Specifications
Detailed Description

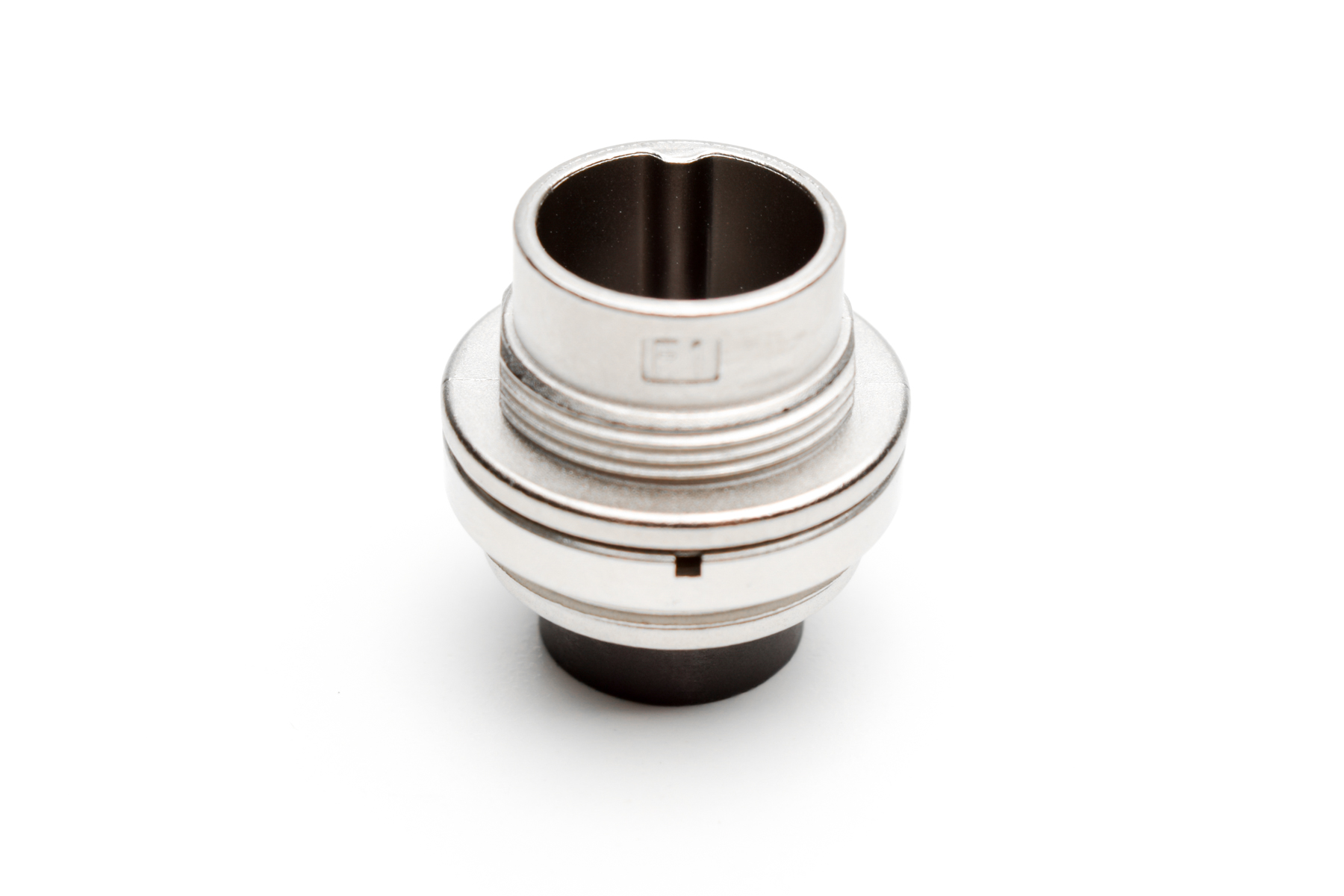

Introducing the C091 11W005 000 2, a high-performance FRONT MOUNTING MALE METAL RECE connector designed for rugged applications. With a durable Die Cast Zinc housing, this connector ensures reliable performance in harsh environments. Featuring 5 contacts and a panel mount design, it offers secure and stable connectivity. The Crimp termination method guarantees easy installation. With a wide operating temperature range of -40°C to 100°C and an IP67 rating, it is suitable for use in diverse industrial settings. The screw mating type and shielded construction enhance signal integrity. Accommodating wire sizes from 28 to 18 AWG, it can handle currents up to 7A and voltages up to 300V. Ideal for Circular DIN Connectors and other hi-rel applications, the C091 11W005 000 2 is a versatile and dependable choice for your connectivity needs.
