| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 11W008 000 2 |
| Gender: | Male |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 8 |
| Mount Type: | Panel Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP67 |
| Mating Type: | Screw |
| Shielded: | Yes |
| Wire Size: | 28 - 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 100 V |
| SKU: | AMEC091 11W008 000 2 |
C091 11W008 000 2
Specifications
Detailed Description

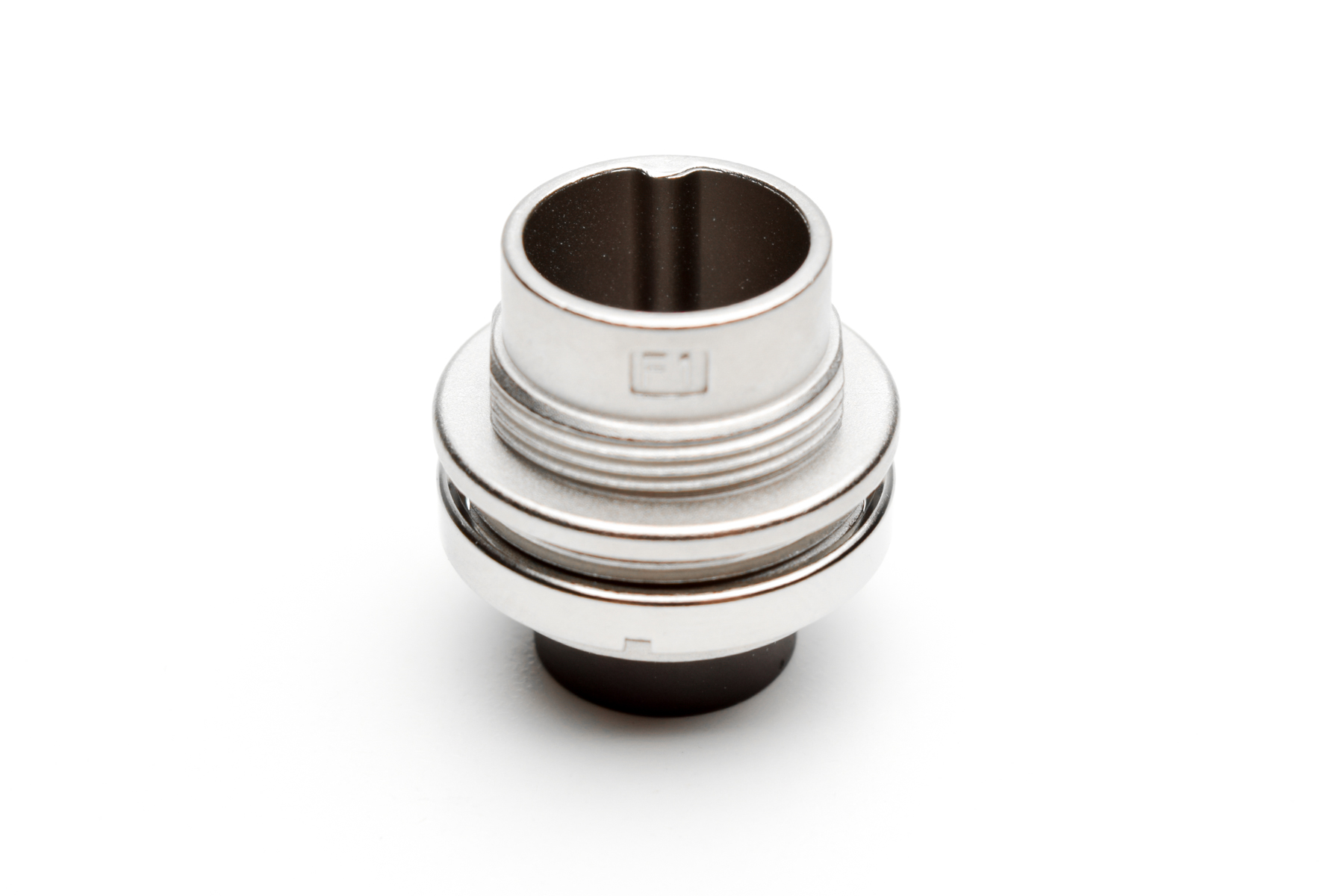

Introducing the C091 11W008 000 2, a robust Front Mounting Male Metal Receptacle designed for reliable connectivity in demanding environments. This connector features a durable Die Cast Zinc housing and is IP67 rated for protection against dust and water ingress. With 8 gold-plated contacts and a crimp termination method, it ensures secure and efficient signal transmission. Operating seamlessly in temperatures ranging from -40°C to 100°C, it is ideal for a wide range of applications. The screw mating type and shielded design further enhance its performance, while accommodating wire sizes from 28 to 20 AWG. With a current rating of 7A and voltage rating of 100V, this connector guarantees high-quality connectivity in Circular DIN applications. Trust in the AMEC091 for your connectivity needs.
