| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 31C004 100 2 |
| Gender: | Male |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 4 |
| Mount Type: | Panel Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP67 |
| Mating Type: | Screw |
| Mating Cycles: | 500 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 10 A |
| Voltage Rating: | 300 V |
| SKU: | AMEC091 31C004 100 2 |
C091 31C004 100 2
Specifications
Detailed Description

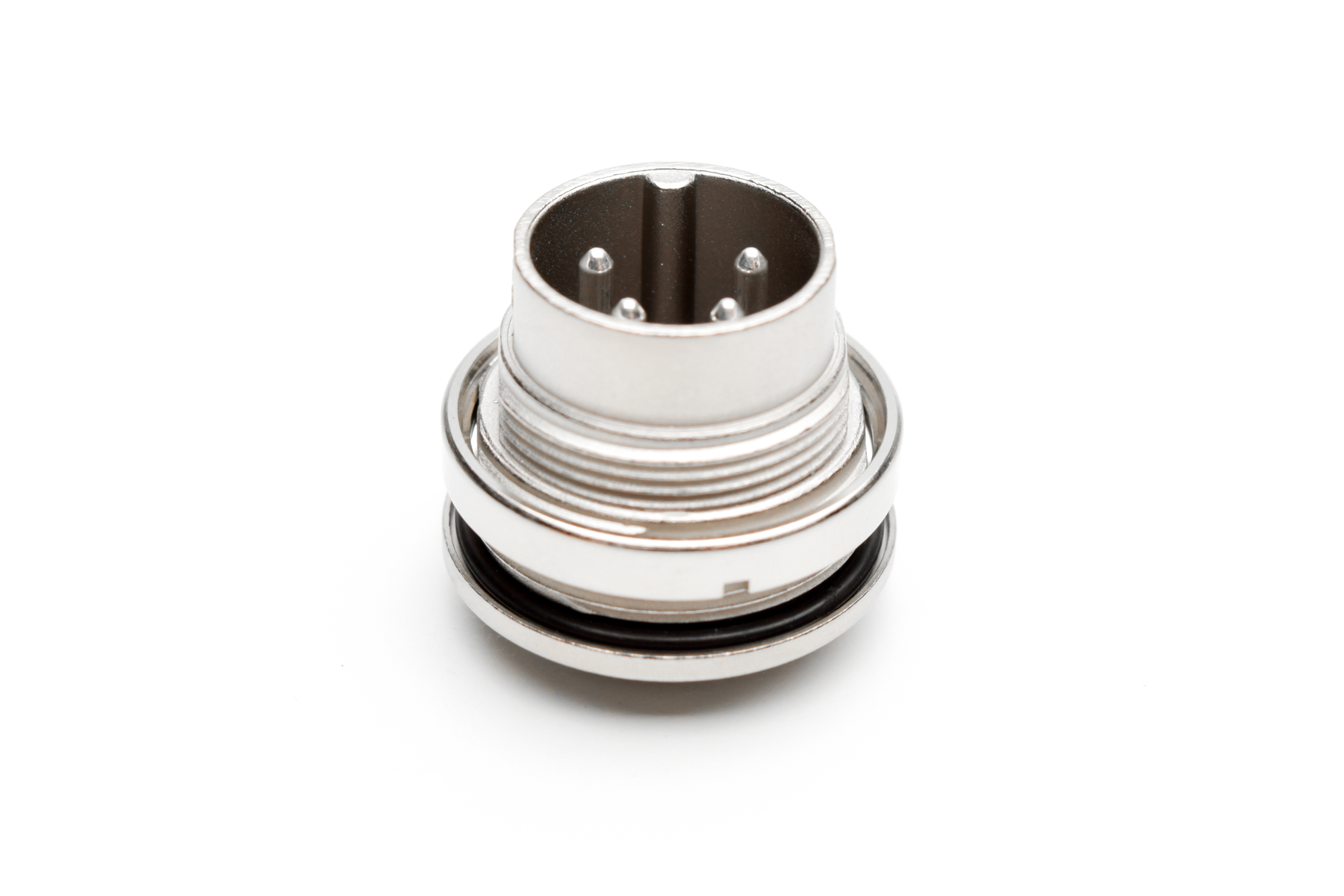

The C091 31C004 100 2 is a rugged rear mounting male metal receptacle designed for reliable connectivity in harsh environments. Constructed of durable die-cast zinc with an IP67 rating, this connector ensures protection against dust and water ingress, making it ideal for use in industrial and outdoor applications. With four contacts and a maximum operating temperature of 100°C, it provides secure and efficient signal transmission even in demanding conditions. Featuring a panel mount design and solder termination method, installation is simple and secure. The silver contact plating offers excellent conductivity, while the shielded housing minimizes interference. With a mating cycle of 500 and a current rating of 10A at 300V, this connector guarantees long-term performance. Suitable for 20 AWG wire, it meets the stringent requirements of circular DIN connectors, making it a reliable choice for high-quality connectivity solutions.
