| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 31C006 100 2 |
| Gender: | Male |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 6 |
| Mount Type: | Panel Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP67 |
| Mating Type: | Screw |
| Mating Cycles: | 500 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 300 V |
| SKU: | AMEC091 31C006 100 2 |

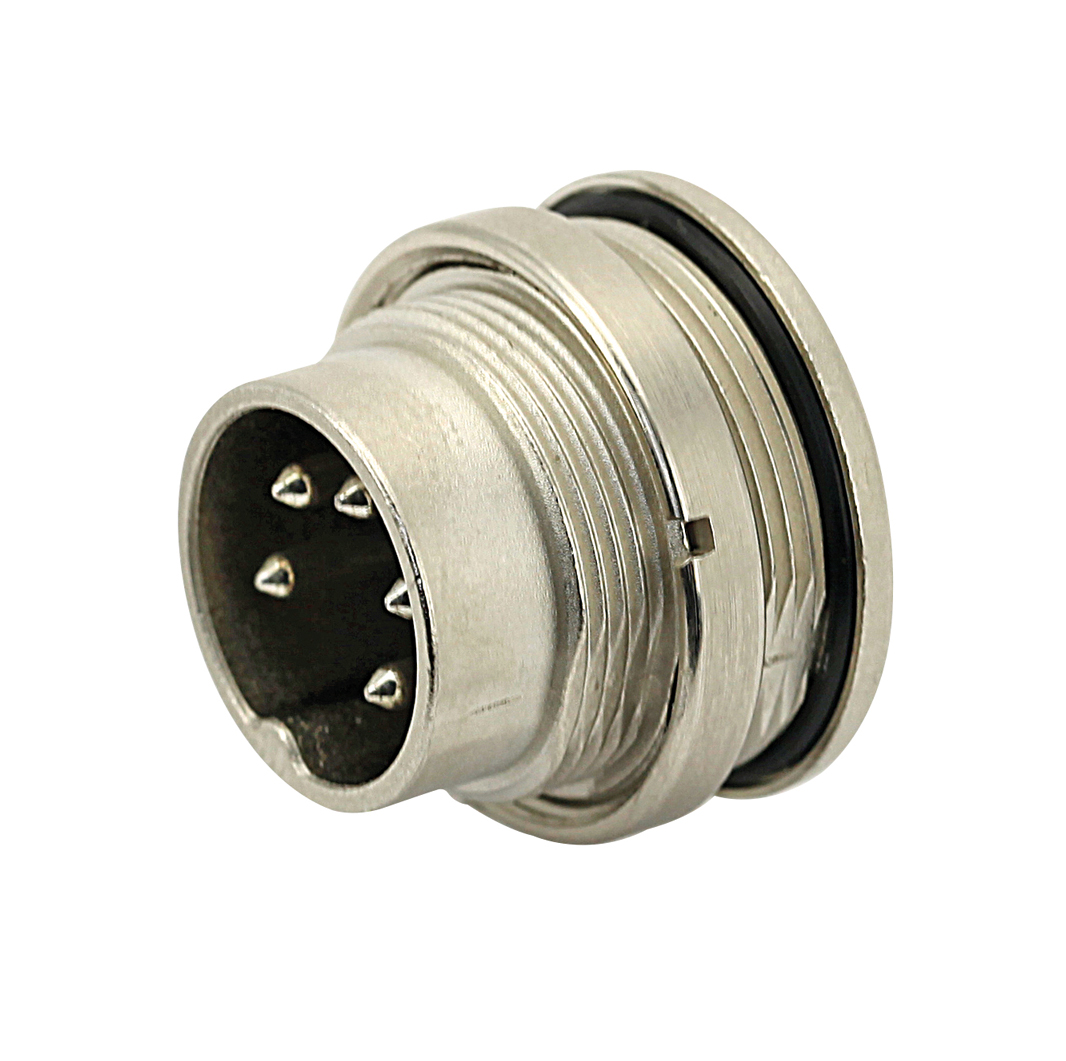

C091 31C006 100 2
Specifications
Detailed Description
Enhance your connectivity with the C091 31C006 100 2 Rear Mounting Male Metal Receptacle. Designed for durability and reliability, this panel-mount connector features a die-cast zinc housing, ensuring secure installation in various industrial settings. With six silver-plated contacts, it offers efficient signal transmission with a current rating of 7A and a voltage rating of 300V. Meeting IP67 standards for dust and water resistance, this connector is suitable for outdoor and harsh environment applications. Its solder termination method guarantees a stable connection, while the 20AWG wire size accommodates standard wiring needs. RoHS compliant and rated for operating temperatures ranging from -40°C to 100°C, this connector prioritizes both performance and environmental responsibility. Whether you're in telecommunications, aerospace, or automation, the C091 31C006 100 2 is the ideal solution for your circular DIN connector requirements.
