| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 31D007 201 2 |
| Color: | Nickel |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 7 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP69K |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 1000 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 250 V, 300 V |
| SKU: | AMEC091 31D007 201 2 |
C091 31D007 201 2
Specifications
Detailed Description

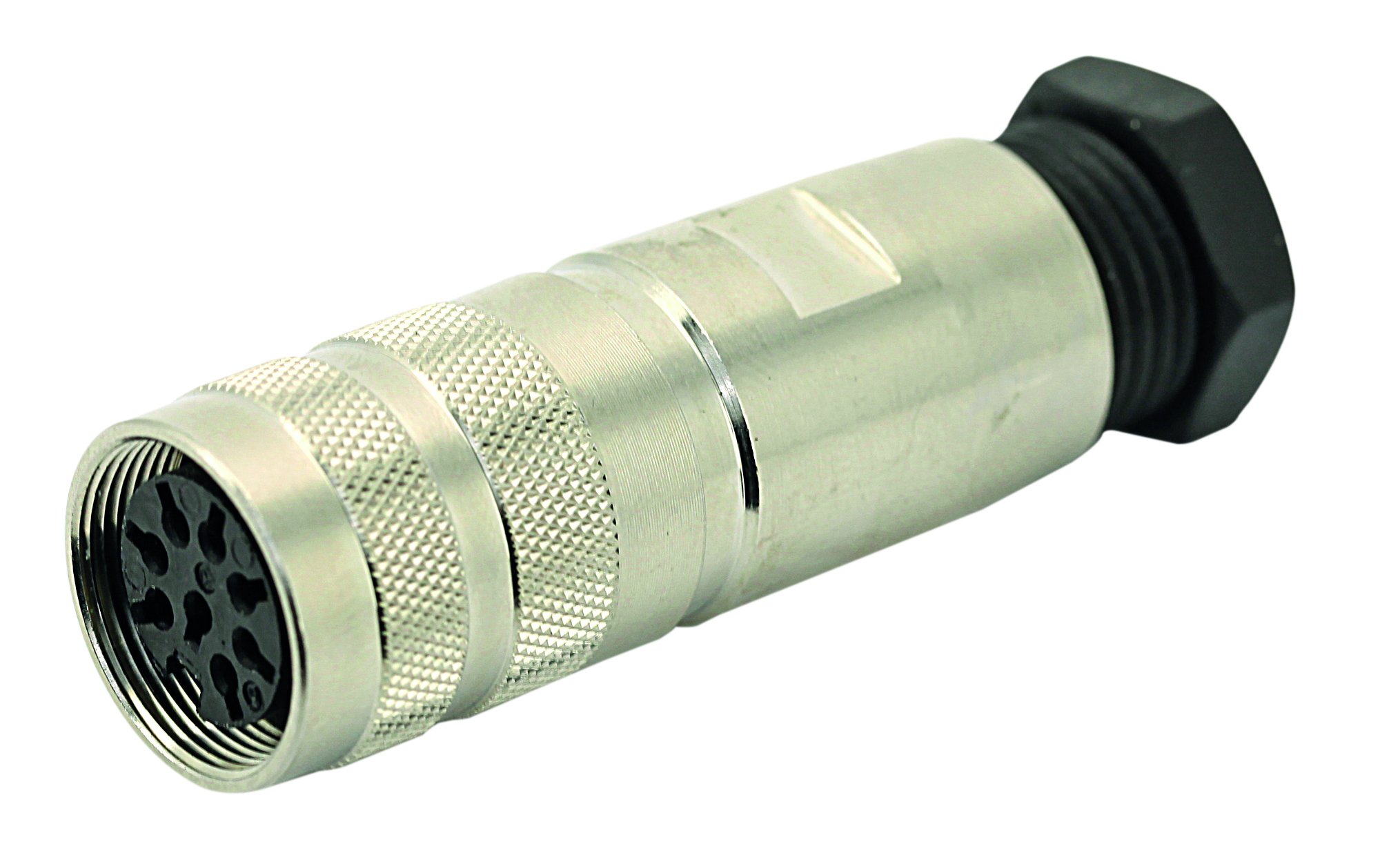

Introducing the C091 31D007 201 2 Female Cable Connector, crafted for high-performance connectivity in industrial environments. This rugged connector, featuring a durable Nickel housing made of Die Cast Zinc, guarantees reliable operation even in extreme conditions with an IP69K rating. With seven gold-plated contacts and a solder termination method, it ensures secure and efficient signal transmission. The M16 shell size and straight mount angle make installation easy, while its 1000 mating cycles guarantee long-term durability. Shielded for enhanced signal integrity, this connector accommodates 20 AWG wire, offering a current rating of 7A and voltage ratings of 250V and 300V. Ideal for Circular DIN applications, it's a top choice for demanding connectivity needs. (126 words)
