| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 31D012 200 2 |
| Color: | Nickel |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 12 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP69K |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 1000 cycle |
| Shielded: | Yes |
| Wire Size: | 24 AWG |
| Current Rating: | 3 A |
| Voltage Rating: | 150 V, 60 V |
| SKU: | AMEC091 31D012 200 2 |

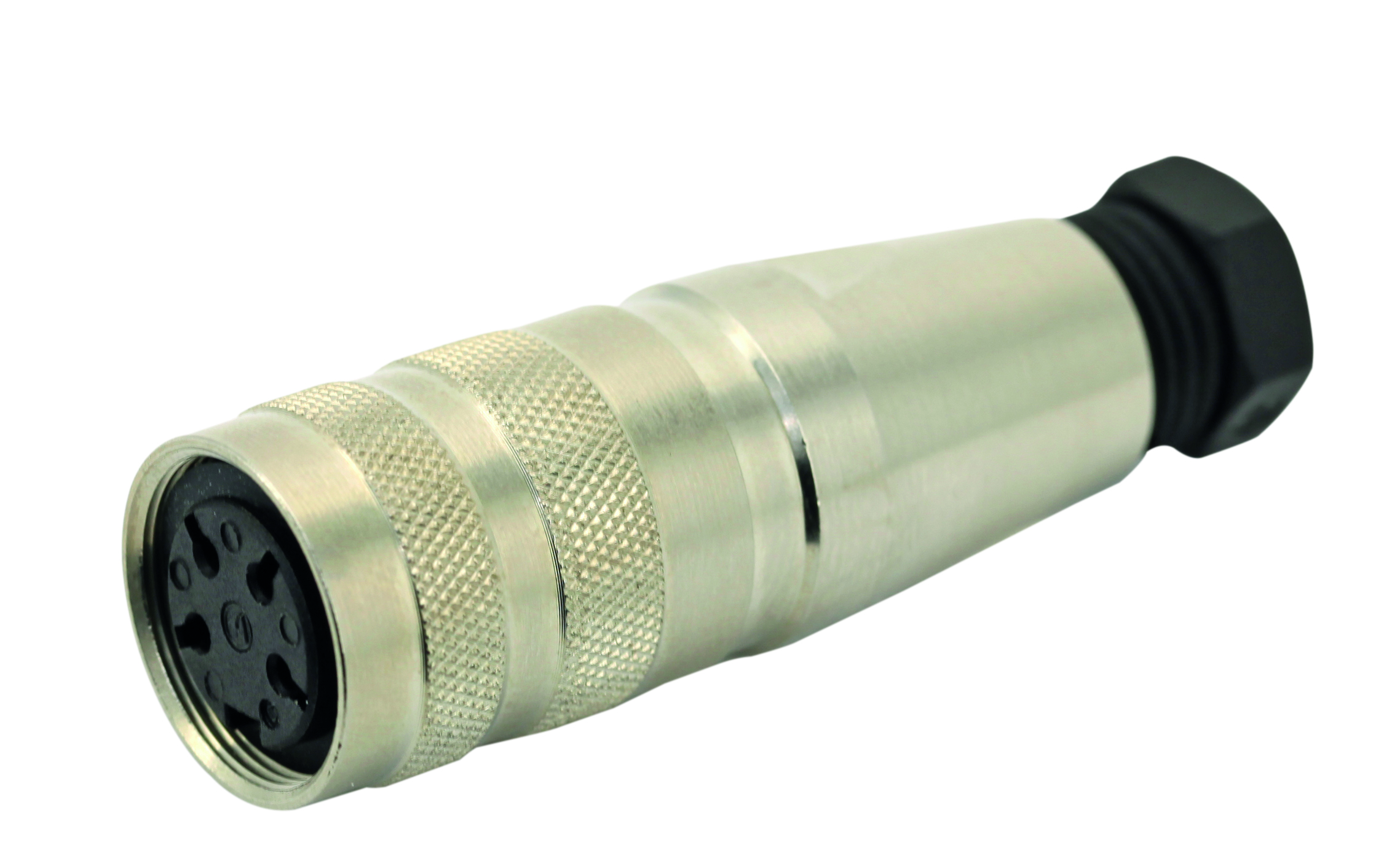

C091 31D012 200 2
Specifications
Detailed Description
Introducing the Female Cable Connector 12way C091D, a durable and reliable solution for your connectivity needs. Constructed with a robust die-cast zinc housing and featuring gold-plated contacts, this connector ensures optimal performance even in harsh environments. With a maximum operating temperature of 100°C and an IP69K rating for water and dust resistance, it is suitable for a wide range of applications. The straight mount design with a screw mating type offers easy installation, while the shielded construction provides added protection against electromagnetic interference. RoHS compliant and with a voltage rating of 150V, this connector meets the highest standards for quality and safety. Perfect for use in Circular DIN Connectors, it is a must-have component for any professional setup.
