| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 31D014 201 2 |
| Color: | Nickel |
| Gender: | Female |
| Shielded: | Yes |
| IP Rating: | IP69K |
| Wire Size: | 24 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 1000 cycle |
| Current Rating: | 3 A |
| Voltage Rating: | 150 V, 60 V |
| Contact Plating: | Gold |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 14 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMEC091 31D014 201 2 |
C091 31D014 201 2
Specifications
Detailed Description

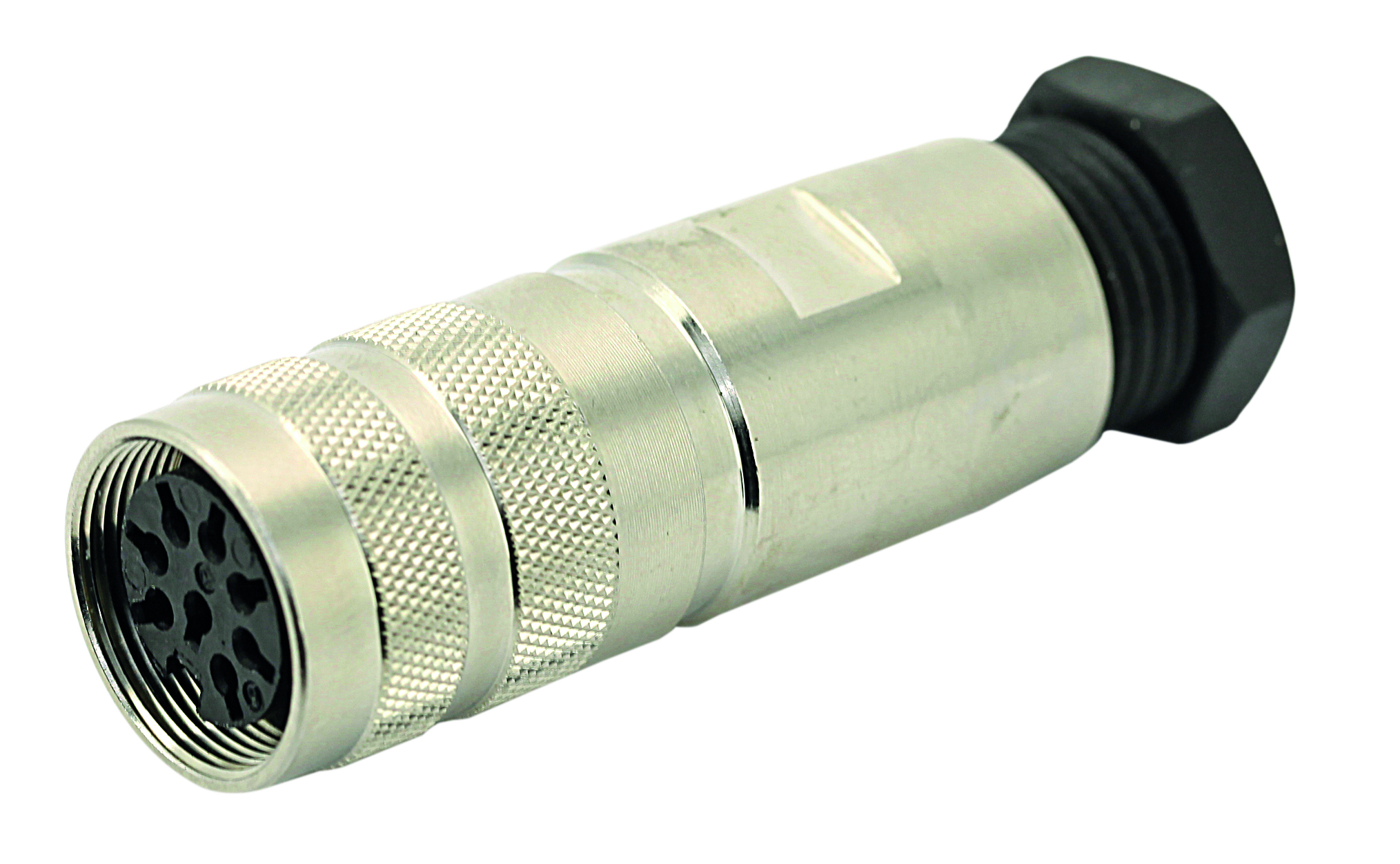

Introducing the C091 31D014 201 2 Female Cable Connector 14, a high-performance connectivity solution designed for demanding industrial applications. With a rugged die-cast zinc housing and IP69K rating, this connector ensures reliable operation in harsh environments, from extreme temperatures of -40°C to 100°C. Featuring 14 gold-plated contacts for superior conductivity, it guarantees efficient signal transmission. The straight screw mating type and cable mount design make installation easy and secure, while the shielded construction prevents interference. With a current rating of 3A and voltage rating of 150V, this connector is suitable for a wide range of power and signal applications. RoHS compliant and with 1000 mating cycles, it offers long-lasting durability and environmental sustainability. Don't compromise on quality and performance - choose the AMEC091 for your critical connectivity needs.
