| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 31F012 100 2 |
| Color: | Nickel |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 12 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP69K |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Right Angle |
| Mating Cycles: | 500 cycle |
| Shielded: | Yes |
| Wire Size: | 24 AWG |
| Current Rating: | 3 A |
| Voltage Rating: | 150 V, 60 V |
| SKU: | AMEC091 31F012 100 2 |
C091 31F012 100 2
Specifications
Detailed Description

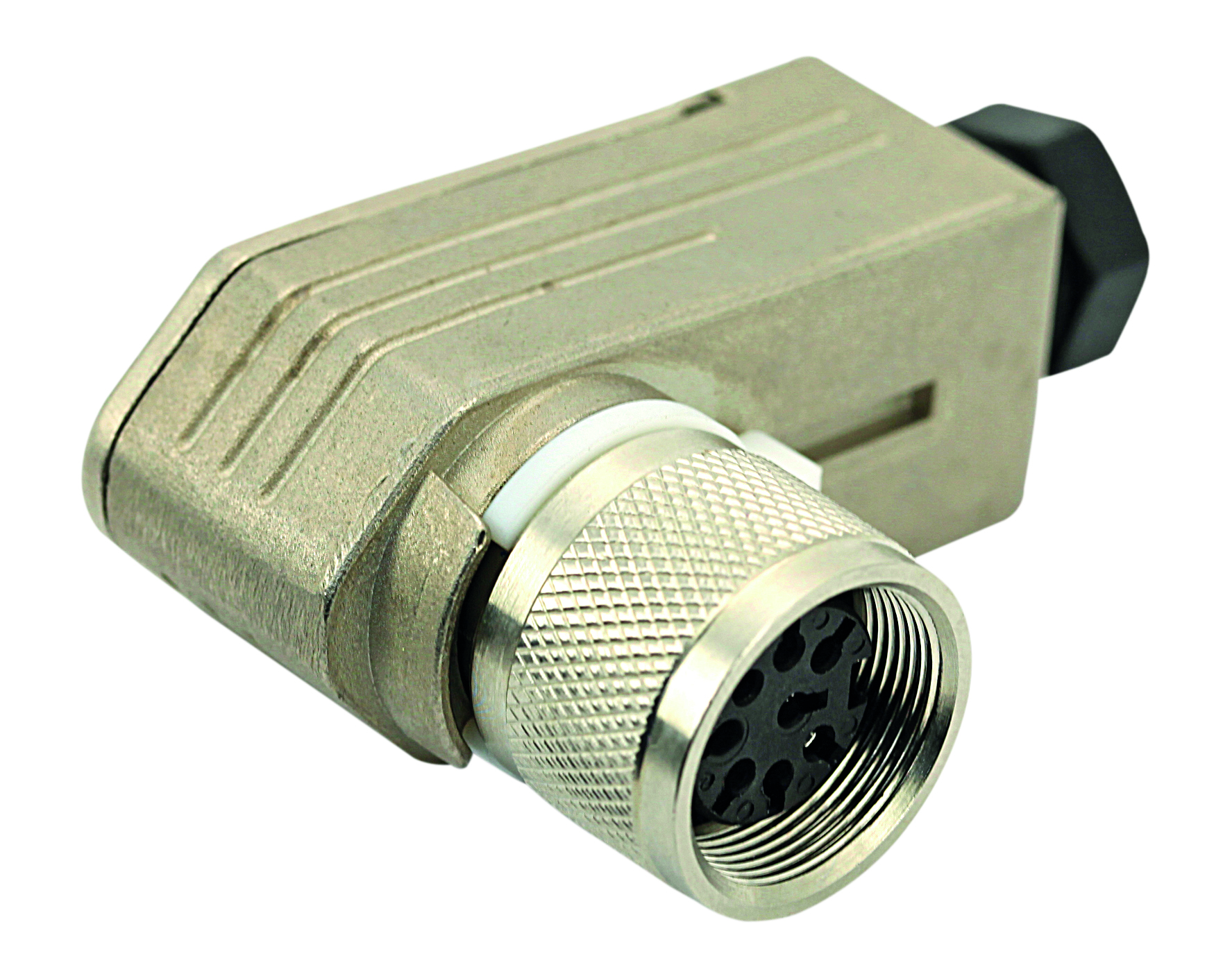

The C091 31F012 100 2 is a high-performance female cable connector designed for industrial applications. With a rugged die-cast zinc housing and nickel color finish, this connector ensures durability and reliability in harsh environments. Featuring 12 silver-plated contacts, it guarantees excellent conductivity and signal transmission. Suitable for cable mounting with a right-angle screw mating type, it offers secure and efficient connectivity. With an IP69K rating, it provides protection against dust, water, and high-pressure cleaning. RoHS compliant and rated for a maximum operating temperature of 100°C, this connector is not only environmentally friendly but also capable of withstanding extreme conditions. Perfect for use in circular DIN connector systems, it meets the demands of various industries with its 3A current rating and 150V/60V voltage rating. Trust in the C091 31F012 100 2 for top-quality performance in your connectivity solutions.
