| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 31F014 101 2 |
| Color: | Nickel |
| Gender: | Female |
| Shielded: | Yes |
| IP Rating: | IP69K |
| Wire Size: | 24 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Right Angle |
| Mating Cycles: | 500 cycle |
| Current Rating: | 3 A |
| Voltage Rating: | 150 V, 60 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 14 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMEC091 31F014 101 2 |
C091 31F014 101 2
Specifications
Detailed Description

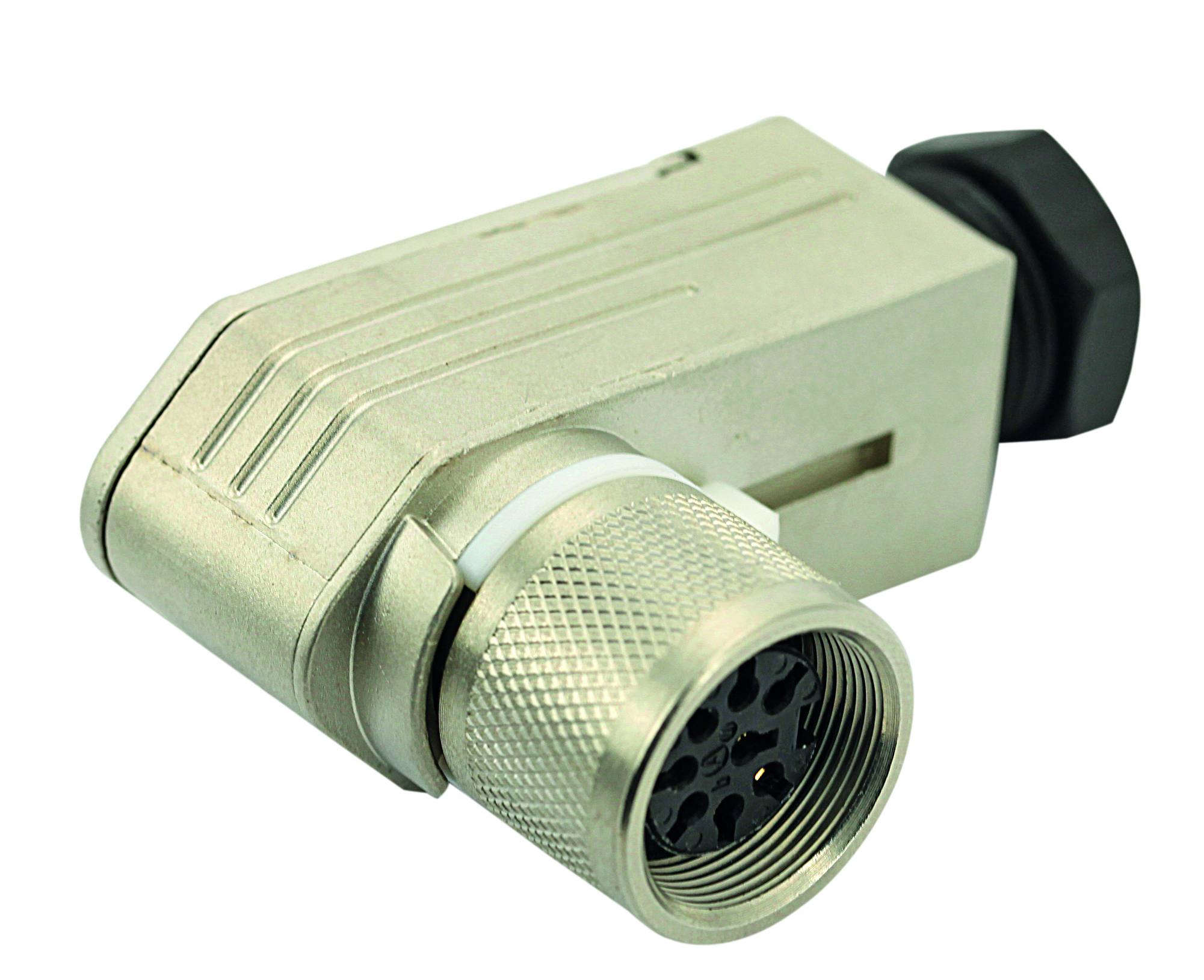

Introducing the C091 31F014 101 2, a high-performance female cable connector designed for industrial applications. Featuring a durable die-cast zinc housing with a sleek nickel finish, this connector ensures reliable connectivity in harsh environments. With 14 contacts and a cable mount design, it offers secure and efficient solder termination. The silver contact plating guarantees excellent conductivity, while its IP69K rating certifies protection against dust and water ingress. Engineered for versatility, it is suitable for use in a wide range of machinery and equipment. The M16 shell size, screw mating type, and right-angle mount angle provide ease of installation. With a 500-cycle mating lifespan, this connector is built to withstand repeated use. Rated for 3A at 150V and 60V, it meets stringent performance standards. Ideal for circular DIN connector applications, it is a dependable choice for demanding industrial environments.
