| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 31F105 100 2 |
| Color: | Nickel |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 5 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP69K |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Right Angle |
| Mating Cycles: | 500 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 100 V, 250 V |
| SKU: | AMEC091 31F105 100 2 |

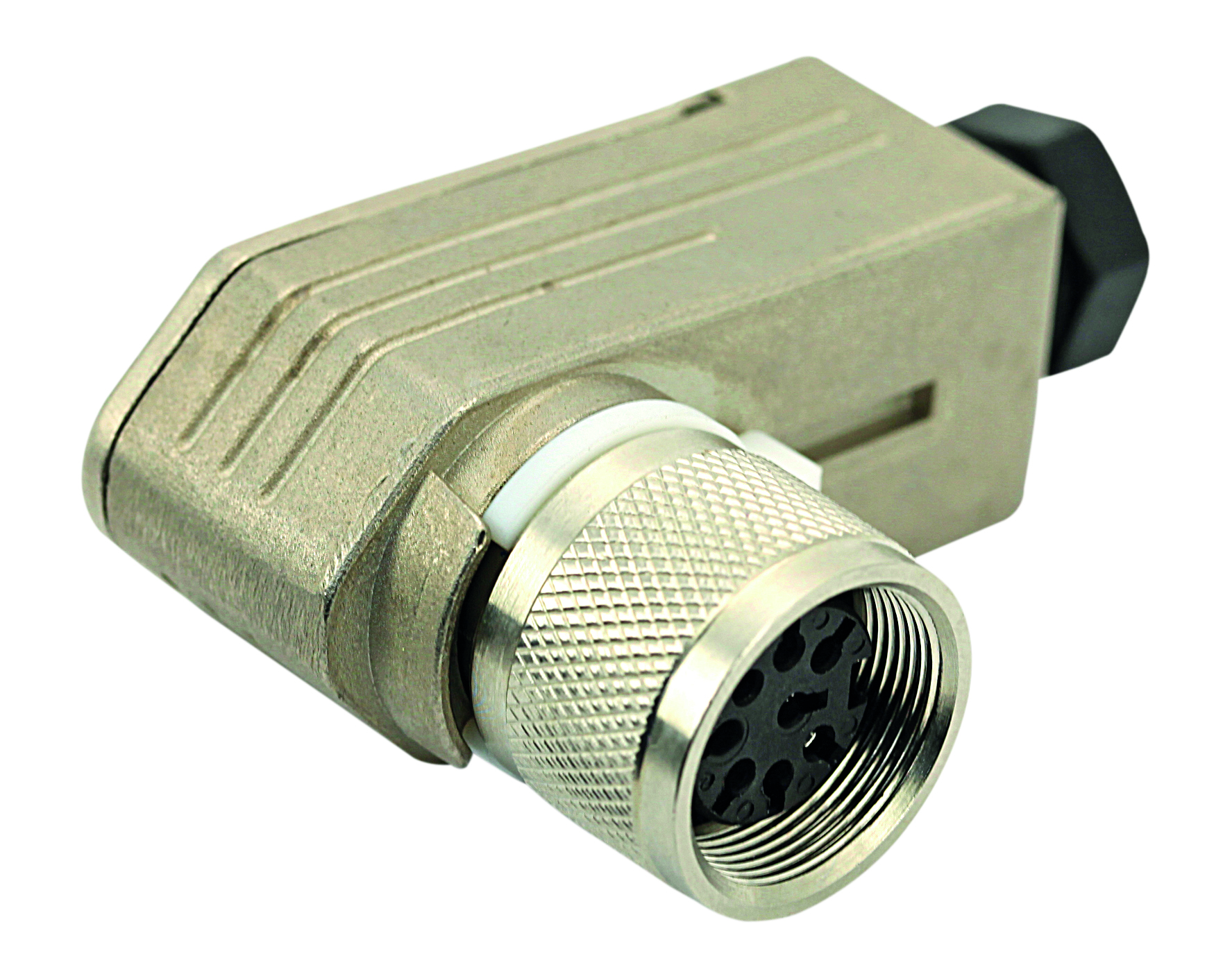

C091 31F105 100 2
Specifications
Detailed Description
Introducing the C091 31F105 100 2, a high-performance Female Cable Connector designed for rugged environments. Featuring a Nickel housing and Die Cast Zinc construction, this connector ensures durability and reliability. With 5 contacts and a cable mount termination method, it offers secure connectivity for industrial applications. Silver contact plating guarantees excellent conductivity, while meeting RoHS compliance. Operating in temperatures ranging from -40°C to 100°C and boasting an IP69K rating for waterproofing, this connector is suitable for harsh conditions. The M16 shell size, right-angle mount, and screw mating type make installation easy. Shielded design and a wire size of 20 AWG accommodate high-speed data transfer. Rated for 7A at 100-250V, it is ideal for power and signal transmission. With a mating cycle of 500, this connector ensures long-term performance. In the category of Circular DIN Connectors, it is a top choice for professionals seeking quality and efficiency.
