| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 31G005 100 2 |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 5 |
| Mount Type: | Panel Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP67 |
| Mating Type: | Screw |
| Mating Cycles: | 500 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 300 V |
| SKU: | AMEC091 31G005 100 2 |

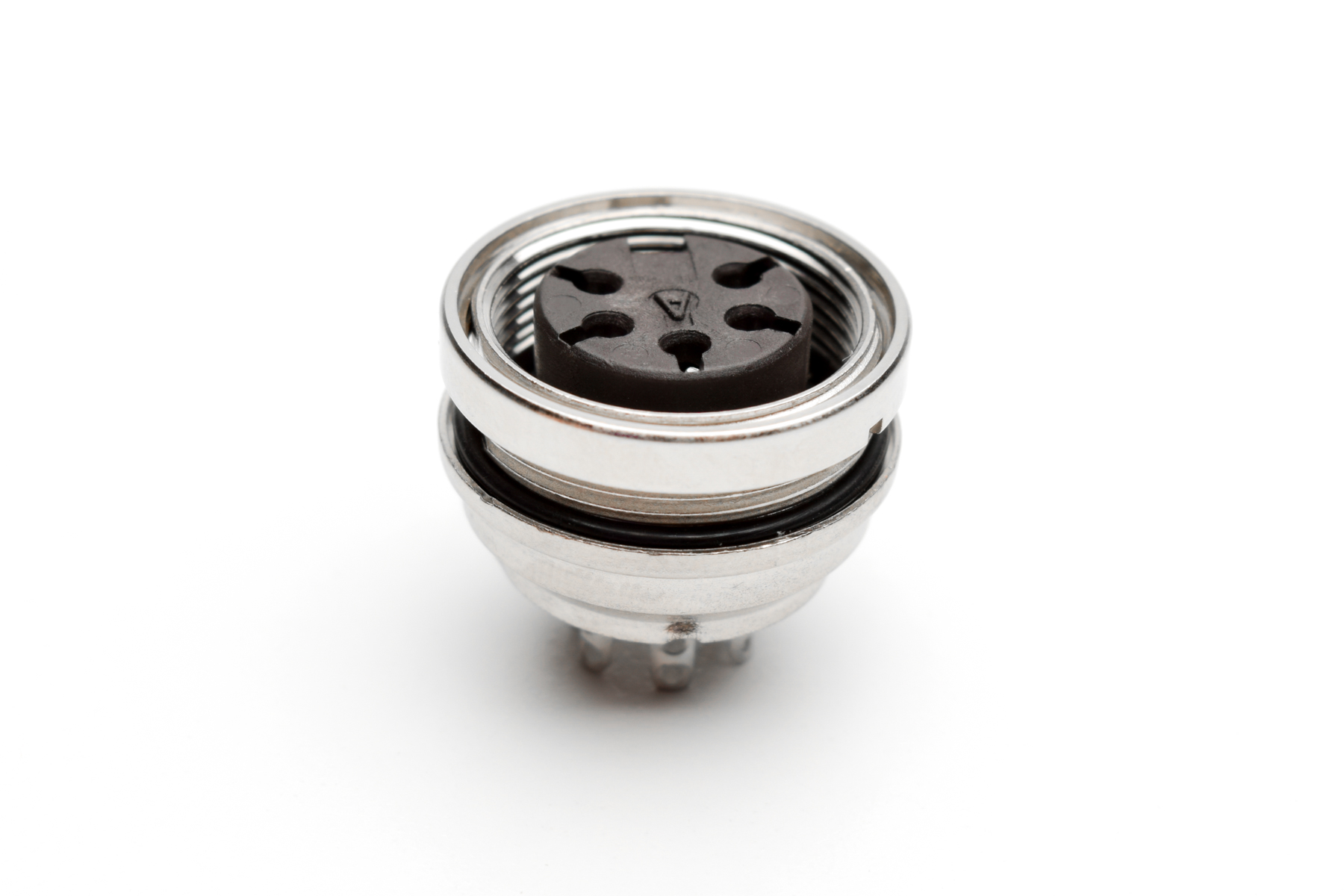

C091 31G005 100 2
Specifications
Detailed Description
Introducing the C091 31G005 100 2, a high-performance Rear Mounting Female Metal REC designed for seamless connectivity in demanding environments. With a robust Die Cast Zinc housing, this connector ensures durability and reliability. Featuring 5 contacts and a Panel Mount design, it offers secure attachment for industrial applications. The Solder termination method and Silver contact plating guarantee efficient signal transmission. Operating between -40°C to 100°C and with an IP67 rating, it withstands extreme conditions. Mating through screws and with a lifespan of 500 cycles, it ensures long-term functionality. Shielded for added protection, this connector accommodates 20 AWG wire, with a current rating of 7A and voltage rating of 300V. RoHS compliant and part of the Circular DIN Connectors series, it's ideal for diverse connectivity needs.
