| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 31G107 100 2 |
| Gender: | Female |
| Shielded: | Yes |
| IP Rating: | IP67 |
| Wire Size: | 20 AWG |
| Mount Type: | Panel Mount |
| Mating Type: | Screw |
| Mating Cycles: | 500 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 100 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 7 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMEC091 31G107 100 2 |
C091 31G107 100 2
Specifications
Detailed Description

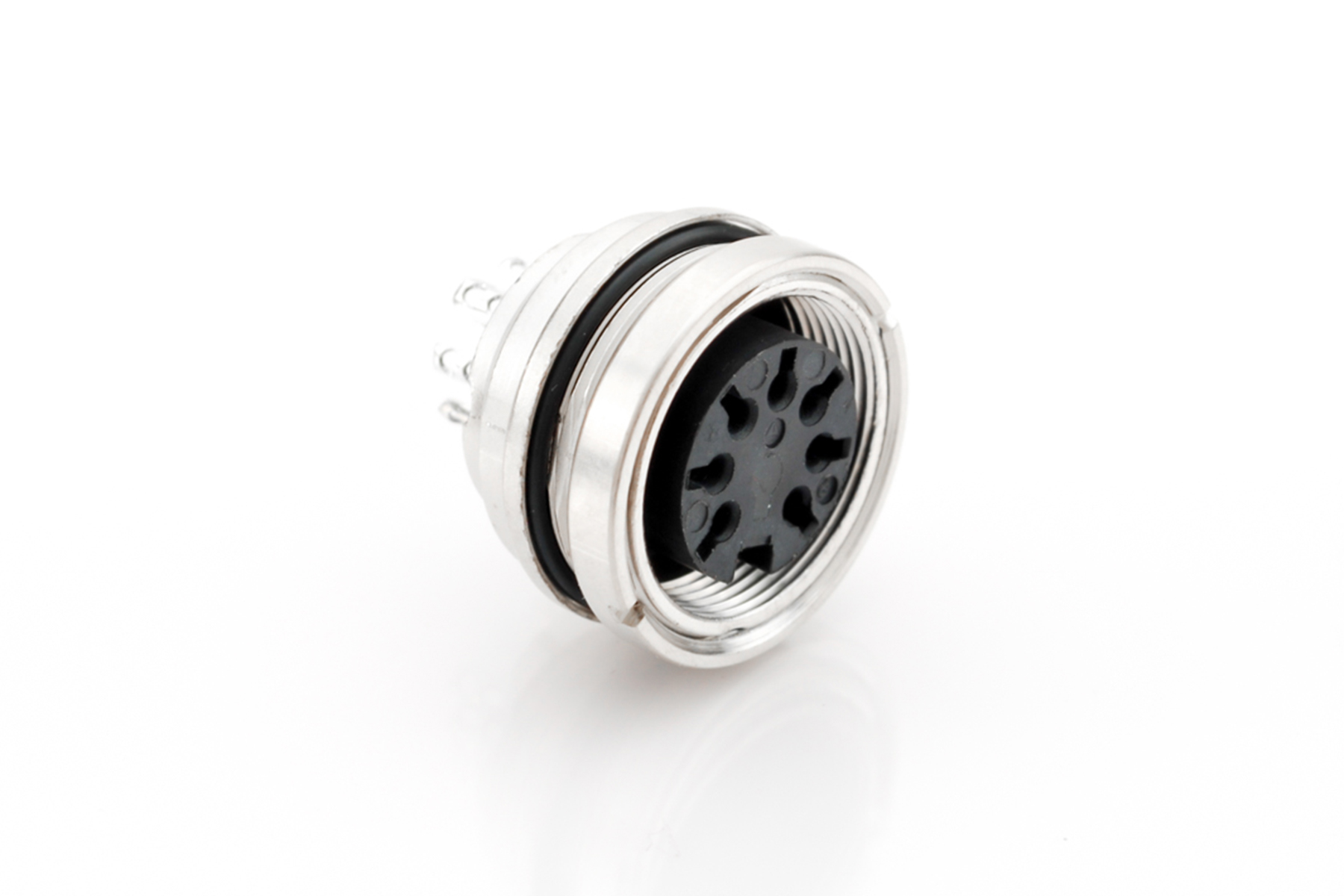

Introducing the C091 31G107 100 2, a high-performance Female Receptacle designed for demanding industrial applications. Featuring a robust Die Cast Zinc housing, this connector ensures durability in harsh environments. With 7 contacts and a Panel Mount design, it offers reliable connectivity. The Silver-plated contacts provide excellent conductivity, while the IP67 rating guarantees protection against dust and water ingress. Perfect for use with 20 AWG wire, it has a current rating of 7A and a voltage rating of 100V, making it ideal for power transmission. RoHS compliant and capable of 500 mating cycles, this connector combines reliability and performance. Upgrade your circular DIN connections with the C091 31G107 100 2.
