| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 31H003 100 4 |
| Color: | Nickel |
| Gender: | Male |
| Shielded: | Yes |
| IP Rating: | IP69K |
| Wire Size: | 20 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Current Rating: | 10 A |
| Voltage Rating: | 250 V, 300 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 3 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMEC091 31H003 100 4 |

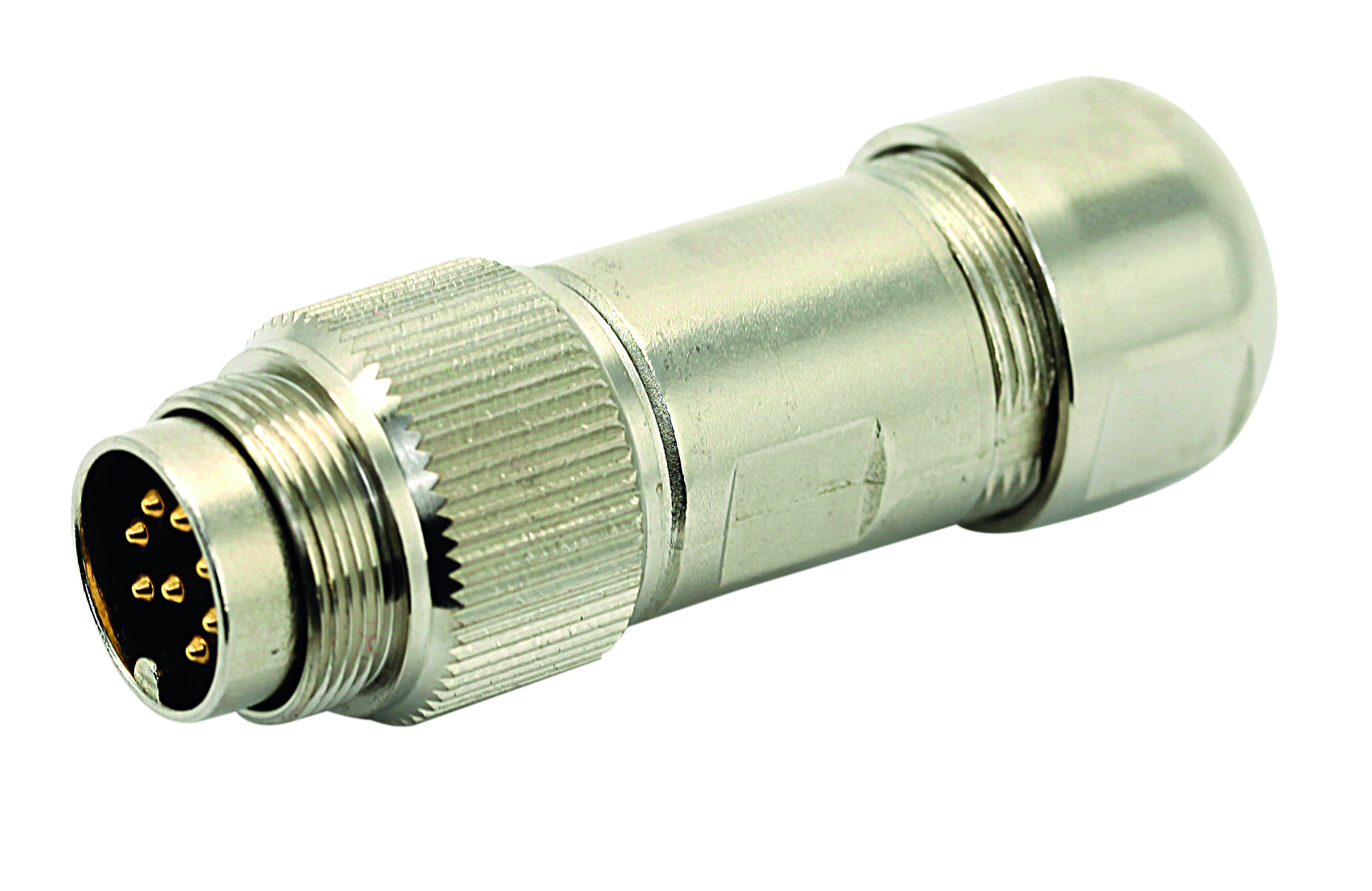

C091 31H003 100 4
Specifications
Detailed Description
The C091 31H003 100 4 is a high-performance male cable connector designed for demanding industrial applications. Featuring a robust die-cast zinc housing in a sleek nickel finish, this connector ensures durability and reliability in harsh environments. With three silver-plated contacts and a secure cable mount termination method, it guarantees excellent conductivity and signal integrity. Operating flawlessly in temperatures ranging from -40°C to 100°C and achieving an IP69K rating for water and dust resistance, it is suitable for outdoor and rugged use. The M16 shell size and straight mount angle make installation easy, while the 500 mating cycle lifespan ensures long-term functionality. Shielded for added protection, this connector accommodates 20 AWG wire and offers a current rating of 10A and voltage ratings of 250V and 300V, meeting the needs of diverse connectivity applications. In compliance with industry standards for circular DIN connectors, it is a reliable choice for professionals in the field.
