| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 31H105 100 2 |
| Color: | Nickel |
| Gender: | Male |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 5 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP69K |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 100 V, 250 V |
| SKU: | AMEC091 31H105 100 2 |
C091 31H105 100 2
Specifications
Detailed Description

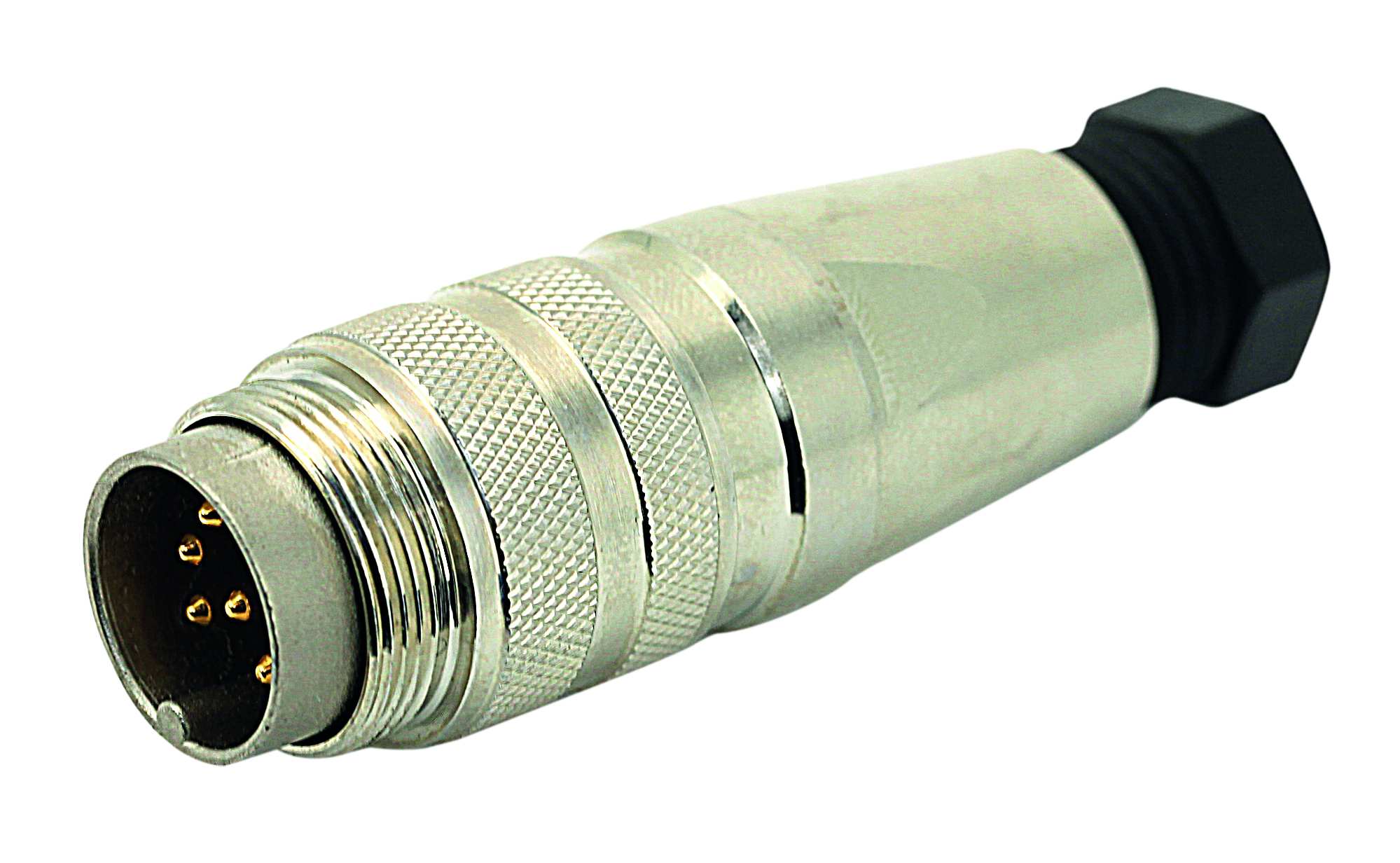

Introducing the C091 31H105 100 2 Circular DIN Connector, a high-performance solution for industrial connectivity. This male connector, with a sleek Nickel finish, boasts a robust Die Cast Zinc housing that ensures durability in diverse operating environments. Featuring 5 silver-plated contacts and a solder termination method, it guarantees secure and reliable connections. With a wide temperature range of -40°C to 100°C and IP69K rating, it's suitable for even the harshest conditions. The M16 shell size and straight mount angle facilitate easy installation, while the shielded design and 20 AWG wire size ensure optimal signal integrity. With a current rating of 7A and voltage rating of 100V/250V, this connector is ideal for power and data transmission applications. While not RoHS compliant, its quality and performance make it a standout choice in the world of circular connectors. Trust in the AMEC091 for seamless connectivity in your industrial projects.
