| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 31K005 100 2 |
| Color: | Nickel |
| Gender: | Male |
| Shielded: | Yes |
| IP Rating: | IP69K |
| Wire Size: | 20 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Right Angle |
| Mating Cycles: | 500 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 250 V, 300 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 5 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMEC091 31K005 100 2 |
C091 31K005 100 2
Specifications
Detailed Description

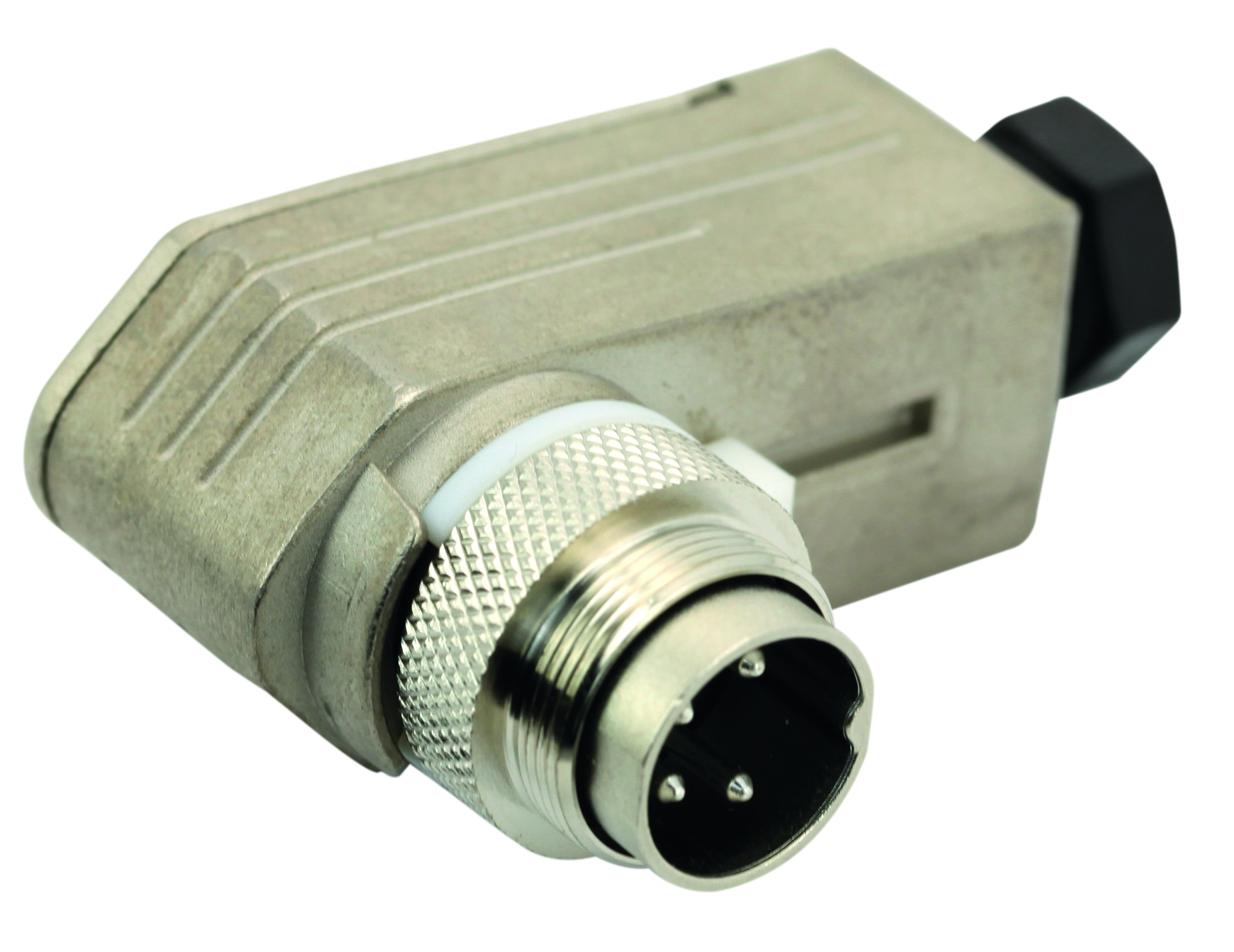

Introducing the C091 31K005 100 2, a high-performance male cable connector designed for seamless connectivity in demanding environments. With a sturdy die-cast zinc housing and IP69K rating, this connector ensures reliable operation even in harsh conditions. Its nickel color and M16 shell size offer a sleek and compact design suitable for various applications. Featuring five silver-plated contacts and a solder termination method, it guarantees secure and efficient signal transmission. The right-angle mount type and screw mating type provide easy installation, while the shielded design and 20 AWG wire size offer enhanced protection against interference. With a maximum operating temperature of 100°C and a wide voltage rating of 250-300V, this connector is ideal for industrial and commercial use. Trust in the AMEC091 for rugged performance and seamless connectivity.
