| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 31S107 100 2 |
| Gender: | Male |
| Shielded: | Yes |
| IP Rating: | IP67 |
| Wire Size: | 20 AWG |
| Mount Type: | Panel Mount |
| Mating Type: | Screw |
| Mating Cycles: | 500 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 100 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 7 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMEC091 31S107 100 2 |
C091 31S107 100 2
Specifications
Detailed Description

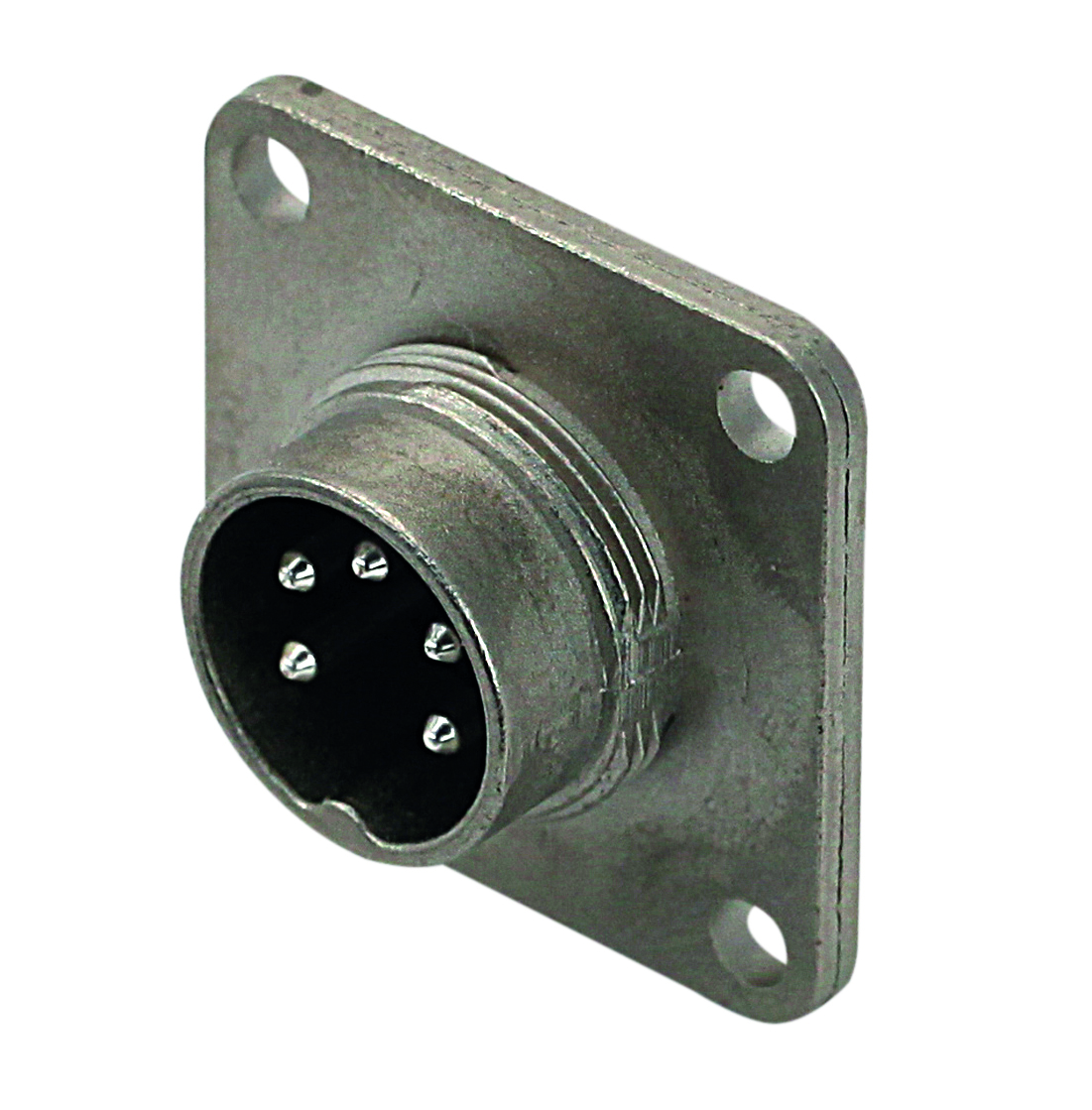

Introducing the C091 31S107 100 2, a rugged and reliable flange mount male metal receptacle designed for demanding applications. With a die-cast zinc housing and silver contact plating, it ensures secure connectivity even in harsh environments. Featuring seven contacts and a panel mount configuration, it offers versatile installation options. Its IP67 rating guarantees protection against dust and water ingress, while its shielded design enhances signal integrity. Suitable for use with 20 AWG wire, it can handle currents up to 7A and voltages up to 100V. With a wide operating temperature range from -40°C to 100°C and a mating cycle durability of 500 cycles, this connector is built to withstand the test of time. Perfect for industrial and commercial use, it belongs to the Circular DIN Connectors category, meeting the highest standards of quality and performance. Upgrade your connectivity solutions with the C091 31S107 100 2.
