| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 31T005 100 2 |
| Gender: | Female |
| Shielded: | Yes |
| IP Rating: | IP67 |
| Wire Size: | 20 AWG |
| Mount Type: | Panel Mount |
| Mating Type: | Screw |
| Mating Cycles: | 500 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 300 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 5 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMEC091 31T005 100 2 |

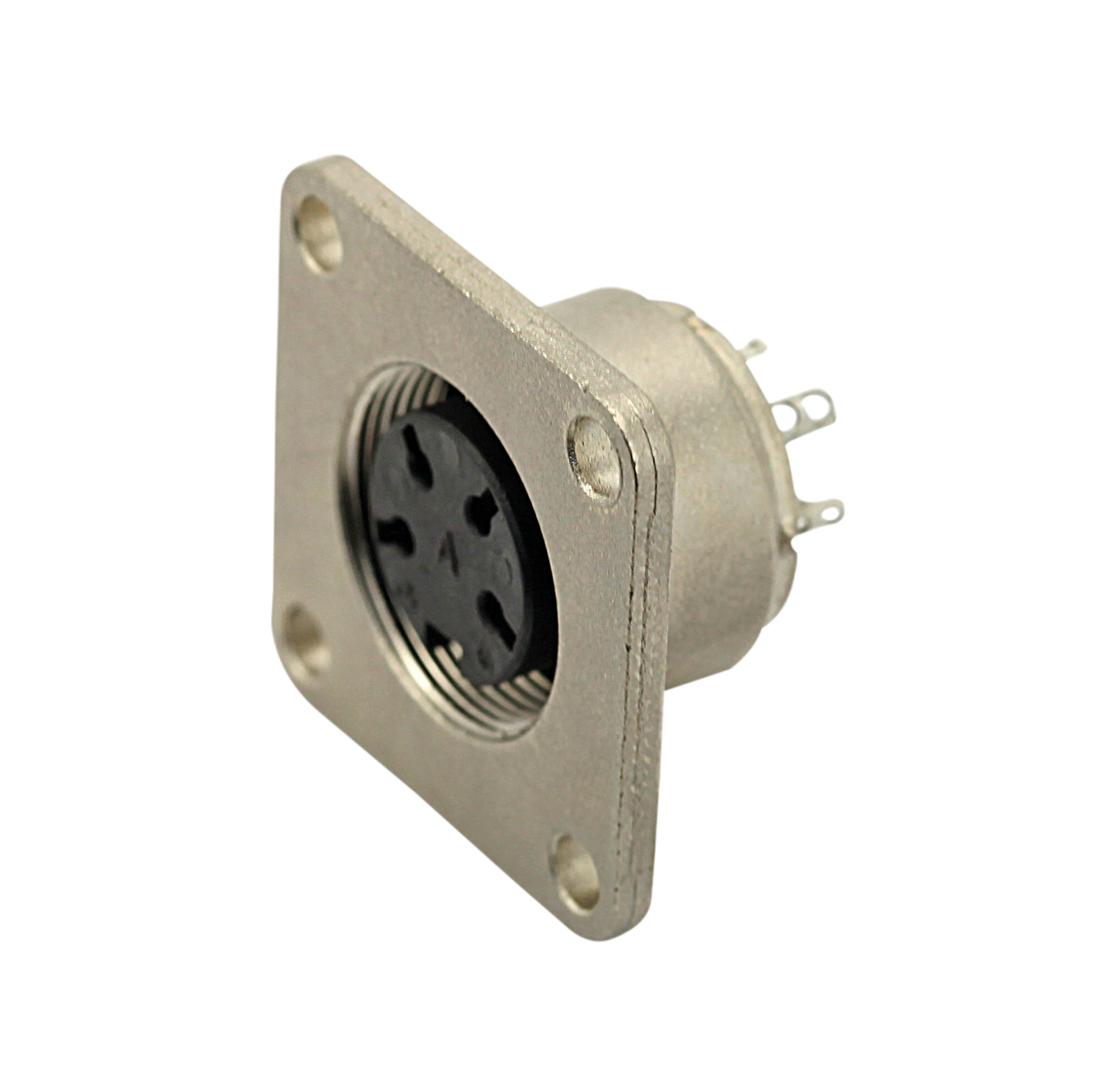

C091 31T005 100 2
Specifications
Detailed Description
Introducing the C091 31T005 100 2, a high-performance Flange Mount Female Metal Receptacle designed for robust connectivity in demanding environments. Constructed with durable Die Cast Zinc housing, this connector ensures reliable operation even in harsh conditions. With 5 contacts and a panel mount configuration, it offers secure and stable connections. The Silver contact plating guarantees excellent conductivity, while the IP67 rating provides protection against dust and water ingress. Featuring a solder termination method, it is easy to install. Rated for temperatures ranging from -40°C to 100°C and capable of handling currents up to 7A at 300V, this connector is suitable for a wide range of applications. Its shielded design and 20 AWG wire size further enhance performance. Whether for industrial machinery, telecommunications, or aerospace systems, the C091 31T005 100 2 ensures seamless connectivity. With a mating type of Screw and a durability of 500 mating cycles, it offers long-lasting performance. Experience reliable and efficient connectivity with this Circular DIN Connector.
